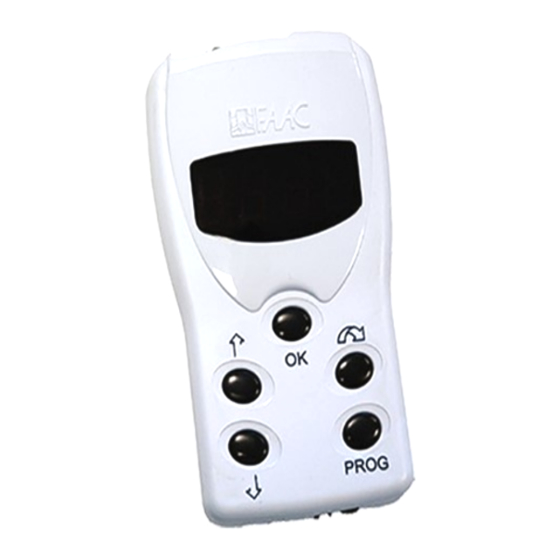

PROGRAMMER FOR SLHP DECODER
PC
RS232
RADIOCODER
Tx SLH
12Ö Ö Ö Ö Ö 24 V
dc
‡ 2.1mm
+ internal
OK
PROG
MEX2 MEX1
J4
J3
LED
J2
J1
SLHP DECODER
Connections

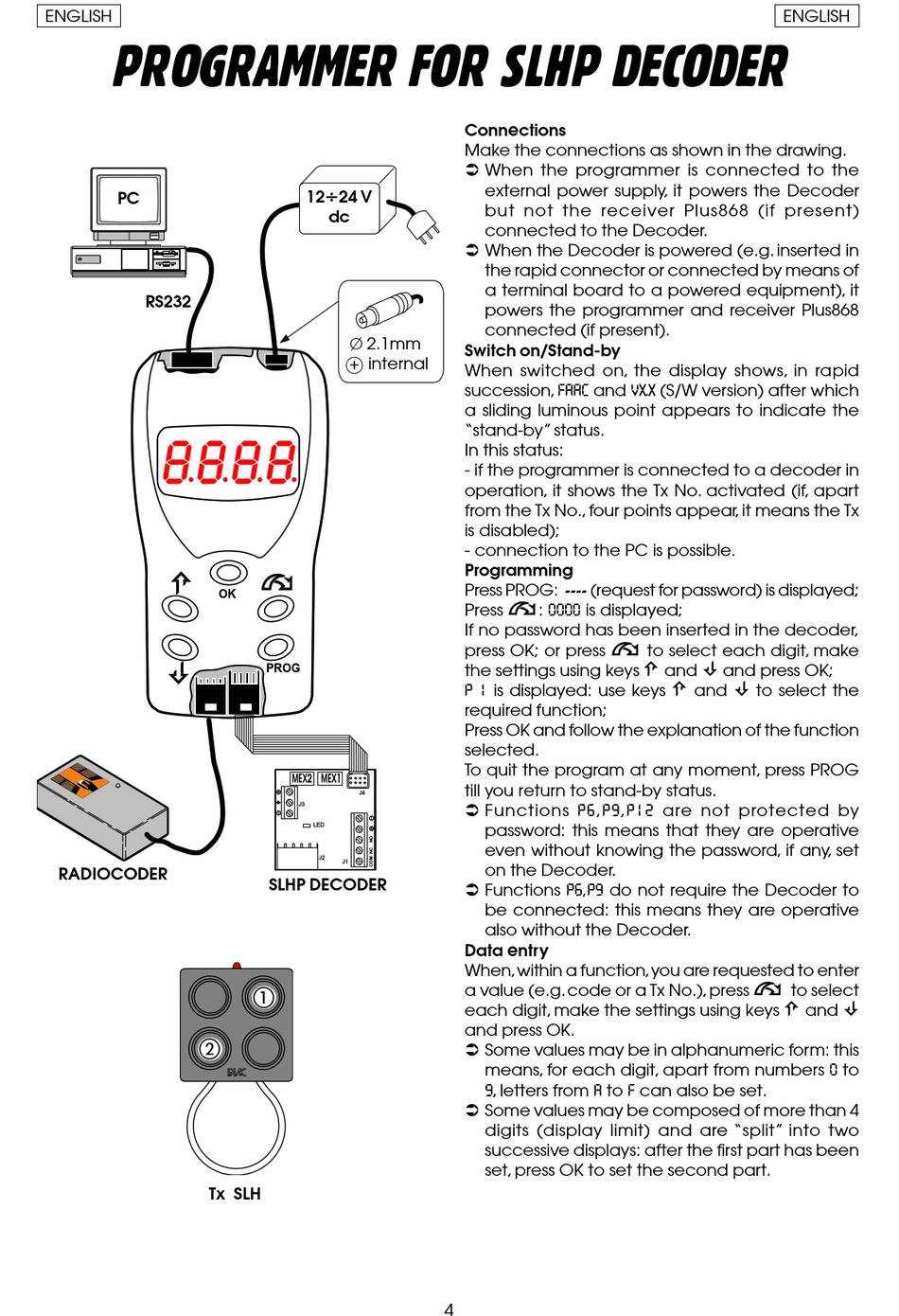

Make the connections as shown in the drawing.
When the programmer is connected to the
external power supply, it powers the Decoder
but not the receiver Plus868 (if present)
connected to the Decoder.
When the Decoder is powered (e.g. inserted in
the rapid connector or connected by means of
a terminal board to a powered equipment), it
powers the programmer and receiver Plus868
connected (if present).
Switch on/Stand-by
When switched on, the display shows, in rapid
succession, FAAC and Vx.x (S/W version) after which
a sliding luminous point appears to indicate the
"stand-by" status.
In this status:
- if the programmer is connected to a decoder in
operation, it shows the Tx No. activated (if, apart
from the Tx No., four points appear, it means the Tx
is disabled);
- connection to the PC is possible.
Programming
Press PROG: ---- (request for password) is displayed;
Press 6: 0000 is displayed;
If no password has been inserted in the decoder,
press OK; or press 6 to select each digit, make
the settings using keys 8 and 2 and press OK;
P 1 is displayed: use keys 8 and 2 to select the
required function;
Press OK and follow the explanation of the function
selected.
To quit the program at any moment, press PROG
till you return to stand-by status.
Functions P6,P9,P12 are not protected by
password: this means that they are operative
even without knowing the password, if any, set
on the Decoder.
Functions P6,P9 do not require the Decoder to
be connected: this means they are operative
also without the Decoder.
Data entry
When, within a function, you are requested to enter
a value (e.g. code or a Tx No.), press 6 to select
each digit, make the settings using keys 8 and 2
and press OK.
Some values may be in alphanumeric form: this
means, for each digit, apart from numbers 0 to
9, letters from A to F can also be set.
Some values may be composed of more than 4
digits (display limit) and are "split" into two
successive displays: after the first part has been
set, press OK to set the second part.
