Summary of Contents for Aqua SG B Series
-
Page 2: Chapter One: Specification

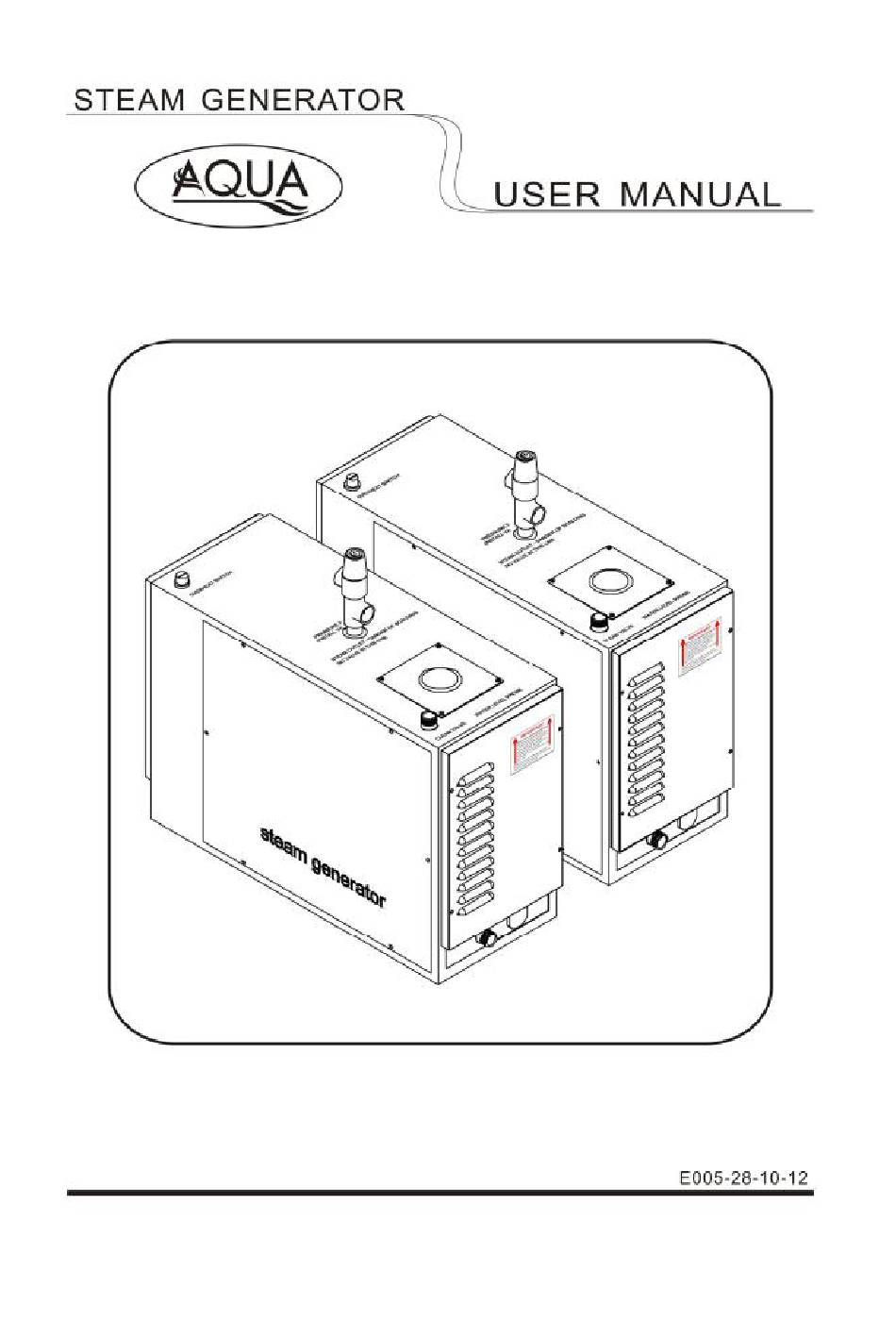

SG-B SERIES STEAM GENERATOR FOREWORD Thank you for choosing our Aqua SG-B Series steam generator, please take the time to read these instructions before you begin as they contain important information about the installation operation and maintenance requirements. SG-B Series steam generators are available in specifications from 3kw to 18kw and are equipped with our OC-B intelligent controller. - Page 3 SG-B SERIES STEAM GENERATOR SG - 90B O C - 90B 9. 0 230/ 400 1/ 3 39/ 13 530×210×370 SG - 105B O C - 105B 10. 5 230/ 400 1/ 3 45. 6/ 15 530×210×370 SG - 120B O C - 120B 12.
-
Page 4: Chapter Two: The Frame And Functions Of The Sg-B Series Steam Generator
SG-B SERIES STEAM GENERATOR filter (Fig-3) parameter and dimensions of OC-B controller (chart 2) working time Dimension model Temperature remarks (minutes) (L×W×Hmm) When the time widow displays “Long” 30-60℃ OC-B 10-240 150×92×22 the generator will operate continuously 86-140℉ until it is switched off. Steam on demand switch, press once it OC-S 60×60... - Page 5 SG-B SERIES STEAM GENERATOR (2) parts instruction (chart 3 ) Part description Water inlet valve Automatically controls the water flow (maximum pressure 2bar) Drain valve Controlled by controller .turn on or turn off to drain water Power entry The route of power wire Control cable entry The route of control cable Stainless steel tank...
- Page 6 SG-B SERIES STEAM GENERATOR Increase button Decrease button Dual function button switches a fan on and off also used to confirm changes in temperature settings. Time display Display the resting and operating time of the steam generator window Temp display Display the detected temperature of steam room window Light LED...
-
Page 7: Chapter Three: Installation
SG-B SERIES STEAM GENERATOR Chapter three: installation ★ Isolate the power supply before installation ★ Confirm the model you have selected is suitable for your steam room, please refer to chart 5 Chart 5 Steam room volume Steam room volume Model Model Power... - Page 8 SG-B SERIES STEAM GENERATOR The following table should be referred to for guidance only. Please note that the size of heater required to heat a particular size of steam room will vary according to a number of factors including the type of material used for construction, the height of the steam room and the ambient temperature.
- Page 9 SG-B SERIES STEAM GENERATOR Fig-7 char t - 6 M odel O C - 30B ~0C - 60B O C - 70B ~O C - 120B O C - 135B ~O C - 180B Water and steam connection The water supply pipe and steam pipe should comply with local standards Connect the water inlet valve of the generator to the 15mm mains water supply using a flexible hose with 1/2 inch fittings.
-
Page 10: Temperature Sensor
SG-B SERIES STEAM GENERATOR 118 m m (Fig-9) (4) Temperature probe installation: the temperature probe is installed inside the steam room at approximately 1.2 to 1.5 meters high and away from the door. Use a Φ4mm screw fix it in place and then connect to the wire from the controller. - Page 11 SG-B SERIES STEAM GENERATOR 6Kw Steam Generator Circuit D iagram Light (Max 100W V=230AC) (V=230AC) Hi-Temp Cut Off BLUE (Manual Reset) WHITE WHITE Transformer YELLOW/GREEN Temp2 Tank R ED R ED BLACK R ED Sensor Drain LED COLOR KEY Valve DC5V D1 RED Fan On 400V 3N~ 50/60Hz...
- Page 12 SG-B SERIES STEAM GENERATOR 18Kw Steam Generator Circuit Diagram Light (Max 100W (V=230 AC) V=230 AC) Hi-Temp Cut Off BLUE (Manual Reset) WHITE WHITE Transformer YELLOW/GREEN Temp2 Tank R ED R ED R ED R ED R ED R ED BLACK L ED COLOR KEY Sensor...
-
Page 13: Chapter Four: Testing And Operation
SG-B SERIES STEAM GENERATOR Chapter Four: Testing and operation (1) Once the installation has been completed and checked turn on power and water supplies carry out the following test. (2) On the control panel press the “ ” key, (the key has a time-lapse function, press it for 1 second), the time and temp windows display the data. - Page 14 SG-B SERIES STEAM GENERATOR descaling operation (see further details below). (15) To change the display temperature from Celsius (default) to Fahrenheit alter the settings of the JP1 pins on the circuit board, please refer last chapter circuit diagram. Setting time and temperature When the steam generator leaves the factory the default settings are 40℃...
-
Page 15: Chapter Five: Troubleshoot Guide
SG-B SERIES STEAM GENERATOR the descaling process has been reset or the acid solution has been drained and the boiler flushed with clean water – minimum 3 flushes. Under commercial model , steam generator will produce steam very fast. Chapter Five: Troubleshoot guide Please note that we recommend all repairs are carried out a suitably qualified person. -
Page 16: Chapter Six: Maintenance
SG-B SERIES STEAM GENERATOR Temp. window Something is wrong with the Check connection or change Temperature display “LC” Temperature Sensor Sensor connection Temp. window Temperature Sensor is short 1. Check Temperature Sensor connection display “HC” circuit 2. check controller if it is short circuit inside Turn off steam Something is wrong with Check water inlet valve .clean it or change it... - Page 17 All generators are guaranteed for 12 months from the date of purchase. This guarantee excludes consumable items such as the electrical elements and failures resulting from misuse or abuse such as a failure to descale as above. AQUA S.p.A. Via Tonino Crotti 1 I –...
