Inland SwapTop Router/Shaper User Manual

•
Always unplug the unit when cleaning.
•
We recommend after wet use to drain any remaining coolant: The debris from
glass and related materials has a tendency to harden. Rinse and dry the res-
ervoir and removable work surface.
•
After dry use empty or vacuum the reservoir of debris and then wipe down and
dry the reservoir and removable work surface.
• • • • •
Never allow the yellow motor unit to get wet or immerse it in water. Use a
vacuum to remove any debris from the bottom air vents on the unit.
•
Always secure grinding heads to the flat side of the motor shaft. Failure to do
so can scar the shaft and prevent head removal. If some burrs or nicks have
formed, polish up the motor shaft. Remove all heads and hold a piece of 0000
(or finer) steel wool up to the motor shaft while the unit is running. Work down
the imperfections and then wipe the shaft clean and apply a thin coating of
Inland MotorShaft Lubricant (stock #50028) or petroleum jelly.
•
Removing grinding heads after use will prevent them from seizing.
•
Check the power cord periodically for cuts or damage.
•
Check all coolant lines and tubes to see that they are not clogged.

Product Specifications

Convertible Motor Unit
Permanent Magnet AC Motor
5/16" Stainless Steel Motor Shaft
115VAC / 60Hz, or 230/240VAC / 50Hz
48 oz-in Torque / 2800 RPM
Two Year Full Confidence Warranty

Parts and Accessories

Diamond Heads: Available in 1/4", 3/4", and 1" diameters with grits ranging from
superfine to superspeed to meet every grinding or shaping need.
DiamondCoolant™ no. 50011: Use this water soluble coolant to grind faster
and make your bits last longer by reducing grinding friction.
Table Saw Conversion Kit no. 10665: Turn your SwapTop™ Router/Shaper into
a full function wet or dry operating table saw.
FaceShield™ #50017: A clear 9" x 12" acrylic shield for added eye protection.
MagnaShield™ #50018: A 9 x 12" acrylic shield with optical quality convex mag-
nifying surface built in to reduce eye strain and make detail work easier.
For questions or comments regarding the use of this or any Inland product,
visit our website at www.inlandcraft.com; email us at helpdesk@inlandcraft.com;
call Inland Customer Service at 1-800-521-8428 9 AM to 5 PM EST or write:
Inland Craft Products, Co.
32052 Edward Drive
Madison Heights, MI 48071
Rev No. 3

Maintenance

Router/Shaper
Work Surface: 10" X 12"
Height: 6 1/2"
Maximum Bit Diameter: 1"
Maximum Sanding Thickness: 5/8"

Service

Stock No. 69861050
SwapTop™ Router/Shaper
Thank you for buying this Inland product. These instructions cover assembly
and use of the SwapTop™ Router/Shaper, SwapTop™ Hobby Shaper and the
SwapTop™ Router/Shaper Conversion Kit. Please read all the instructions to un-
derstand the correct components, set up, and use of your machine.
√ √ √ √ √
Always wear safety glasses or goggles. You can use a FaceShield™ or
MagnaShield™ for additional protection.
√ √ √ √ √
Plug into a grounded electrical system. Do Not override the grounding system.
√ √ √ √ √
If your motor unit has a speed control feature, make sure that you set it at the
maximum speed for proper operation.
√ √ √ √ √
Always unplug your machine when switching between set ups, installing blades,
and making adjustments.
√ √ √ √ √
Place on a sturdy, level, water tolerant surface at a comfortable working height.
√ √ √ √ √
Never operate with guard covers and safety features removed or disabled.

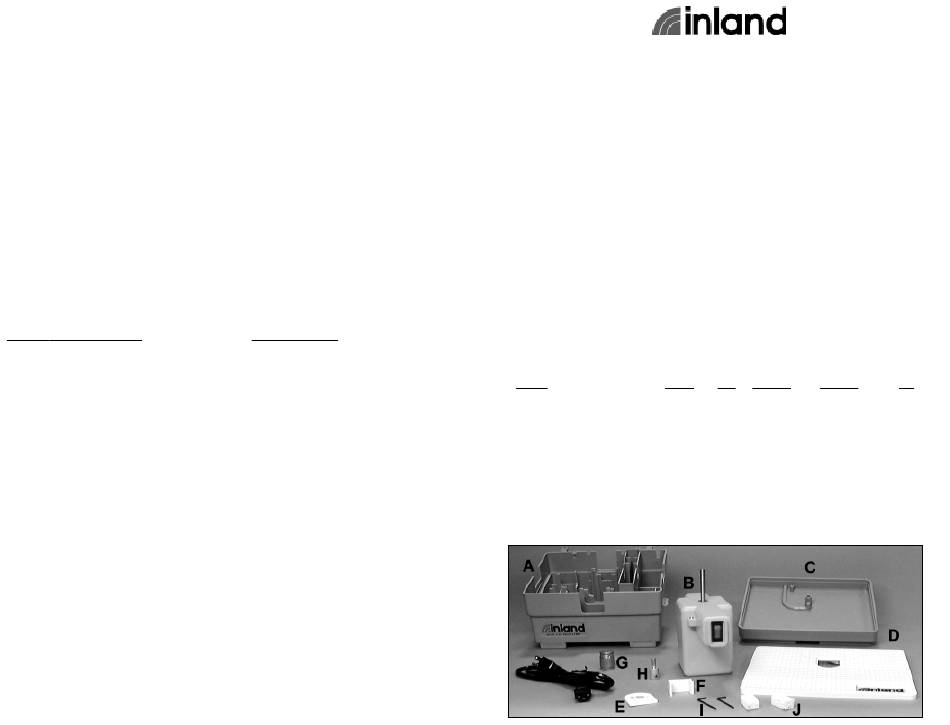

Use the chart and picture to verify you have the following items:
Name Color
A Machine Base Grey
B Motor Unit Yellow
C Removable Reservoir Grey
D Reversible Grid Surface White
E BitSert™ White
F Splash Guard White
G 1" Diamond Head Brass
H 1/4" Diamond Head Brass
I 5/64" Allen Wrench Black
J Sponge Yellow
Drain Tube Clear
Users Guide

Safety

Parts List

Router/ Hobby
No. Shaper Shaper
1 yes yes
1 yes yes
1 yes yes
1 yes yes
1 yes yes
1 yes yes
1 yes yes
1 yes optional
2 yes yes
2 yes yes
1 yes yes
Conversion
Kit
no
no
yes
yes
yes
yes
yes
optional
yes
yes
yes
