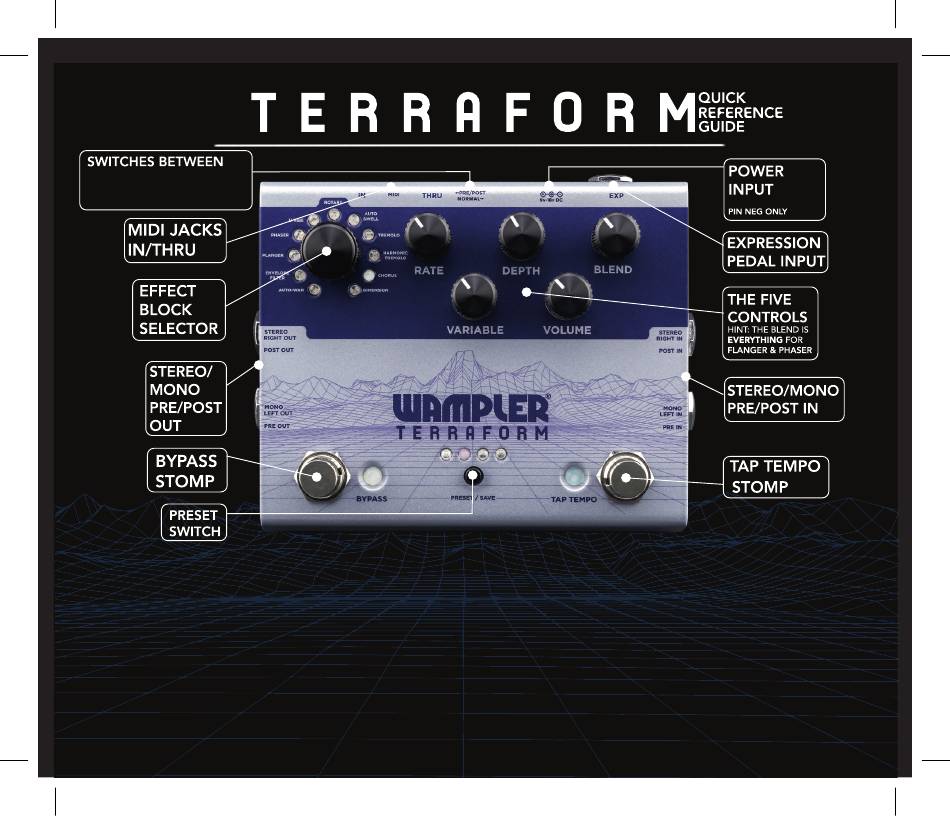

Wampler Terraform Quick Reference Manual

NORMAL (STEREO/
MONO) and PRE/POST
DIMENSION
effect RATE; effect DEPTH; output
VOLUME; clean BLEND; VARIABLE
amount of bass
CHORUS
effect RATE; effect DEPTH; output
VOLUME; clean BLEND; VARIABLE
amount of bass
HARMONIC TREMOLO
speed/RATE; effect DEPTH; output
VOLUME; BLEND = crossover point;
VARIABLE = width
Terraform-QuickStart_6.25x5.25_Final_9-23-19.indd 1
TREMOLO
effect RATE; effect DEPTH, output
VOLUME; BLEND = stereo width,
VARIABLE = waveform width
AUTO SWELL
effect RATE; effect DEPTH; output
VOLUME; clean BLEND; VARIABLE
pick attack speed
ROTARY
max horn speed RATE; max woofer
speed DEPTH; output VOLUME,
BLEND between horn/woofer,
VARIABLE ramp speed.
U VIBE
FLANGER
effect RATE; filter range DEPTH;
effect RATE; effect DEPTH (max=TZF);
output VOLUME; clean BLEND;
output VOLUME; clean BLEND; VARIABLE
VARIABLE waveshape
feedback level
PHASER
ENVELOPE FILTER
effect RATE; DEPTH of filter
attack speed/RATE; DEPTH envelope
range, VARIABLE stereo width,
sensitivity; output VOLUME, clean BLEND;
clean BLEND; output VOLUME
VARIABLE changes "Q"
AUTOWAH
autowah RATE; filter DEPTH; output
VOLUME; clean BLEND, VARIABLE
changes "Q"
9v - 18v DC CENTER
(ALSO TOGGLES RAMP
FOR ROTARY)
9/25/19 9:43 AM
