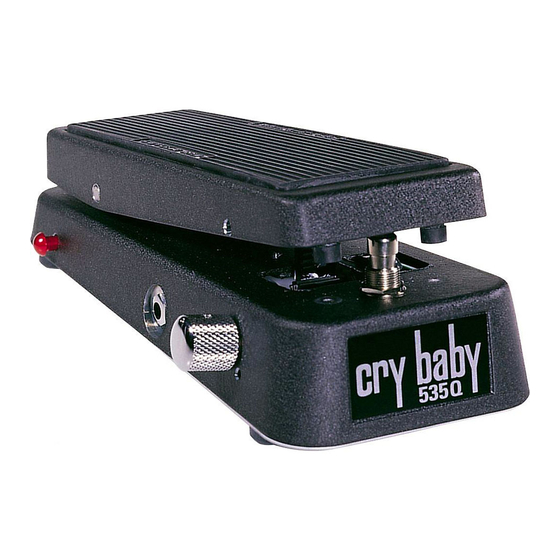

- Page 1 CBM535AR ® CRY BABY MINI 535Q WAH ®...
- Page 2 EXTERNAL CONTROLS 1 VARIABLE Q knob adjusts wah intensity RANGE SELECTOR 2 VOLUME knob sets gain boost up to +16dB 1 270Hz—1300Hz 2 320Hz—1650Hz 3 RANGE SELECTOR switch selects frequency range 3 360Hz—1840Hz 4 BOOST switch increases output as set by the VOLUME knob 4 420Hz—2100Hz 5 Internal AUTO-RETURN DELAY control (internal) sets how long effect rings out after being disengaged...
- Page 3 BASIC OPERATION POWER The Cry Baby Mini 535Q Wah is powered by one 9-volt battery ® (remove bottom plate to install), the Dunlop ECB003 9-volt adapter, or the DC Brick , Iso-Brick , and Mini Iso-Brick power ™ ™ ™ supplies.
- Page 4 SPECIFICATIONS IMPEDANCE Input Impedance 1 MΩ Output Impedance <1.5 kΩ NOISE FLOOR* Heel Down -90 dBV Toe Down -97 dBV WAH RANGE SELECTOR Range Selector Switch Position (1 towards heel, 4 towards toe) 1st Position 270 Hz to 1300 Hz 2nd Position 320 Hz to 1650 Hz 3rd Position...
