© 2015 Edge Lighting. All Rights Reserved.
Installation Instructions for
IMPORTANT INFORMATION
- This product is ETL listed for indoor locations.
- This product is for wall mount application.
- This instruction shows a typical installation.
SAVE THESE INSTRUCTIONS!
Install the Fixture
A
1
BACKPLATE
2: Hold the backplate against the surface where the fixture is
going to be mounted. Level the backplate vertically and mark
the two mounting holes on the surface.
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
info@edgelighting.com

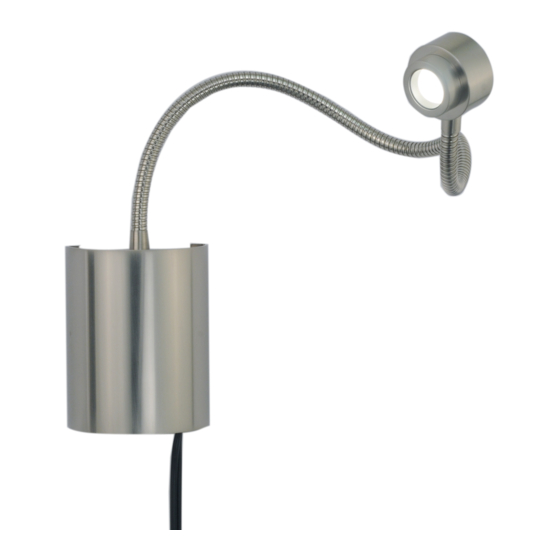

Night Owl (Plug-In Version)
1: Remove the cover by sliding it up and then off the backplate.
COVER
NIGHTOWL-P-_
B
WALL
BACKPLATE
904-NIGHTOWL-P-02
MOUNTING
HOLE
2
2
MOUNTING
HOLE
Advertisement
Table of Contents
Summary of Contents for Edge Lighting Night Owl
- Page 1 Chicago, IL 60614 Tel: 773-770-1195 Fax: 773-935-5613 www.edgelighting.com info@edgelighting.com © 2015 Edge Lighting. All Rights Reserved. Night Owl (Plug-In Version) Installation Instructions for IMPORTANT INFORMATION - This product is ETL listed for indoor locations. - This product is for wall mount application.
- Page 2 NOTE: Omit steps 3 to 5 if installing the fixture onto a surface other than drywall like bedroom wood board. Use the provided screws to mount the backplate directly to the wood board. ANCHOR 3: Tap the anchors onto the marked points into the wall up to the threaded portion with a hammer.
