U-Line H-1669 Installation Instructions Manual

π
H-1669, H-7430
HORIZONTAL BABY
CHANGING STATION

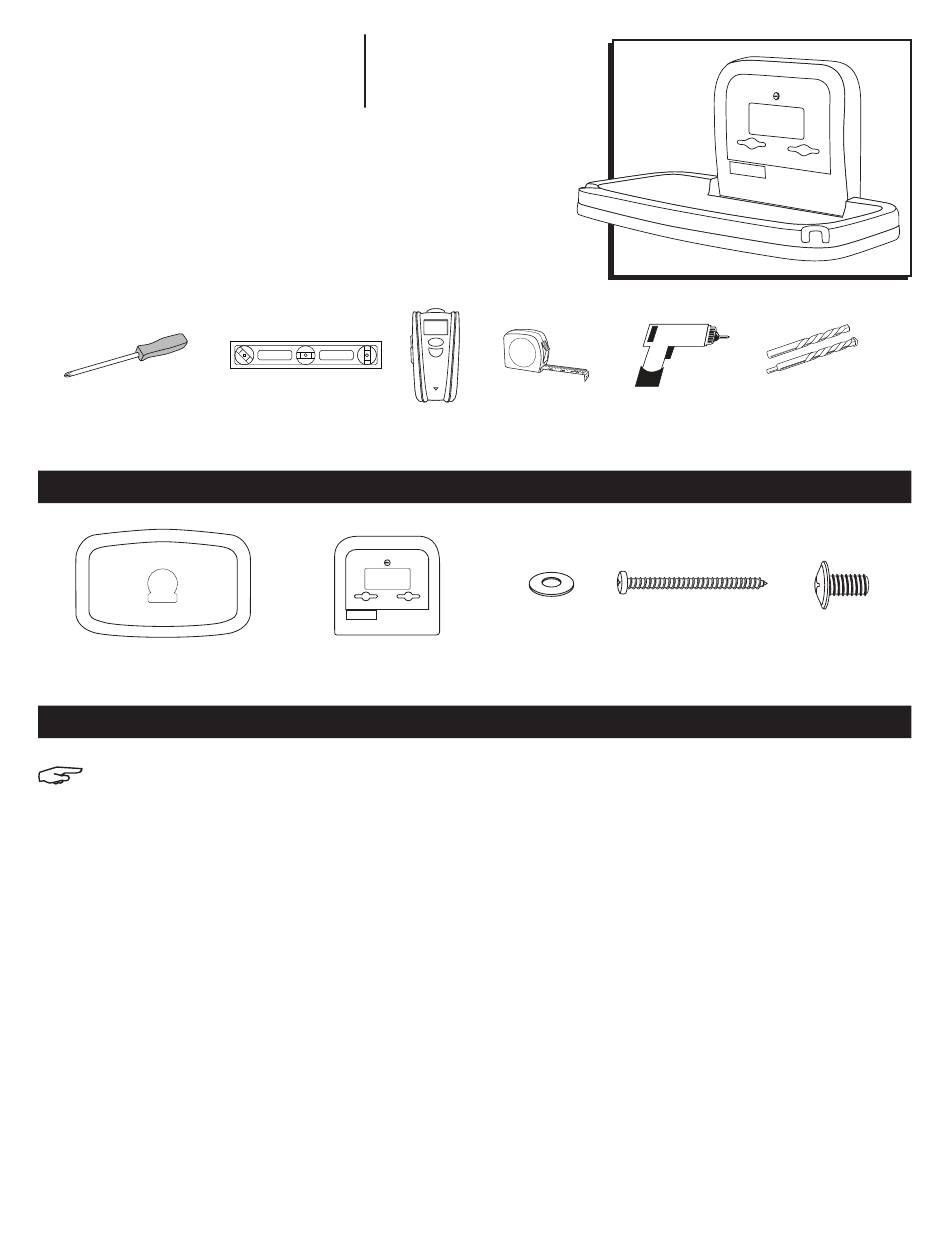

TOOLS NEEDED
Phillips Screwdriver
Baby Changing Station x 1
(Bed and Metal Mounting Chassis)
NOTE: The unit must be attached to a
permanent wall that is capable of holding a
substantial load. The maximum recommended
total weight for this baby changing station
(including baby and parcel bag) is 60 lbs.
Excessive weight may cause hazardous or
unstable conditions.
Remove the bed and chassis from the box and select
the wall area where the unit will be installed. Make
sure you have taken into consideration the operating
clearance of 9½" on both sides of the exposed chassis
and 23⁄" from wall surface when open. Measure
from the floor 42¼" on stud center and mark the wall.
The mounting holes are designed for 16" stud centers.
Ensure the locations you have marked for the mounting
holes are level before drilling. (See next page, Figure 1)
PAGE 1 OF 9
1-800-295-5510
uline.com
Level
Stud
Finder
PARTS
Wall Mount Liner Dispenser x 1
INSTALLATION
Measuring Tape Drill
Flat Washer 1/4 x 3" Phillips
x 4 Wood Screw x 6
PREPARE MOUNTING SURFACE
Based on wall style, select one of the three options:
FOR STANDARD INSTALLATION
Drill pilot holes for keyhole mounting using a 1/8" regular
drill bit.
FOR MASONRY OR TILE OVER STUD WALL
Use a 7/32" masonry drill bit for the pilot hole until you hit
the stud. Change bit to 1/8" regular drill bit.
FOR METAL STUD OR CONCRETE BLOCK
If the wall has metal studs or an underlying surface
of concrete block, you will need to use toggles.
Additionally, if the wall has wooden studs that are not
on 16" centers, you will need to use toggles to secure
one side of the unit. The other side should be secured
to the stud using the screws provided. You must allow for
space inside the wall for the toggles to turn. This will vary
depending on the toggles used.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
1/8", 7/32" and 1/2"
Drill Bit
(regular and masonry)
8/32 x 5/16"
Phillips Button
Head Screw x 4
