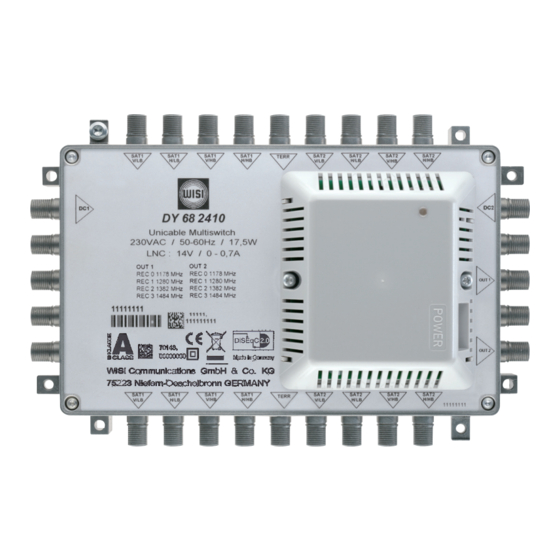

Wisi MULTISYSTEM DY 64 1810 Operating Instructions Manual

Wisi MULTISYSTEM DY 64 1810 Operating Instructions Manual

Stand alone + cascade

Advertisement

Quick Links

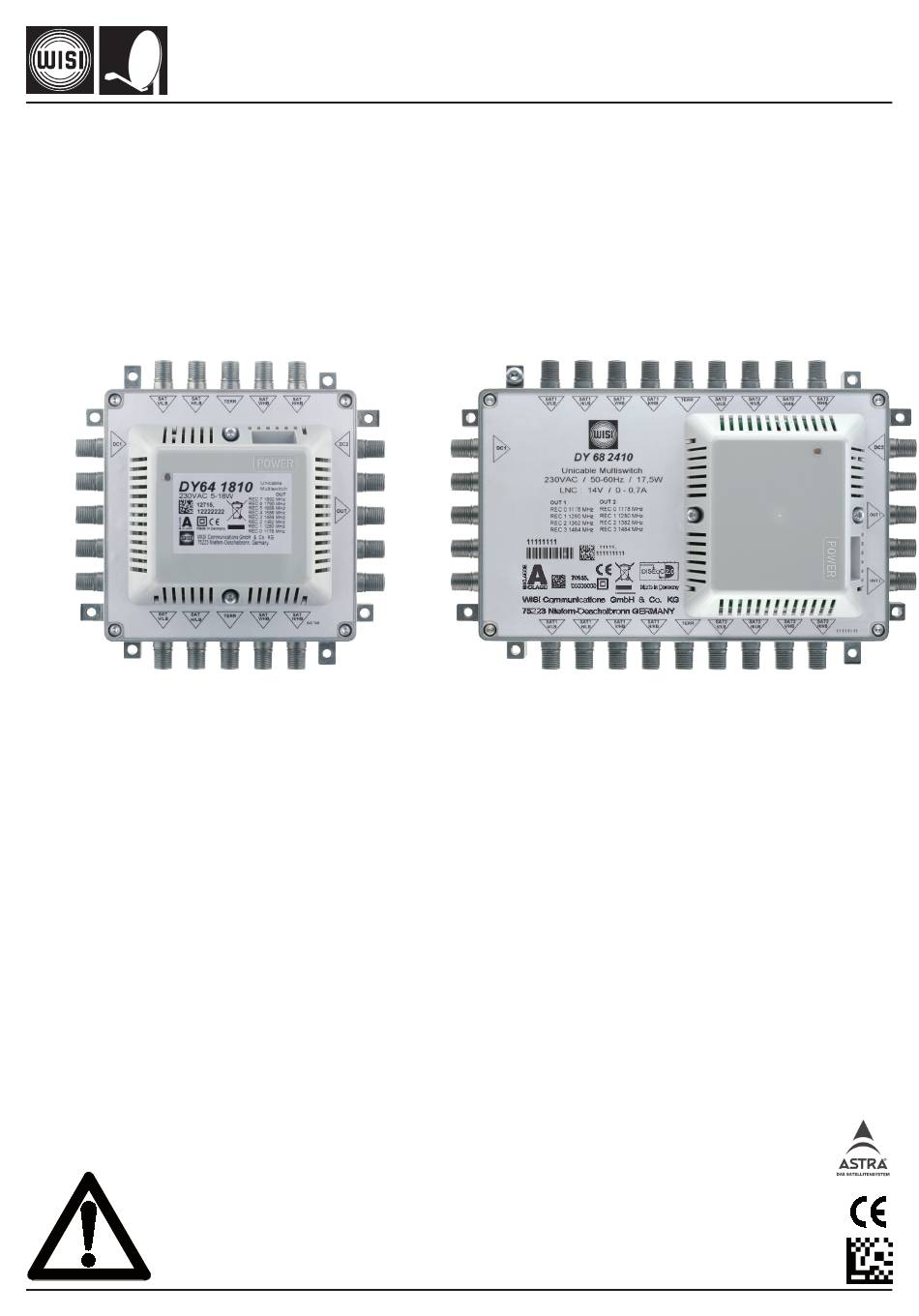

WISI MULTISYSTEM QUICK
DY 64 1810 / 2410 Stand alone + Kaskade
DY 64 1800 / 2400 Stand alone + Cascade
DY 64 1800 / 1810
4 SAT-Eingänge + 1 TERR / 4 SAT inputs+1 TERR
1 UNICABLE-Ausgang / 1 UNICABLE output
DY 64 2400 / 2410
4 SAT-Eingänge + 1 TERR / 4 SAT inputs+1 TERR
2 UNICABLE-Ausgänge / 2 UNICABLE outputs
Kaskadierbare Einkabellösung
4x Sat, 1x Terr (Stamm)
Einzeln und in Kaskade
Kompatibel mit DY50A, DY48A/46A/44A,
DY58B/56B, DY16/12
EN50494 konform - Einkabelstandard
Konstanter Ausgangspegel
DY 64 1800/1810 90 dBµV
DY 64 2400/2410 85 dBµV
Cascadable single cable switching unit
4x Sat, 1x Terr trunk lines
Stand alone and in cascade
Compatible with DY50A, DY48A/46A/44A,
DY58B/56B, DY16/12
Conform to the EN50494 single cable standard
Fixed output level
DY 64 1800/1810 90 dBµV
DY 64 2400/2410 85 dBµV
Erdung bzw. Potentialausgleich!
Nach EN 50 083-1 muß die Satelliten-Antennenanlage den Sicherheitsanforderungen
wie z.B. Erdung, Potenti alausgleich entsprechen.
Grounding and Potential Equalization
Pursuant to EN 50 083-1 the satellite antenna system must comply with safety
requirements, i.e., grounding and potential equalization.
Operating instructions
DY 68 1810 / 2410 Stand alone + Kaskade
DY 68 1800 / 2400 Stand alone + Cascade
DY 68 1800 / 1810
8 SAT-Eingänge + 1 TERR / 8 SAT inputs+1 TERR
1 UNICABLE-Ausgang / 1 UNICABLE output
DY 68 2400 / 2410
8 SAT-Eingänge + 1 TERR / 8 SAT inputs+1 TERR
2 UNICABLE-Ausgänge / 2 UNICABLE outputs
Kaskadierbare Einkabellösung
8x Sat, 1x Terr (Stamm)
Einzeln und in Kaskade
Kompatibel mit DY90, DY04/06/08,
DY94A/96A/98A
EN50494 konform - Einkabelstandard
Konstanter Ausgangspegel
DY 68 1800/1810 90 dBµV
DY 68 2400/2410 85 dBµV
Cascadable single cable switching unit
8x Sat, 1x Terr trunk lines
Stand alone and in cascade
Compatible with DY90, DY04/06/08,
DY94A/96A/98A
Conform to the EN50494 single cable standard
Fixed output level
DY 68 1800/1810 90 dBµV
DY 68 2400/2410 85 dBµV
Betriebsanleitung
IES-tauglich
411 883 b
-1-

Advertisement

loading
Need help?

Need help?

Do you have a question about the MULTISYSTEM DY 64 1810 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wisi MULTISYSTEM DY 64 1810

  • Page 1 Betriebsanleitung Operating instructions WISI MULTISYSTEM QUICK DY 64 1810 / 2410 Stand alone + Kaskade DY 68 1810 / 2410 Stand alone + Kaskade DY 64 1800 / 2400 Stand alone + Cascade DY 68 1800 / 2400 Stand alone + Cascade...
  • Page 2 OC 04 Legende VS... V / LB Vertical / Low Band H / LB Horizontal / Low Band V / HB = Vertical / High Band H / HB = Horizontal / High Band DVB-T 230 VAC DY 64 1810 8 x DB 64 8 x OR 5x Rec.
  • Page 3 OC 04 Legende VS... V / LB Vertical / Low Band H / LB Horizontal / Low Band V / HB = Vertical / High Band H / HB = Horizontal / High Band DVB-T DY 55 DY 64 1800 Rec.
  • Page 4 OC 04 Legende V / LB Vertical / Low Band VS... H / LB Horizontal / Low Band V / HB = Vertical / High Band H / HB = Horizontal / High Band DVB-T 230 VAC OUT 1 DY 64 2410 OUT1 OUT 2 OUT2...
  • Page 5 OC 04 Legende VS... V / LB Vertical / Low Band H / LB Horizontal / Low Band V / HB = Vertical / High Band H / HB = Horizontal / High Band DVB-T DY 55 OUT 1 DY 64 2400 OUT1 OUT 2 OUT2...
  • Page 6 Legende V / LB Vertical / Low Band H / LB Horizontal / Low Band V / HB = Vertical / High Band H / HB = Horizontal / High Band OC 04 OC 04 VS... DVB-T DY 68 1810 OUT 1 Rec.
  • Page 7 Legende V / LB Vertical / Low Band H / LB Horizontal / Low Band V / HB = Vertical / High Band H / HB = Horizontal / High Band OC 04 OC 04 VS... DVB-T 1x DY 55 DY 68 1800 OUT 1 Rec.
  • Page 8 Legende V / LB Vertical / Low Band H / LB Horizontal / Low Band V / HB = Vertical / High Band H / HB = Horizontal / High Band OC 04 OC 04 VS... DY 68 2410 OUT 1 OUT 1 OUT 1 Rec.
  • Page 9 Legende V / LB Vertical / Low Band H / LB Horizontal / Low Band V / HB = Vertical / High Band H / HB = Horizontal / High Band OC 04 OC 04 VS... DVB-T 1x DY 55 DY 68 2400 OUT 1 OUT 1...
  • Page 10: Technische Daten / Specifications

    Technische Daten / Specifications DY 64 1800 / DY 64 1810 Stamm / Trunk Frequenzbereich / Frequency range 950-2400 MHz Durchgangsdämpfung / Through loss 1,3-1,6 dB Eingangspegel / Input level 60-90 dBµV Isolation Stamm / Isolation trunk 35 dB min. Frequenzbereich / Frequency range TERR 5-862 MHz...
  • Page 11 Technische Daten / Specifications DY 64 2400 / DY 64 2410 Stamm / Trunk Frequenzbereich / Frequency range 950-2400 MHz Durchgangsdämpfung / Through loss 1,3-1,6 dB Eingangspegel / Input level 60-90 dBµV Isolation Stamm / Isolation trunk 35 dB min. Frequenzbereich / Frequency range TERR 5-862 MHz...
  • Page 12 Technische Daten / Specifications DY 68 1800 / DY 68 1810 Stamm / Trunk Frequenzbereich / Frequency range 950-2400 MHz Durchgangsdämpfung / Through loss 2,5-3,5 dB Eingangspegel / Input level 65-95 dBµV Isolation Stamm / Isolation trunk 35 dB min. Frequenzbereich / Frequency range TERR 5-862 MHz...
  • Page 13 Technische Daten / Specifications DY 68 2400 / DY 68 2410 Stamm / Trunk Frequenzbereich / Frequency range 950-2400 MHz Durchgangsdämpfung / Through loss 2,5-3,5 dB Eingangspegel / Input level 65-95 dBµV Isolation Stamm / Isolation trunk 35 dB min. Frequenzbereich / Frequency range TERR 5-862 MHz...
  • Page 14 Unicable Zusatzinformation Lieber Kunde, Ihr Satellitenreceiver OR.. bietet zusätzlich den Betrieb an einer "Einkabellösung mit Multischalter DY 6xxxx“ und Unicable-Einstellung. Jeder einzelne Receiver benötigt hierzu die Frequenz und eine Kanal ID. Beispiel einer Vorprogrammierung Vorbereitung: Die Receiver müssen mit der Frequenz und der dazu gehörigen Kanal ID vorprogrammiert werden.
  • Page 15 Unicable Frequenzaufkleber / Unicable Frequency lable DY 64 1800 / 1810 DY 64 2400 / 2410 -15-...
  • Page 16 WISI Communications GmbH & Co. KG Empfangs- und Verteiltechnik Wilhelm-Sihn-Straße 5-7, 75223 Niefern-Oeschelbronn, GERMANY Tel.: 07233 / 66-292, Fax: 66-320 E-Mail: info@wisi.de, http://www.wisi.de Technische Änderungen und Druckfehler vorbehalten! Technical Modifications reserved. WISI cannot be held excellence in digital ... liable for any printing error.
