Summary of Contents for Durapac HRP Series

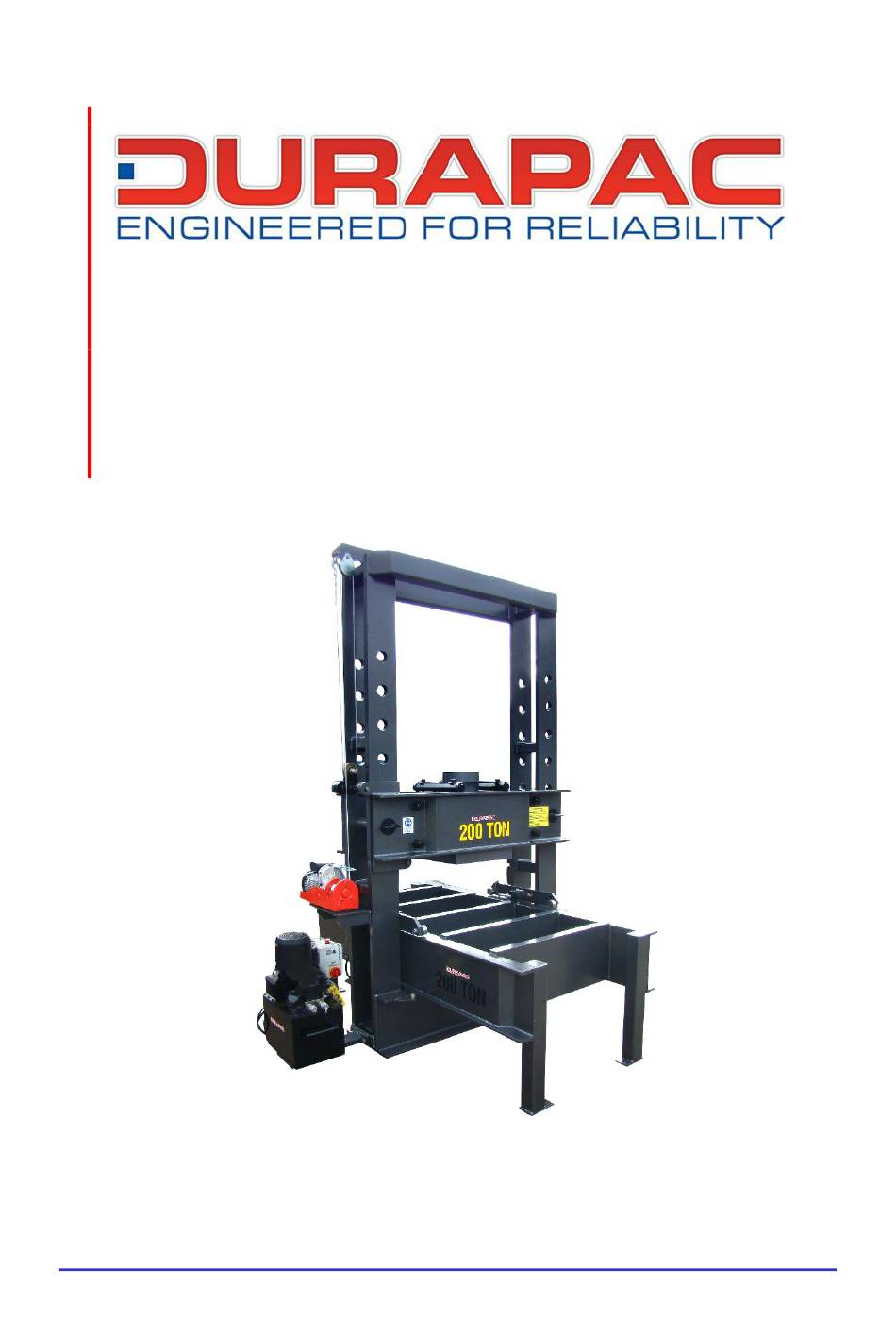

- Page 1 Instruction Manual Roll Frame Press Model – HRP Series Maximum Operating Pressure – 700 bar ABSOLUTE EQUIPMENT PTY LTD – 2/186 Granite Street, GEEBUNG QLD 4034 – Australia sales@absoluteequipment.com.au – Phone: +61 7 3865 4006 – Fax: +61 7 3102 6288...
-
Page 2: Product Information

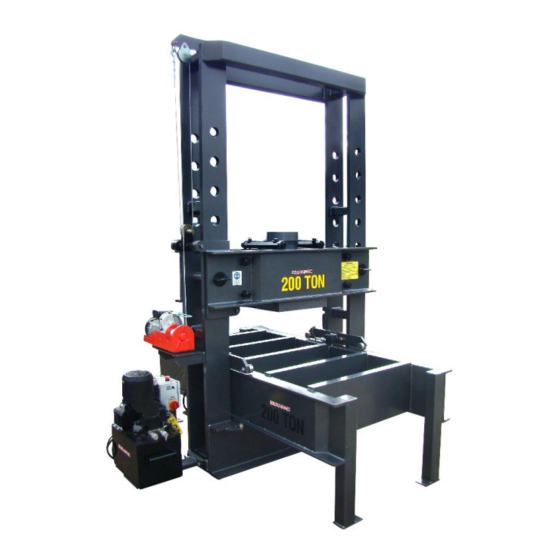

DURAPAC – Roll Frame Presses are engineered to meet Industrial Standards for Performance and Safety. The HRP Series is designed to allow the rolling frame to roll across the press bed for easy loading of large bulky items. The frame is welded for maximum strength and durability. -
Page 3: Receiving Instructions
The user must ultimately make the decision regarding suitability of the product for any given task and assume the responsibility of safety for all in the work area. Contact a Durapac representative if you are unsure of your Roll Frame Presses suitability for a particular application. - Page 4 Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Durapac authorised service centre in your area. To protect your warranty, use only high quality hydraulic oil HRP Series Roll Frame Press - V1.1 www.durapac.com...
- Page 5 It is impossible for Durapac to provide practical “all purpose” shielding because this is a general all-purpose press that can be used in many different applications. The operator of the press must use appropriate shielding for each application.
-
Page 6: Installation
4.1 Familiarise yourself with the specifications and illustrations in this owner’s manual. Know your press, its limitations and how it operates before attempting to use. Refer to the specification chart below or if in doubt, contact a Durapac representative. Press... - Page 7 Holding the cylinder mounting block, push the cylinder assembly left or right to the desired location. 5.4.3 Tighten the lock nuts to ensure cylinder can no longer move left or right. HRP Series Roll Frame Press - V1.1 www.durapac.com Page 7 of 11...
-
Page 8: Maintenance
Durapac authorised service centre Damage to hydraulic hoses may not be detected during visual inspections. For this reason, Durapac recommends that hydraulic hoses be replaced on a regular basis Tighten connections as needed. Use non-hardening pipe thread compound when servicing connections HRP Series Roll Frame Press - V1.1... -
Page 9: Adding Hydraulic Fluid
Wipe clean thoroughly and store in a clean, dry environment. Avoid temperature extremes. 6.4.3 For transportation or long storage, replace the air vent plug with shipping plug. 6.4.4 Shield press with a protective cover. HRP Series Roll Frame Press - V1.1 www.durapac.com Page 9 of 11... -
Page 10: Troubleshooting
Close release valve or shift to new position Low or no hydraulic fluid in pump Fill and bleed the system as reservoir described in the Maintenance Section HRP Series Roll Frame Press - V1.1 www.durapac.com Page 10 of 11... - Page 11 Check the Operation Section for the pump’s operation instructions Leaking cylinder seals Replace worn seals Check for excessive contamination or wear Replace contaminated fluid as necessary HRP Series Roll Frame Press - V1.1 www.durapac.com Page 11 of 11...
