WARNING
Buyer/User assumes all responsability for safety and proper
use not in accordance with the directions and sately labels.

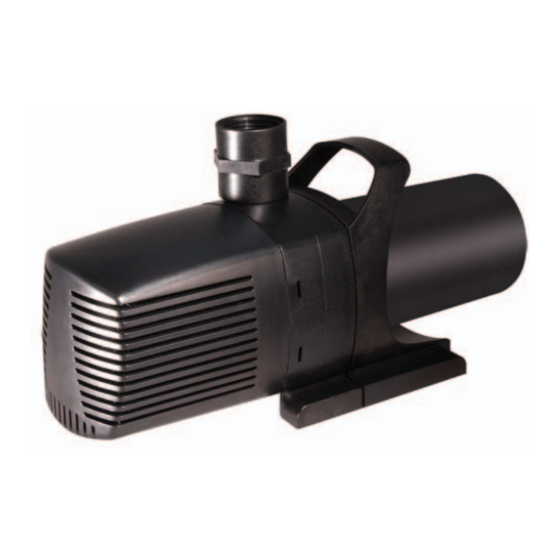

Hydrant Pump
• Pre-filter hose fittings included
• 16 ft. grounded cord
• For indoor or outdoor use
• Extremely quiet
• Multi-purpose submersible and external energy efficient
for aquarium and pond
• Thermally protected
• Internal and external operation
Advertisement
Table of Contents
Related Manuals for Commodity Axis ViaAqua Series
Summary of Contents for Commodity Axis ViaAqua Series
- Page 1 WARNING Buyer/User assumes all responsability for safety and proper use not in accordance with the directions and sately labels. Hydrant Pump • Pre-filter hose fittings included • 16 ft. grounded cord • For indoor or outdoor use • Extremely quiet • Multi-purpose submersible and external energy efficient for aquarium and pond • Thermally protected • Internal and external operation...
- Page 2 umPs ower eads ViaAqua® PowerHead Pumps, the energy efficient and versatile water pump. These utility pumps can be used for wet/dry filtration, water circulation, protein skimmers, fountains and/ or ponds. Enhanced motor design and magnetic rotor technology makes these units energy efficient and silent, yet are powerful and reliable. arning and afeguard WARNING » This product may contain chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Wash you hand after handling the product. » It is your sole responsability to verify that the plug and receptacle are clean/free of moisture and salt build up at all times. The receptacle must be free of water, salt, calcium, and magnesium. Failure to do so may cause fire and/or loss of life. » Do not plug into an extension cord or power strip. » A drip loop must be used when plug into any electrical devices. A drip loop is part of the cord hanging below the receptacle. » The national code requires all aquarium equipment to be plugged into a G.F.C.I. (Ground Fault Circuit Interrupter) electrical outlet. If you do not have a G.F.C.I., have an electrician install one prior to operating any aquarium components. * Please read and follow these important safeguards and safety GFCI guidelines. ONLY * ViaAqua® pump must be operated fully submersed at all times. * Never operate a ViaAqua® pump with a electronic wave maker or timing device. As such devices will cause permanent damage to the pump and/or demagnetize the impeller. * When operates the pump inside an aquarium, a prefilter must be used. Failure to use a prefilter will cause damage to the impeller and/ or pump.
- Page 3 PPlications IN-LINE OR SUBMERSED OPERATION 1. Verify that the pump size fits the application without dramatically restricting the flow. Consult your local dealer or manufacturer’s guidelines for the proper size and model of ViaAqua® pump. 2. Do not reduce the input diameter of the pump 3. You must incorporate a pre-filter when operation for a water circulation, waterfalls, ponds and fountains. 4. Replace the impeller if there are any signs of damage or excess wear. 5. Failure to maintain a ViaAqua® pump will cause permanent damage to the impeller and/or pump. Routine maintenance is of the utmost importance to keep you pump working well. SUBMERSED 1. Place pump in the desired location 2. If place in a pond: Raise the pump off the bottom of the pond by a min. of 6 inches when installing. 3. Use Teflon tape to connect the threaded pipe adapter to the output of the pump. 4. Place the gasket onto the barbed pipe adapter, now using Teflon tape hand tighten the barbed pipe adapter to the threaded pipe the adapter. 5. Connect the flexible tubing to the barbed pipe adapter. Insure water tightness with a hose clamp. EXTERNAL 1. Place the pump in desired location 2. Using Teflon tape connect the threaded pipe adapter to the intake and output of the hydrant water pump. 3. Place a gasket on the barbed pipe adapter, now using Teflon tape hand tighten the barbed pipe adapter to the threaded pipe the adapter.
- Page 4 aintenance To insure a properly operating pump: Clean pump, impeller and intake strainer every 3 weeks. Failure to do so will cause premature failure of the pump. 1. Disconnect the pump from the power supply prior to removing the pump from the water. 2. Remove the prefilter. Rinse out prefilter sponge of debris. 3. With a Philips screw driver loosen the four screws on the volute. Now, remove the volute. 4. Once the volute is removed, clean well. Now verify the impeller is free of all dirt and debris. 5. Remove the impeller and clean well. 6. Once the impeller is removed, slide both the impeller and shaft out of the main body of the pump and clean well. Do not use any soap detergents during cleaning. 7. After the impeller and shaft are cleaned, use a small brush to clean inside of the motor housing. 8. Reassemble above parts and your ViaAqua® pump is again ready to use. Confirm that all the washer and bushing a reassembled properly. Failure to do so will cause permanent damage to the pump. 9. Replace the impeller if there are any signs of damage or excess wear. NOTE: If the water flow is to decrease, it’s a clear sign that debris is inside the impeller or the prefilter is clogged. It is the aquarist’s sole responsibility to insure the pump is maintained.Failure to do so will cause permanent damage to the pump. Hydrant Pump Parts A. O-rings (6) E. 1 1/4 in. barded intake B. 3/4 in. FPT adaptor F. 1 1/4 in. barbed output C. 1 in. FPT adaptor G. 3/4 - 1 in. barbed output D. Threaded pump adaptor (2)
- Page 5 Hydrant Pump Set-up:...
- Page 6 LIMITED WARRANTY Commodity Axis Inc.© warrants that ViaAqua® Hydrant Pump is free from defects for a period of one year from the initial date of purchase shown in the original cash register receipt. Commodity Axis Inc.© disclaims all other warranties of merchantability and/or fitness for a particular purpose.
