Modulex JIAKARI MMP-100F/30B/DL/3 Installation Manual page 2

Installation Guide Lighting Fixture
MUSEUM platform / Foundation downlight
MMP-100F/30B/DL/3

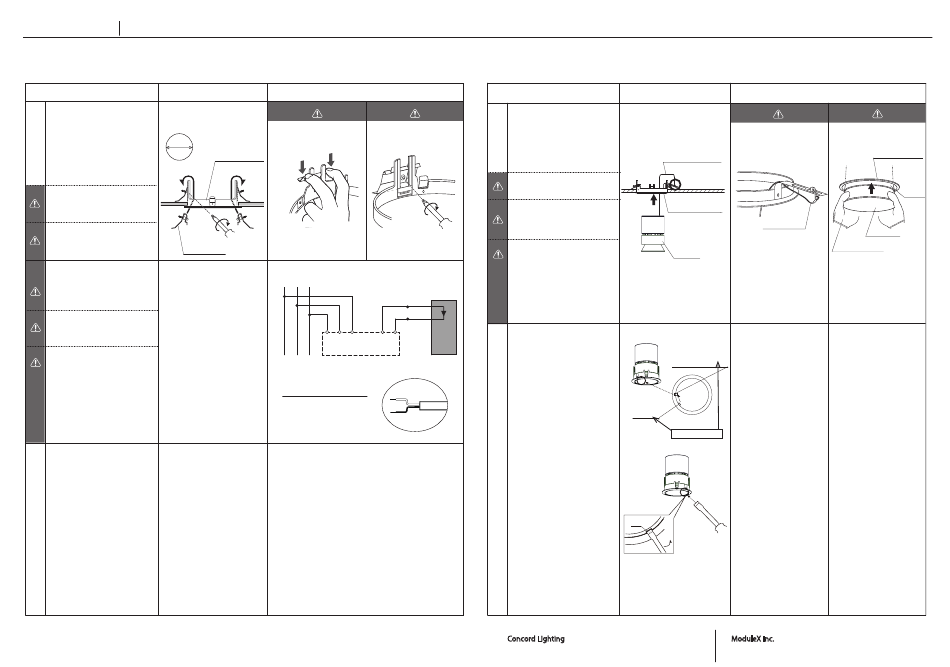

Installation Details Installation Diagram
Install the mounting equipment
for ceiling cut out
1
Ceiling cut out
1 Cut out a hole and install the
mounting frame.
Φ100
2 Slide the metal fittings from upper
side.
3 Use a screw driver and tighten the
metal fittings.
On step 2, please fix the metal
a fitting firmly with your fingers.
If not, it may cause falling of fixtures.
Make sure to tighten the metal
fittings securely with a screwdriver.
b
(torque 1.0 〜2.0 N・m) If it is loose,
Metal fitting
it may cause falling of the fixture.
Wiring connection
Please connect according to
the description of a power supply.
When connecting the driver,
careful attention should be
paid to connecting ＋ and −.
Metal part in a cable point,
please don't touch with bare
hand directly.
Caution
a
Mounting frame
2
Ceiling
3
Standard to screw
Push tight
torque 1.0〜2.0N・m
Wiring diagram
PE N L
DC900mA
35.8V
L N PE +
Driver
CAUTION！
Do not reverse polarity！
Installation Details
b
Installation to ceiling
1 Install the safety wire to the
mounting frame.
Install the fixture to the mounting
2
frame.
Make sure to install the safety wire
h
to the mounting frame securely.
Use clean soft cloth to clean up and
i
maintain inner side of the body.
Make sure the fixture will not touch
any objects in ceiling.
MAX
+RED
-BLACK
LED
Remove fixture from a ceiling
-
1
match the slit of the mounting frame
slit with an cone slit
＋ RED
2
Insert a screwdriver in a slit and
take off fixture
− BLACK
3
pull straight up the main body
from an implantation frame
（Contact）
Concord Lighting
5/F, Longbow House,14-20 Chiswell Street, London, EC1Y 4TW, UK
Tel : +44-01273-616649
Installation Diagram
h
Safety wire
1
Ceiling
2
Mounting frame
Safety wire
fixture
1
Mounting frame
slit
Cone slit
Match positions
2
Insert a screwdriver
in a slit
slit
flat head
screwdriver
（Manufacturer）
ModuleX Inc.
#21 AraiBldg, 1-20-6 Ebisu-Minami Shibuya-ku, Tokyo
Tel : +81-3-5768-3131
To install ModuleX safety
Caution
i
Mounting frame
Fixture
Inside
Clean gloves
