ANEL Elektronik NET-PwrCtrl Quick Start Manual

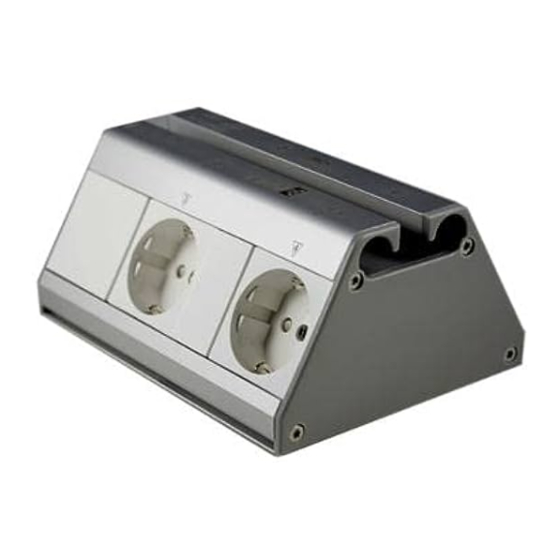

NET-PwrCtrl

Installation:

Connect the network cable and then the NET-PwrCtrl to the mains. The power LED
l
flashes fast in the first 3 seconds and then every second. Since most networks have a
DHCP server (also available in a DSL router), the network setting is automated.
Call in the internet browser with the address: http:// net-control.
l
If the bar does not answer, please check if the DHCP server is present in the network or
l
continue below the instructions "Without DHCP".
Power-LED

With DHCP

Since most networks have a DHCP server (also available in a DSL router), the network
setting is automated. After switching on the device, the DHCP function ensures the
allocation of all necessary parameters to be connected to the network.
The NET-PwrCtrl can be accessed via browser with the address: http: // net-control.

Without DHCP

Connect the NET-PwrCtrl and assign the following parameters to the network card:
IP: 192.168.0.1;
Subnet mask: 255.255.255.0.
The device can now be accessed via browser with the address: http://192.168.0.244 or
http: // net-control and the desire to be set.
Installationsanleitung_V4_en 04.19
(Power Control) V.4
Ethernet-Buchse:
Grüne LED = Ethernet angeschlossen
Orange LED = Datenübertragung
Stromnetz
Sicherung 10A + Ersatzsicherung
ANEL
Elektronik AG
U s e r : a d m i n
Password: anel
RESET
www.anel-elektronik.de
