T&S B-1200 Series Installation And Maintenance Instructions Manual

T&S B-1200 Series Installation And Maintenance Instructions Manual

Soft-touch glass fillers

Advertisement

Quick Links

Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product
is free from defects in material and workman-
ship for a period of one (1) year from the date
of purchase. During this one-year warranty
period, if the product is found to be defective,
T&S shall, at its options, repair and/or replace
it. To obtain warranty service, products must
be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S
and the return of repaired or replaced product
to the purchaser are the responsibility of the
purchaser. Repair and/or replacement shall be
made within a reasonable time after receipt by
T&S of the returned product. This warranty does
not cover Items which have received secondary
fi nishing or have been altered or modifi ed after
purchase, or for defects caused by physical
abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein,
and any remedy for Breach of Contract which
might arise, is hereby excluded and disclaimed.
Any implied warranties of merchantability or
fi tness for a particular purpose are limited to
one year in duration. Under no circumstances
shall T&S be liable for loss of use or any special
consequential costs, expenses or damages.
Some states do not allow limitations on
how long and implied warranty lasts or the
exclusion or limitation of incidental or conse-
quential damages, so the above limitations or
exclusions may not apply to you. Specifi c rights
under this warranty and other rights vary from
state to state.
P/N:
098-016883-45 Rev.2
Date:
04-26-12
Drawn:
TEH
Checked:
JRM 04-30-12
Approved:
JHB 05-01-12
Installation and
Maintenance
Instructions
B-1200
B-1210
B-1200 Series

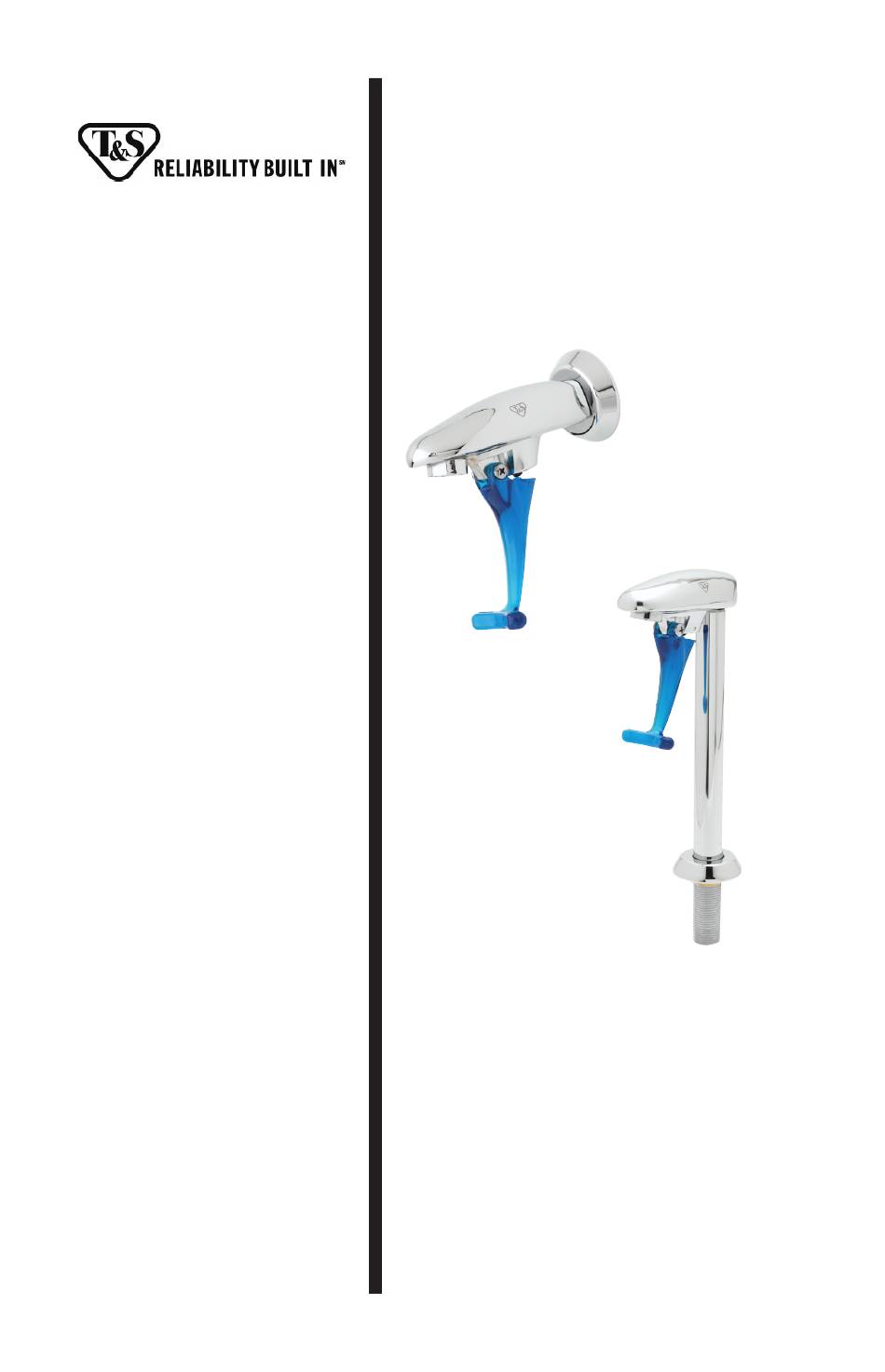

Soft-Touch Glass Fillers

Advertisement

loading

Summary of Contents for T&S B-1200 Series

  • Page 1 Under no circumstances shall T&S be liable for loss of use or any special consequential costs, expenses or damages. B-1200 Series Some states do not allow limitations on how long and implied warranty lasts or the...
  • Page 2: Exploded View

    Exploded View Wall Flange Repair Kit Valve Repair Lever Repair Kit Deck Flange Repair Kit...
  • Page 3: Part Number Guide

    Part Number Guide Glass Filler Assemblies Item Description Sales No. Tailpiece, 1/4” Sweat 000852-20 Locknut 000716-20 Nut, Coupling 000715-20 Nipple, 3/8” Supply 000379-20 Washer Body, Glass Filler Glass Filler Lever Repair Kit 015550-45 Lever Arm Screw, Handle Nut, Handle Adapter, 3/8” NPT-M x 7/8-18-M / 3/8” NPT-F Glass Filler Wall Flange Repair Kit 016782-40 Adjustable Wall Flange...
  • Page 4: General Instructions

    General Instructions Installation: (B-1200) Installation: (B-1210) 1. Turn off water supply and drain 1. Turn off water supply and drain lines. Hand tighten no.12 fi rmly lines. against no.6 and remove no.13 from 2. Unscrew and remove no.16 and no.11. no.17 from no.14.
  • Page 5 General Instructions For Retro-Fit of Glass Filler Only 1. Turn off water supply and drain lines. 2. Heat cube & unscrew glass fi ller from cube. 3. Apply Loctite 680, tefl on tape or joint compound to the threads of no.6. Screw into cube of no.14, then align and tighten no.6.
