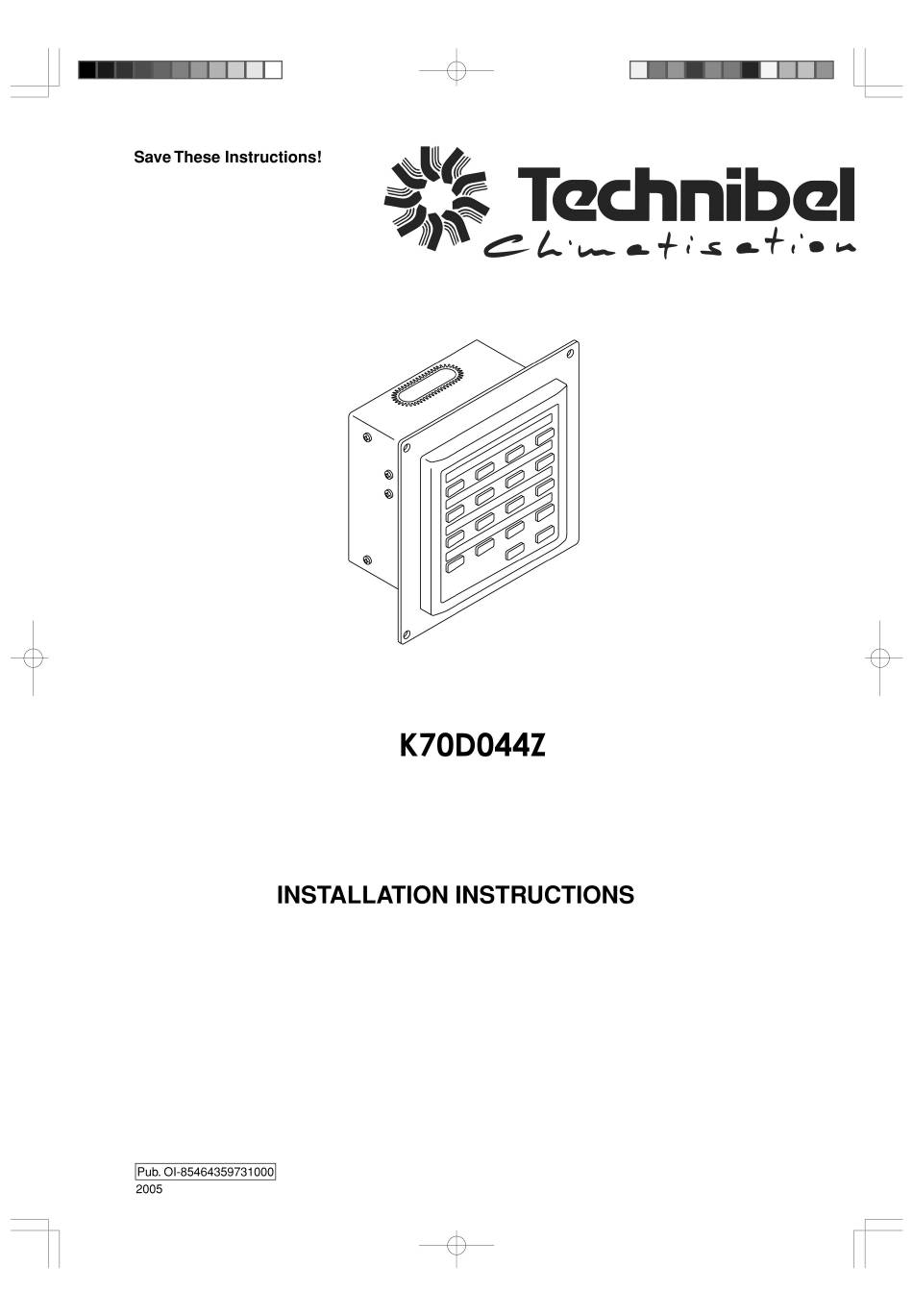

Technibel K70D044Z Series Installation Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K70D044Z Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Technibel K70D044Z Series

  • Page 2: Table Of Contents

    technibel_K70D044Z_Installation.fm Page 2 Friday, January 7, 2005 5:13 PM Contents Page Product Information................... 2 Alert Symbols....................2 Installation Location ..................3 Electrical Requirements ..................3 Safety Instructions..................... 3 1. General ......................4 2. Installation site selection ................4 3. How to install the ON/OFF controller ............4 Overview of the ON/OFF controller ............

  • Page 3: Installation Location

    technibel_K70D044Z_Installation.fm Page 3 Friday, January 7, 2005 5:13 PM Installation Location • We recommend that this ON/OFF controller be installed properly by qualified installation technicians in accordance with the Installation Instructions provided with the ON/OFF controller. • Do not install this ON/OFF controller where there are fumes or flammable gases, or in an extremely humid space such as a greenhouse.

  • Page 4: General

    technibel_K70D044Z_Installation.fm Page 4 Friday, January 7, 2005 5:13 PM 1. General This booklet briefly outlines where and how to install the ON/OFF controller. Please read over the entire set of instructions for the indoor and outdoor units and make sure all accessory parts listed are with the controller before beginning.

  • Page 5: Overview Of The On/Off Controller

    technibel_K70D044Z_Installation.fm Page 5 Friday, January 7, 2005 5:13 PM Overview of the ON/OFF controller Electrical component box Hole for electrical Unit: mm Control unit wiring Mounting plate (for flush mounting) 5 diameter holes Ø (for mounting) Hole for electrical wiring Rear plate 5.5 diameter holes (for mounting) Ø...

  • Page 6: Installation Procedure

    technibel_K70D044Z_Installation.fm Page 6 Friday, January 7, 2005 5:13 PM Installation procedure Mounting plate Electrical component box Hole for electrical wiring a): Normal mounting Rear plate Fig. 2 b): Flush mounting 1. Decide how the ON/OFF controller will be mounted: in the normal manner or flush with the wall.

  • Page 7: Layout Of Electrical Terminals

    technibel_K70D044Z_Installation.fm Page 7 Friday, January 7, 2005 5:13 PM Layout of electrical terminals Clamp for electrical wiring Connector (CN02) for weekly timer or schedule timer (optional) P.C. board CN02 Ground for power wiring B3 B2 B1 A3 A2 A1 Fig. 3 How to connect electrical wiring 1) Basic wiring Power supply (...

  • Page 8: Basic Wiring Diagram

    technibel_K70D044Z_Installation.fm Page 8 Friday, January 7, 2005 5:13 PM Basic wiring diagram Ensure that wiring connections are correct. (Incorrect wiring will CAUTION damage the equipment.) Outdoor Outdoor Outdoor Outdoor unit-1 unit-2 unit-m unit-3 m 30 ON/OFF Power supply controller 50 Hz/60 Hz 220 –...

  • Page 9: Dip Switch Setting

    technibel_K70D044Z_Installation.fm Page 9 Friday, January 7, 2005 5:13 PM 4. Dip switch setting PCB of the control unit Dip switch How to reach the P.C. board Remove the flat-top screw on the bottom of the back case. Raise the bottom of the control unit, and now remove the unit by sliding it upward.
  • Page 10 technibel_K70D044Z_Installation.fm Page 10 Friday, January 7, 2005 5:13 PM DIPSW1 DIPSW1 Zone address switches 2 3 4 5 6 7 8 Use these to set the zone addresses. 1(Central Adress 1-16) 2(Central Adress 17-32) 3(Central Adress 33-48) 4(Central Adress 49-64) ON/OFF controller main/sub selection switch This is normally used at the main (OFF) setting.

  • Page 11: Zone Address Setting

    technibel_K70D044Z_Installation.fm Page 11 Friday, January 7, 2005 5:13 PM 5. Zone address setting The zone addresses must be set (using #1 and #2 of DIPSW1) when the ON/OFF controllers are to be controlled in a multiple number of zones. • Set to zone 1 when the ON/OFF controller is to be used in one zone only.

  • Page 12: How To Perform Zone Registration

    technibel_K70D044Z_Installation.fm Page 12 Friday, January 7, 2005 5:13 PM 6. How to perform zone registration To operate the ON/OFF controller properly, zone registration is required after finishing the test run (and after setting all indoor unit addresses) using one of the following methods.

  • Page 13: Zone Registration Table

    technibel_K70D044Z_Installation.fm Page 13 Friday, January 7, 2005 5:13 PM ZONE registration table Indoor unit Indoor unit Central Unit Central Unit ZONE GROUP address ZONE GROUP address address location address location (UNIT No.) (UNIT No.) DIPSW DIPSW DIPSW DIPSW NOTE 1. Assign indoor unit addresses to the desired positions (central addresses) manually.

  • Page 14: (A) Zone Registration Using The Remote Controller (K70D036Z)

    technibel_K70D044Z_Installation.fm Page 14 Friday, January 7, 2005 5:13 PM (a) Zone registration using the remote controller (K70D036Z) (Determination of central address) ● In this case, after confirming which indoor unit is connected to the remote controller and that the air conditioner in the OFF state, you set the central addresses one at a time.

  • Page 15: (B) Zone Registration Using The System Controller (K70D043Z)

    technibel_K70D044Z_Installation.fm Page 15 Friday, January 7, 2005 5:13 PM (b) Zone registration using the system controller (K70D043Z) ● In this case, you set all Central addresses by system If no data is controller at once manually. registered no number (1) Press the buttons at the same time is displayed.

  • Page 16: (C) Automatic Zone Registration Using The System Controller (K70D043Z)

    technibel_K70D044Z_Installation.fm Page 16 Friday, January 7, 2005 5:13 PM (c) Automatic zone registration using the system controller (K70D043Z) (1) Press the buttons at the same time for more than 4 seconds. and CODE No. C1 will flash. (2) Select CODE. No. C2 by pressing ) button and press the button.

  • Page 17: How To Check Overlapping Of Central Address No

    technibel_K70D044Z_Installation.fm Page 17 Friday, January 7, 2005 5:13 PM 7. How to check overlapping of central address no. (1) Press the buttons at the same time for more than 4 seconds. and CODE No. C1 will flash. (2) Select CODE. No. C3 by pressing ) button and press the button.

  • Page 18: System Examples

    technibel_K70D044Z_Installation.fm Page 18 Friday, January 7, 2005 5:13 PM 8. System examples The following diagrams show system examples and the correct setting of the switches on the PCB. (1) For a system without link OI-731-18EG...
  • Page 19 technibel_K70D044Z_Installation.fm Page 19 Friday, January 7, 2005 5:13 PM (2) For a system with link OI-731-19EG...
  • Page 20 Per garantire un costante miglioramento dei nostri prodotti, ci riserviamo di modificarli senza preavviso. Par souci d’amélioration constante, nos produits peuvent être modifiés sans préavis. Unsere Produkte werden laufend verbessert und können Vorankündigung abgeändert Werden. En el interés de mejoras constantes, nuestros productos pueden modificarse sin aviso prévio. www.technibel.com...
