- Page 1 C a b i n e t S p e a k e r s O w n e r ’s M a n u a l Home Theater Direct Toll free: 866-HTD-AUDIO (483-2834) www.htd.com info@htd.com V.11.30.17 © Copyright Home Theater Direct, Inc.
-
Page 2: Safety Instructions
- Never plug the HTD Powered Subwoofer into the back of another electrical component. - We highly recommend plugging the HTD Powered Subwoofer into a power tree with surge protection. The amplifier that is packaged with the subwoofer in this instruction manual complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 3 Our mission is to produce home audio products with outstanding performance and build quality that will compete with other systems costing at least twice as much at retail. We achieve this through exceptional components, many of which are proprietary to HTD, and a business model that allows us to design, manufacture, and distribute our speakers in the most efficient and cost-effective way possible.
-
Page 4: Speaker Placement

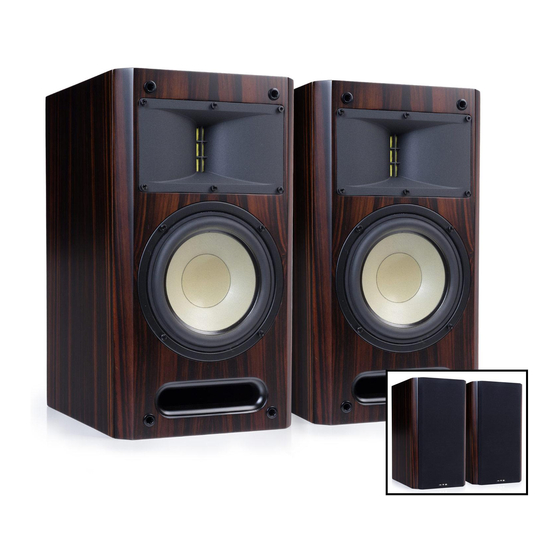

About HTD and our Cabinet-Style Product Lines (cont.) All of our speaker cabinets are cut using computer-managed machines and made of quality 1/2” to 1” MDF with internal bracing to minimize unwanted cabinet resonance. We never use cheap imitation vinyl wraps, instead our cabinets are painted with mid-gloss lacquer or expertly covered in gorgeous real wood veneers. - Page 5 Mounting Options Speaker stands position your HTD BR-TPR and BR-TPRX brackets are a bookshelf speakers at the proper great solution for wall or ceiling mounting our listening height. They also add a Level Two and Level Three bookshelf and touch of elegance and a custom center speakers.
- Page 6 Connecting the Powered Subwoofer Our new powered subwoofers include an innovative design that separates the amplifier from the subwoofer cabinet. This allows you to position the amplifier anywhere between your home theater receiver and the subwoofer. The amplifier is always connected to the receiver via a shielded powered subwoofer cable using the LFE output on the receiver and the LFE input on the amplifier.
- Page 7 Powered Subwoofer Settings Power Indicator LED Power Button Phase Switch Input Level Subwoofer Digital Amplifier SDA-200 80Hz Protect 40Hz 120Hz PHASE POWER CROSSOVER LEVEL Protection LED Crossover Control Binding Posts LFE Inputs Auto-On Switch AMPLIFIER INPUT I R I N SPEAKERS I R I N POWER...
-
Page 8: Warranty
.1 channel, e.g. stereo. For most listeners, the answer should be “yes”. Warranty All HTD speakers carry a five-year parts and labor warranty. All HTD electronics (amplifiers, controllers, etc.) carry a two-year parts and labor warranty. Warranty registration occurred automatically at the time your order was placed.
