Reece Atlantis Glacier SFK-GL-HR Installation Instructions Manual

Hinged shower system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SFK-GL-HR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atlantis Glacier SFK-GL-HR and is the answer not in the manual?

Questions and answers

Summary of Contents for Reece Atlantis Glacier SFK-GL-HR

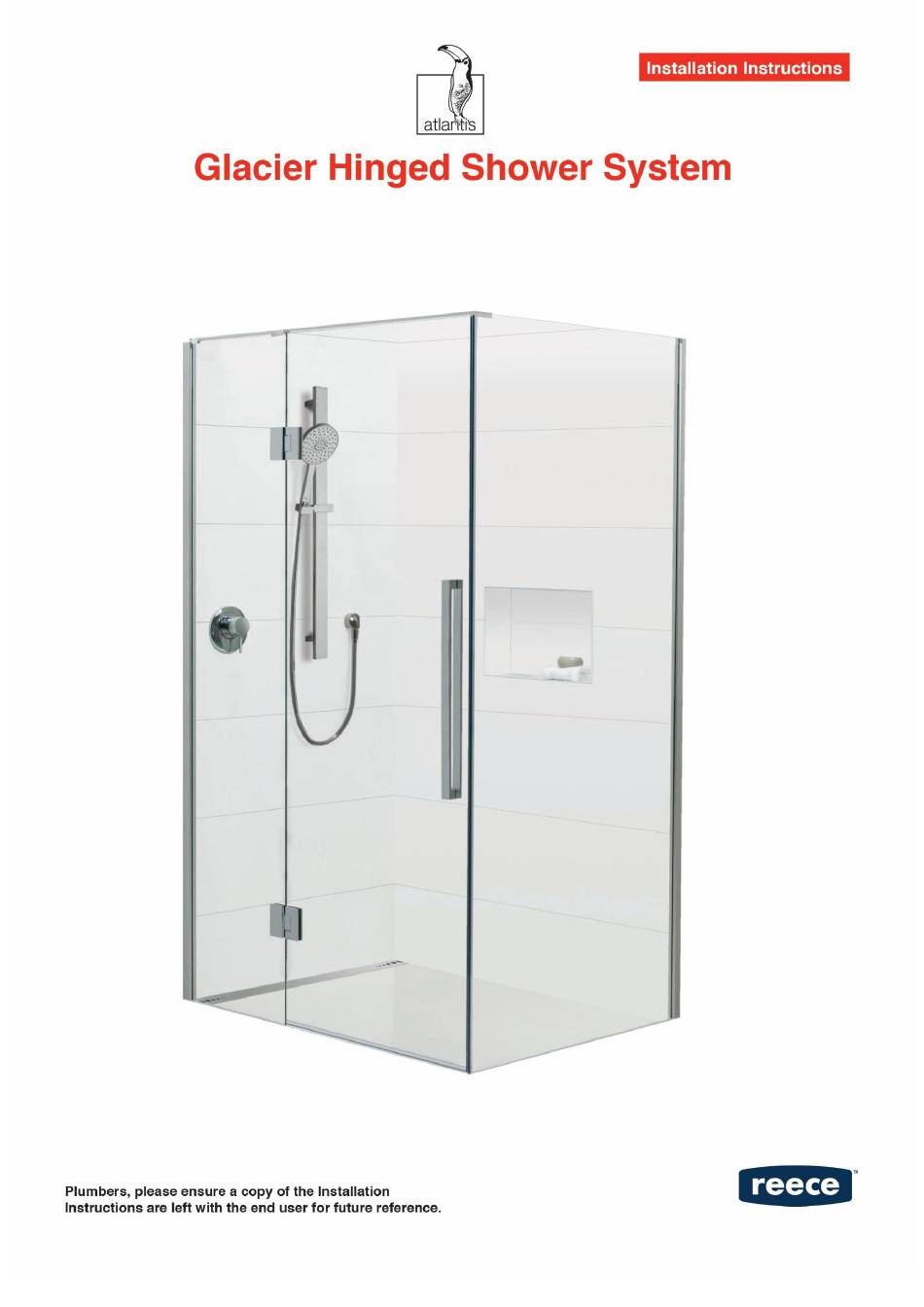

  • Page 1 SFK-GL-HR...
  • Page 2 HINGING SCREEN FITTING INSTRUCTIONS – HR Components: Other equipment required:  Bag 1 – Allen Keys Caulking Gun  Bag 11 - Packers Drill  Clear Silicon Level  Handles Set E-500 Pencil  Hinges adjustable – STD Tape Measure ...
  • Page 3 GLASS RECEIVER CHANNEL MUST BE INSTALLED ONTO THE WATERPROOFING BEFORE THE WALLS ARE TILED INSTRUCTIONS FOR 2 WALL SYSTEM 4. Ensure the glass receiver channels are located firmly over the base glazing 1. Choose door location. channels. Locate the framing timber. Use the 4mm drill bit to drill holes through the glass receiver channels.

  • Page 4: Glass Installation

    TILED WALLS - apply an additional bead of GLASS INSTALLATION silicon to the inside of the waterproofing Keep glass standing upright. Once package containing glass is opened, check glass is facing same direction up as label, do not sit glass directly on floor, always sit glass on polystyrene packaging or similar padded surface.
  • Page 5 7. CRITICAL SEAL 9. INSTALLATION OF FIXED PANEL Locate panel C into the glazing channels. Remove the dust and dirt first. Seal The top of panel B must be level with the the connection between the glass top of panel C. Adjust the height of the receiver channel panel if necessary by adding or removing and the base...

  • Page 6: Hinge Installation

    11. FASTENING GLASS 13. CLEARANCE UNDER DOOR Secure the glass panels into the receiver Place 6mm Spacers over the door infill channels by tightening hex key screws before the installation of the glass door. firmly with hex key supplied. DO NOT OVERTIGHTEN.

  • Page 7: Door Installation

    15. DOOR INSTALLATION DOOR REALIGNMENT Hinges should be in the closed position Use 3mm hex key (in line) before attempt in to install the to loosen the cap glass door. screws near the, Slide the door into the hinges. Centre the align the door to door between the side panels and tighten desired position...

  • Page 8: Handle Installation

    17. HANDLE INSTALLATION Assemble the handles as shown. 2 Wall LH Screen IF NECESSARY, TRIM 18. METAL TOP BRACE INSTALLATION THIS END OF THE TOP BRACE TO LENGTH Place the Top Brace onto the fixed glass panels in the position as shown. Lightly tighten grub screws.
  • Page 9 19. SILICON APPLICATION 20. INSTALLATION OF BOTTOM DOOR SEAL Mask the glazing channels and glass at the Trim to length if necessary. Clip onto the intersections as shown. Apply clear silicon bottom of the door. Ensure the sloping to the inside and outside of the glass face is inside the shower.
  • Page 10 GLASS RECEIVER CHANNELS MUST BE INSTALLED ONTO THE WATERPROOFING BEFORE THE WALLS ARE TILED. INSTRUCTIONS FOR 3 WALL SYSTEM 1. Choose door direction. 4. Ensure the glass receiver channels are located firmly over the base glazing 2. Position the glass receiver channels over channels.
  • Page 11 Apply a 10mm continuous bead of Sika GLASS INSTALLATION Artic White silicon, to the full length of Keep glass standing upright. Once package each wall channel. Silicon seal the join containing glass is opened, check glass is where the wall and base channel will facing same direction up as label, do not intersect.
  • Page 12 9. SILL INFILL 7. CRITICAL SEAL Apply a continuous bead of clear silicon to Remove dust and dirt first. Seal the each inside face of the base channel. connection Ensure the ends of the infill are sealed between the and place into the base channel in the glass receiver location as shown.

  • Page 13: Adjustable Hinges

    12. CLEARANCE UNDER DOOR 14. ADJUSTABLE HINGES Place 6mm Spacers over the door infill Atlantis showers are now supplied with before the installation of the glass door. adjustable hinges COVER PLATE REMOVAL Remove the cover plate with the small grub screw on the top of the hinge cover using 1.5mm key.

  • Page 14: Door Clearance

    17. DOOR CLEARANCE REFIT COVER PLATE Ensure bolt heads are on the outside of the shower. Fit to glass and tighten until you hear a squeaking you sound. Refit cover plate with 1.5mm hex key. DOOR REALIGNMENT Use 3mm key on the cap screws near the pivot to loosen the screws, align the door...

  • Page 15: Installation

    19. TOP BRACE ASSEMBLY AND 21. INSTALLATION OF BOTTOM DOOR SEAL INSTALLATION Trim to length if necessary. Clip onto the Place the Top Brace onto the fixed glass bottom of the door. Ensure the sloping panels as shown. Lightly tighten the grub face is inside the shower.
