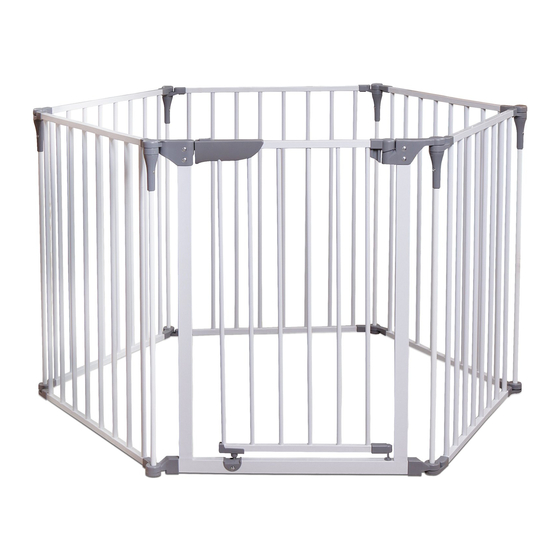

Tee-Zed dreambaby Royale Converta 3-in-1 Play-Pen Gate Instructions

IMPORTANT!·READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY
AND KEEP FOR FUTURE REFERENCE
Read the entire instructions before assembling and inst{llling this product.
If you sell or give away this product, make sure you give this-instruction to the new owner.
Complies with Standards: EN 12227:2010.
A
WARNING
• Suitable for children up to 24 months.
• Ensure that the Play-Pen is fully erected and all the locking
rnechanisrns engaged before placing your child in this Play-Pen.
• Do not place the Play-Pen close to an open fire or other heat
source. Ensure the Fireplace Barrier is installed at least
60cm/23.5in from fire source.
• This product does not replace adult supervision.
Never leave a child unattended.
• Never use with a child able to climb over or dislodge/open the
Play-Pen/Fireplace Barrier/Wide Barrier Gate.
• Do not leave anything in the playpen which may provide a
foothold for climbing.
• The safety barrier is for domestic use only.
• The gate panel has a manual close system.
• The safety barrier must not be fitted across windows,
• Do not use if any components are missing or damaged.
• This Play-pen is not intended for sleep u~e.
COMPONENTS
A GATE PANEL
B BARRIER PANEL
C UPPER SECURING HINGE
D SECURING SCREW
E LOWER HINGE
F VERTICAL BAR
G VERTICAL BAR TOP CASING
H GATE RELEASE SWITCH
GATE UPPER LOCK
J GATE LOWER LOCK
WALL MOUNTING PARTS
K UPPER MOUNT I Side XI
L UPPER MOUNT
I
Side Y
I
M LOWER MOUNTS
N SCREWS [38mm/ 1.5in!
o
LOWER HINGE CAP
P FLOOR CAP
REQUIRED FOR
ASSEMBLY!MOUNTING
Q ALLEN KEY [4mm!
NOTE: Store Allen Key safely
out of reach of children.
Keep for future use .
. 11\
WARNING:
This package contains small parts and
~ sharp points in an unassembled state. Keep out
of reach of children. Adult assembly required.
~D
Q~1
F
