ASSEMBLY INSTRUCTIONS:
PRO-VIEW
POOLSIDE BASKETBALL GAME
FIGURE 1
ADJUSTABLE HEIGHT
™
ITEM NO. 72850
Assembly Instructions:
Please review all figures BEFORE
assembling. See page 4 for required tools.

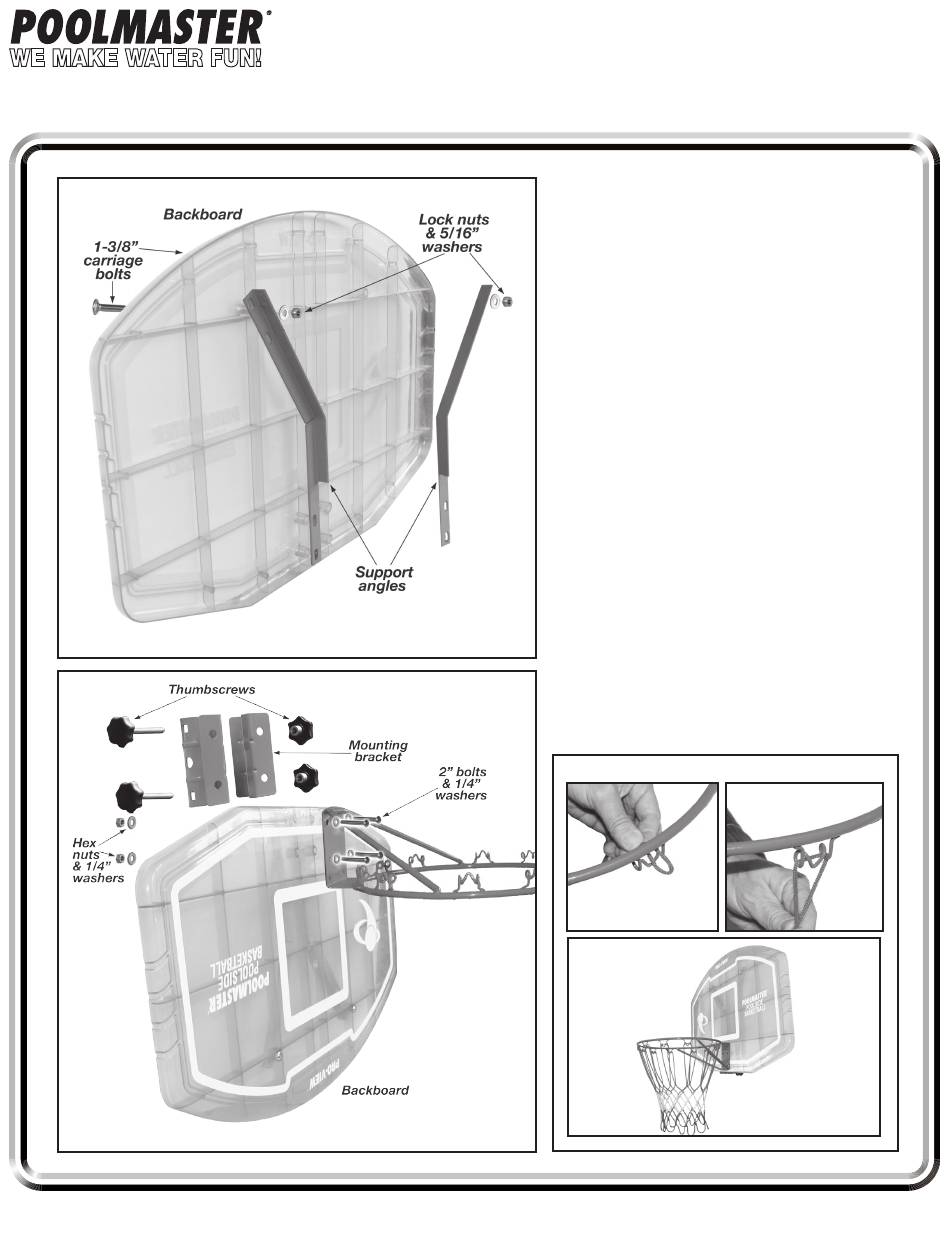

1. Backboard Assembly

• Locate the right left support angles
(they are not interchangeable)
(FIGURE ) Align the top holes in
support angles with upper holes on
the backboard. Secure with (2) -3/8"
carriage bolts and (2) /2" washers and
(2) shoulder nuts. (feed bolts from the
front of the backboard).
• Turn the backboard upside down. Align
holes (one hole at a time) on hoop with
holes in the backboard, support angles
and mounting brackets (FIGURE 2).
Secure with (4) -3/4" bolts and (8) 5/6"
washers and (4) hex nuts (as pictured).
Tighten when bolts are in place.
• Hang the net: thread the loop of netting
(from the inside of of the hoop) through
the eyelet. Then push the loop down and
over the middle of the eyelet and pull
tight. Repeat for all eyelets.
Hang the Net
Eyelet
