Summary of Contents for Menards MasterForce 260-9521

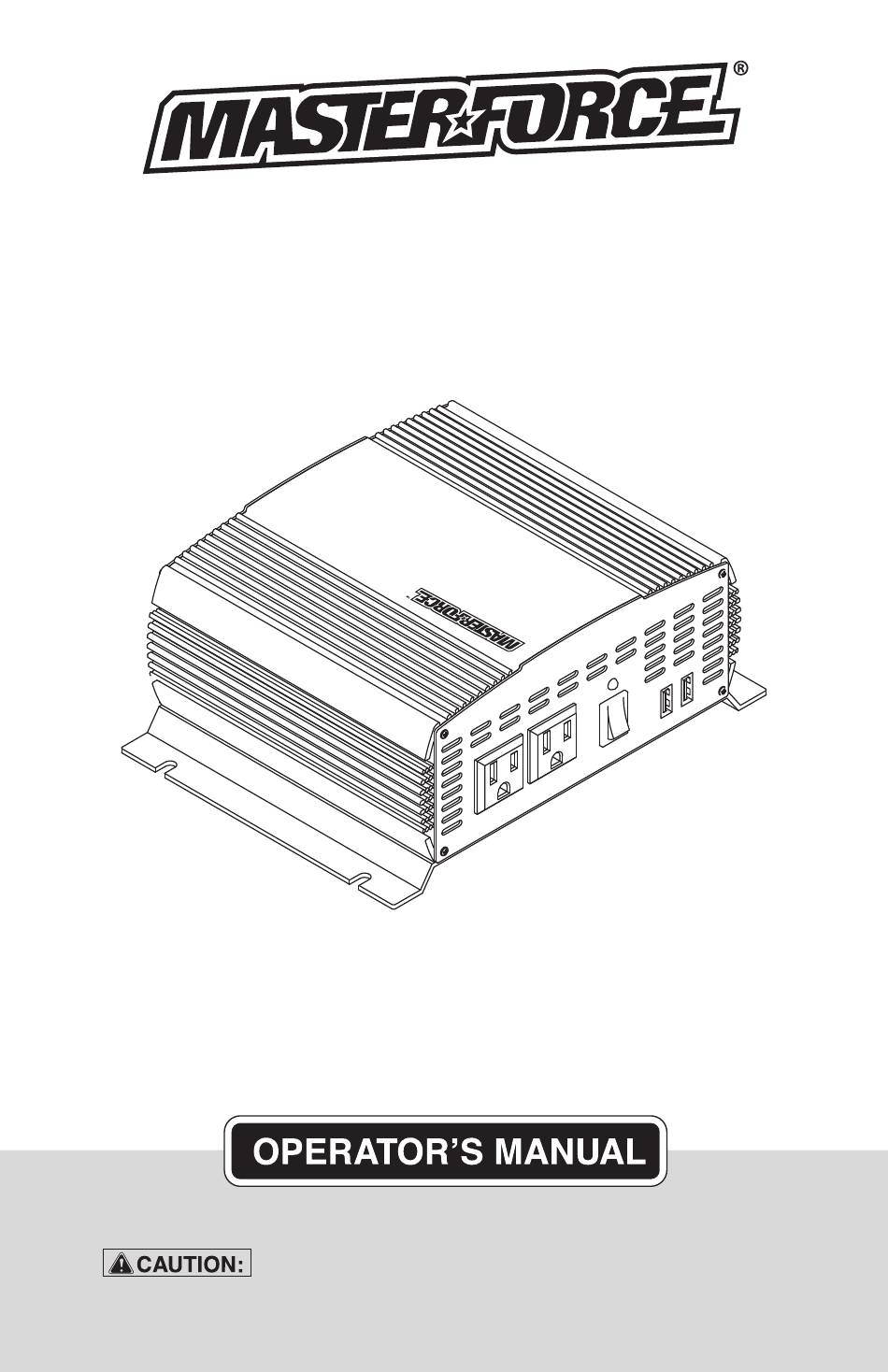

- Page 1 1500W Power Converter 260-9521 To Reduce The Risk Of Injury, User Must Read And Understand Operator’s Manual. Save These Instructions For Future Reference. 0099002205-00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols ................Page 3 Safety Information ................Page 4 Important Safety Instructions ............Page 5 Personal Precautions ..............Page 6 Converter Location .................Page 6 Features ..................Page 6 Specifications .................Page 7 Replacement Parts .................Page 7 Before Using Your Converter ............Page 7 Fastening the Converter to a Flat Surface ........Page 8 Connecting Converter Cables ............Page 8 Battery Bank Instructions ..............Page 9... -
Page 3: Safety Symbols
SAFETY SYMBOLS Some of the following symbols may be used on your converter Please study them and learn their meaning. Proper interpretation of these symbols will allow better and safer operation of the converter. Symbol Name Designation/Explanation Volts Voltage Amperes Current Hertz Frequency... -
Page 4: Safety Information
SAFETY INFORMATION The purpose of safety symbols is to attract our attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The symbol warnings do not by themselves eliminate any danger. The instructions and warnings they give are no substitutes for proper accident pre- vention measures. -
Page 5: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS 1.1 SAVE THESE INSTRUCTIONS – This 1.12 DO NOT operate the converter if you, manual contains important safety and the converter, the device being oper- operating instructions for converter ated or any other surfaces that may model 260-9521. -
Page 6: Personal Precautions
2. PERSONAL PRECAUTIONS 2.1 Restrictions on Use: This converter 2.3 Remove all personal metal items from may not be used with life support your body, such as rings, bracelets, devices or systems. Failure of this con- necklaces and watches. A lead-acid verter can reasonably be expected to battery can produce a short circuit cause failure of that life support device... -
Page 7: Specifications
5. SPECIFICATIONS Nominal input voltage ..............12.8-13.2 VDC Nominal output voltage ..............110-125 VAC Output frequency ................60 Hz ± 3 Hz Operating input voltage ..............10.5-15.5 VDC Continuous output power ..............Up to 1500 W Surge output power (0.1 second) .............. 3000 W Waveform ................Modified sine wave Maximum efficiency .................. -
Page 8: Fastening The Converter To A Flat Surface
IMPORTANT: Always run a test to establish Using the converter with any of these whether the converter will operate a par- devices may cause the device to run ticular piece of equipment or device. In the warmer or overheat. event of a power overload, the converter is designed to automatically shut down. -
Page 9: Battery Bank Instructions
TO GROUND THE CONVERTER Fig. 3 1. Turn off and disconnect the converter. Split 2. Locate the chassis ground screw on the Hex nut lock back of the converter. Flat 3. Remove the outer hex nut and loosen washer the second hex nut. Ring Converter connector... -
Page 10: Operating Instructions
• Connect Only similar batteries together a positive terminal of another) instead in a battery bank. Do not connect old of in parallel. to new, flooded to gel cells, or batteries 6. Carefully examine the diagram and with different capacities. correct the wiring before attaching to the converter. -
Page 11: Power Source
IMPORTANT: Using the converter with Filters” to the television power cord. Fer- some rechargeable devices may damage rite Data Line Filters can be purchased the converter and/or device. If you are at most electronic supply stores. using the converter to operate a recharge- 4. -
Page 12: Led Indicator And Shutdown Protection
13. LED INDICATOR AND SHUTDOWN PROTECTION 3. The continuous load demand from the The Green LED lights automatically when then converter is plugged into a 12 volt DC equipment or device being operated power source and is turned on. The Red exceeds the continuous load rating of the converter. -
Page 13: Troubleshooting
16. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Low or no output voltage. Poor contact at terminals. Disconnect and reconnect the 12V connections. Using incorrect type of Use a true RMS reading voltmeter to test output meter. voltage. Red LED is lit. The battery voltage is Recharge or replace the below 10 volts. -
Page 14: Warranty
MASTERFORCE™ product breaks or fails due to a defect in material or work- manship within three (3) years from the date of original purchase, simply bring the item with the original sales receipt back to your nearest MENARDS retail ®... - Page 15 NOTES Page 15...
- Page 16 © 2020 Menard, Inc., Eau Claire, WI 54703 03/2020...
