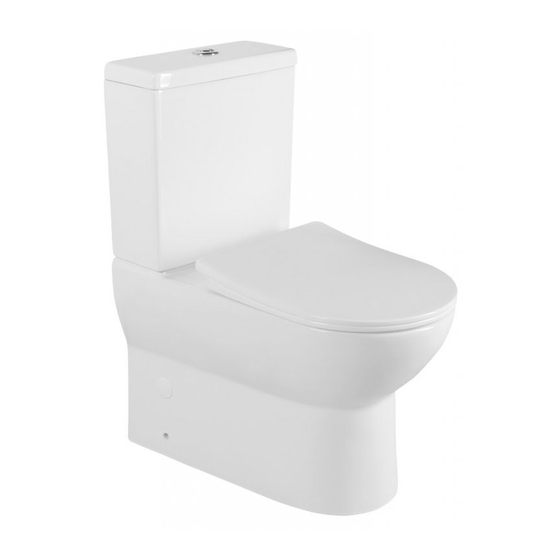

JALTA PB103
WC pan S-trap/P-trap, cistern with flush mechanism
Installation manual
•
Before you begin, carefully inspect the new toilet for visible demage or manufacturing faults.
•
Read the installation manual befor you proceed to installation.
Technical drawing
•
Assemble the cistern to the pan
[Zade
Possibility of changing to S-trap by adding WC flexible connection (not included)
Important:
•
Do not use abrasive cleaners/materials .
Warranty conditions:
Warranty does not cover:
•
Defects caused by the installation contrary to content of the manual.
•
Damage caused as a result of modifications and design changes made by the user or any third party.
•
Mechanical damages.
•
Valve malfunction due to pollution caused by chemical agents dispensed into tank.
Advertisement
Table of Contents
Related Manuals for Aqualine JALTA PB103
Summary of Contents for Aqualine JALTA PB103
- Page 1 JALTA PB103 WC pan S-trap/P-trap, cistern with flush mechanism Installation manual • Before you begin, carefully inspect the new toilet for visible demage or manufacturing faults. Possibility of changing to S-trap by adding WC flexible connection (not included) • Read the installation manual befor you proceed to installation.
- Page 2 Installation of Flush Valve JALTA PB103 WC pan S-trap/P-trap, cistern with flush mechanism Installation of fill valve 1. Rotate the Body of Flush Valve anticlockwise and také it out from Base. Unscrew Round nut and Nut collar in turn from Flush valve.
