DHP 4019257 Instruction Booklet

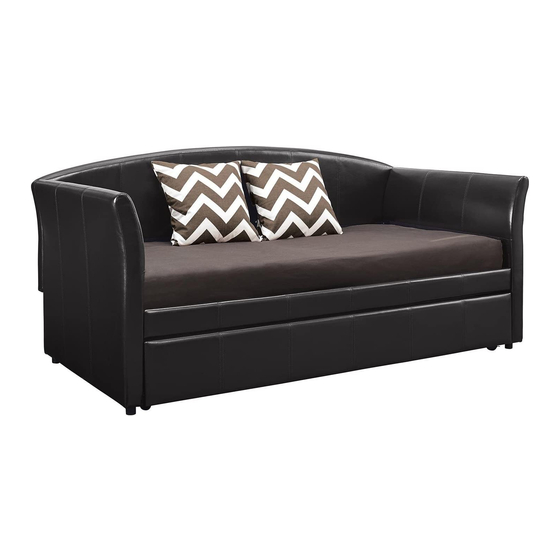

Halle upholstered daybed and trundle
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

WARNING

infants and babies must not sleep on this bed for safety reasons. To prevent injury and damage to this unit, PROHIBIT jumping on it.
IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4019257
Halle Upholstered Daybed and Trundle
DO NOT RETURN PRODUCT TO THE
STORE
STOP
Individual stores do not stock parts.
If a part is missing or damaged, call our
toll-free customer service line. We will
gladly ship your replacement parts FREE
of charge.
1-800-267-1739
Need Parts or Assistance?
or access our website
www.dhpfurniture.com
For prompt, reliable service, please have your assembly
manual ready.
Date of Purchase
___ / ___ / ___
Lot Number
_________
B34401925700-10125-M
Dark Brown

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4019257 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DHP 4019257

Summary of Contents for DHP 4019257

  • Page 1 4019257 Halle Upholstered Daybed and Trundle Dark Brown DO NOT RETURN PRODUCT TO THE STORE STOP Individual stores do not stock parts. If a part is missing or damaged, call our toll-free customer service line. We will gladly ship your replacement parts FREE of charge.
  • Page 4 PARTS:DAYBED FRONT RAIL 01 LEFT BRACKET RIGHT BRACKET BACK REST RIGHT ARMREST LEFT ARMREST T926250 T393050 T393060 T926240 T926260 T926270 SINGLE SLAT CAP DOUBLE SLAT CAP T926370 T926380 T926310 x 26 x 13 CENTER BRACE REAR BRACE FRONT/REAR RAIL T926280 T926290 T926300 END CAP 01...
  • Page 5 PARTS:TRUNDLE FRONT PANEL SIDE RAIL REAR RAIL FRONT RAIL 02 WOODEN SLATS T926320 T926330 T926340 T926350 T926360 x 24 SINGLE SLAT CAP DOUBLE SLAT CAP CASTER LOCKING CASTER T926370 T926380 T393000 T392990 x 24 x 12 END CAP 03 T393100 Note: "W"...
  • Page 6 HARDWARE PACK:DAYBED HEX KEY BOLT 1/4"X 3/4" BOLT 1/4" X 1 3/16" BOLT x 34 1/4" X 1 9/16" x 14 NOTE: Please do not completely tighten any hardware, until the entire assembly is complete.Once completed, please be sure to properly tighten all the hardware. 6 / 35...
  • Page 7 HARDWARE PACK:TRUNDLE HEX KEY 1/4" WRENCH 01 BOLT WRENCH 02 BOLT 1/4" X 1 3/8" 1/4"X 1 9/16" NOTE: Please do not completely tighten any hardware, until the entire assembly is complete.Once completed, please be sure to properly tighten all the hardware. 7 / 35...
  • Page 8 NOTE: The following instructions will illustrate how to assemble the Daybed from Step 1 to Step 10. Please use the Daybed Hardware Pack:T4019257A-00 . 1.1 Attach (Z) to (C,D); 1.2 Screw BOLT (2) to (C,D), don't completely tighten. NOTE: Please remove the protective plastic cap on the tip of thread before assembling.
  • Page 9 2.1 Attach (T) to (B) with BOLT (1); 2.2 Attach (S) to (B) with BOLT (1).
  • Page 11 11 / 35...
  • Page 12 Attach (E) to (B) with BOLT (3).
  • Page 14 Attach (F) to (C,D) with BOLT (2), then properly tighten all the BOLTS. NOTE: Holes on part (F) should be facing upward.
  • Page 15 Attach (K) to (C,D) with BOLT (3).
  • Page 16 16 / 35...
  • Page 17 10.1 10.2 10.3 17 / 35...
  • Page 18 NOTE: Holes on part (H) should be facing upward. NOTE: Slat holes on part (I,J) should be facing downward.
  • Page 23 How to use Trundle for storage: 16.1 To unlock the caster, please pull up on the lever, as illustrated in 16.1, then push the Trundle underneath the Daybed. 16.2 To lock the caster, please push down on the lever, as illustrated in 16.2.
  • Page 24 How to use Trundle for bed: 17.1 To unlock the caster, please pull up on the lever, as illustrated in 17.1, then pull the Trundle from the underneath of Daybed. 17.2 To lock the caster, please push down on the lever, as illustrated in 17.2. For your safety, don't allow horseplay or jumping on the trundle.
  • Page 25 THE DAYBED OR TRUNDLE, PROHIBIT MORE THAN TWO PERSON SITTING ON THE DAYBED.
  • Page 27 1) TORNILLO 1/4" X 1 3/8" - CANTIDAD: 6 2) TORNILLO 1/4" X 1 9/16" - CANTIDAD: 6 3) TUERCA 1/4" - CANTIDAD: 6 4) LLAVE HEXAGONAL 4 mm - CANTIDAD: 1 5) LLAVE 01 - CANTIDAD: 1 6) LLAVE 02 - CANTIDAD: 1 Paquete De Componentes: T4019257B-00 NOTA:Por favor, no apriete completamente los tornillos hasta que el todo el conjunto se...
  • Page 32 PAGE 05 G) Panneau avant - T926320 - - T926330 - J) Rail Avant 02 - T926350 - O) Lattes de bois - T P) Roulette de verrouillage - T392990 - N) Roulette - T393000 - X) capuchon simple - T Y) capuchon double - T PAGE 07 1) BOULON 1/4"...
  • Page 35 Visitez www.dhpfurniture.com AVANT DE COMMENCER L'ASSEMBLAGE LES CONSEILS UTILES frais. l'assemblage. personnes pour soulever et transporter le mobilier vers son nouvel emplacement. Informations sur la garantie Visitez notre siteweb: www.dhpfurniture.com 410E, First Street South, Wright City, MO 63390 , USA Attention: Consumer Service.
