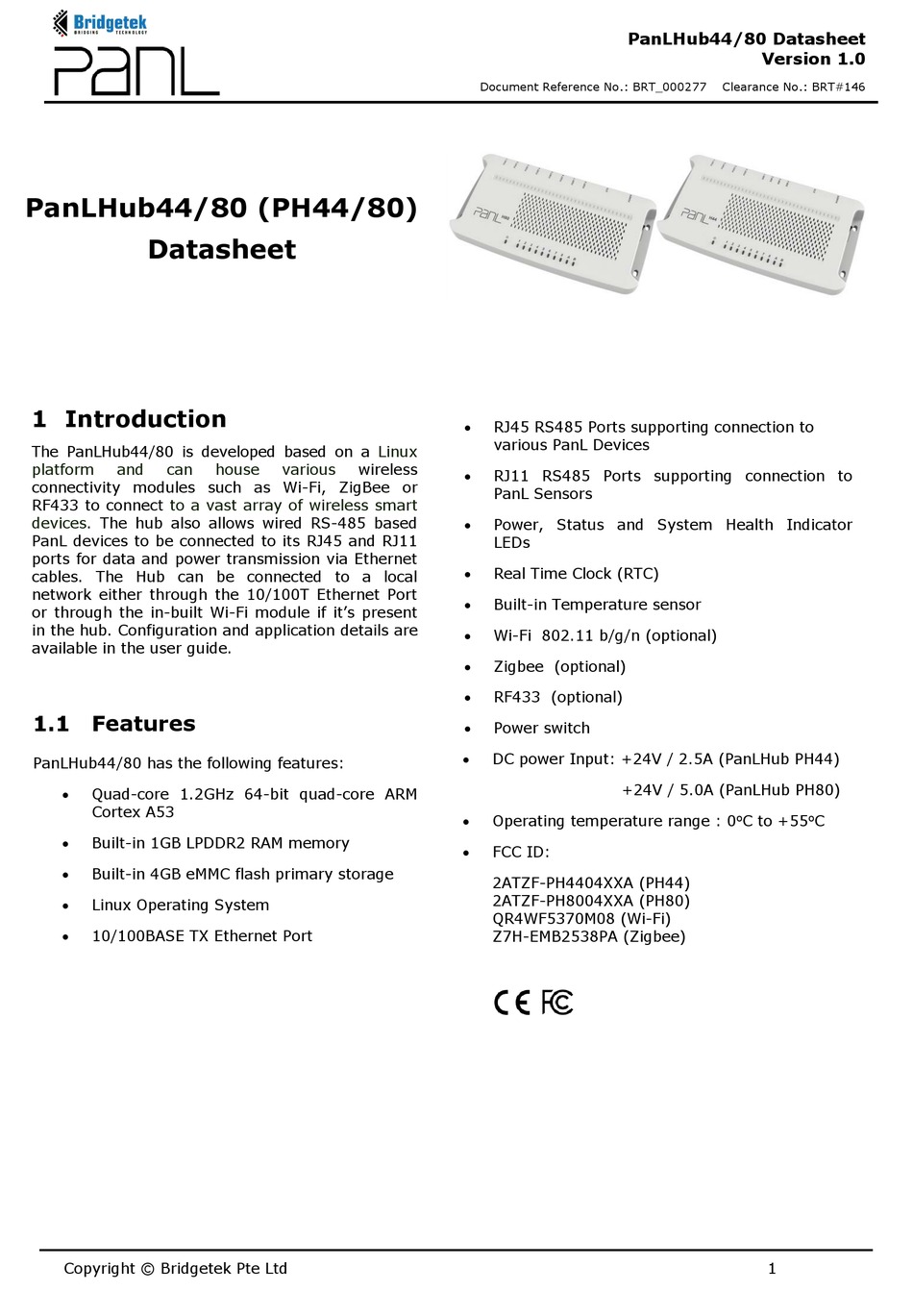

Bridgetek PANL Series Datasheet

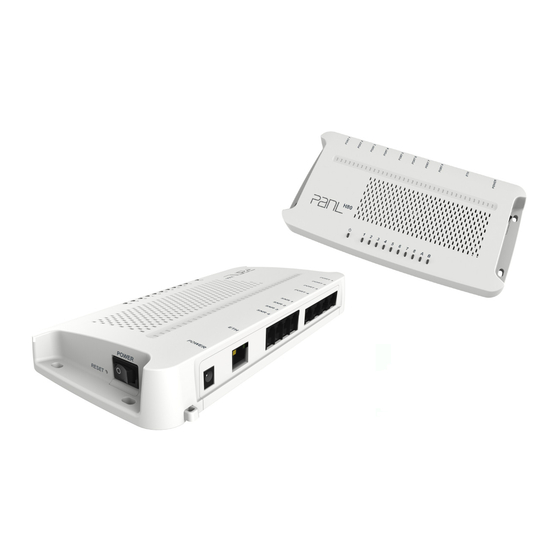

PanLHub44/80 (PH44/80)
Datasheet

1 Introduction

The PanLHub44/80 is developed based on a
platform and can
connectivity modules such as Wi-Fi, ZigBee or
RF433 to connect to a vast array of wireless smart
devices. The hub also allows wired RS-485 based
PanL devices to be connected to its RJ45 and RJ11
ports for data and power transmission via Ethernet
cables. The Hub can be connected to a local
network either through the 10/100T Ethernet Port
or through the in-built Wi-Fi module if it's present
in the hub. Configuration and application details are
available in the user guide.

1.1 Features

PanLHub44/80 has the following features:

Quad-core 1.2GHz 64-bit quad-core ARM
Cortex A53

Built-in 1GB LPDDR2 RAM memory

Built-in 4GB eMMC flash primary storage

Linux Operating System

10/100BASE TX Ethernet Port
Copyright © Bridgetek Pte Ltd
Linux
house various wireless
PanLHub44/80 Datasheet
Document Reference No.: BRT_000277

RJ45 RS485 Ports supporting connection to
various PanL Devices

RJ11 RS485 Ports supporting connection to
PanL Sensors

Power, Status and System Health Indicator
LEDs

Real Time Clock (RTC)

Built-in Temperature sensor

Wi-Fi 802.11 b/g/n (optional)

Zigbee (optional)

RF433 (optional)

Power switch

DC power Input: +24V / 2.5A (PanLHub PH44)
+24V / 5.0A (PanLHub PH80)

Operating temperature range : 0

FCC ID:
2ATZF-PH4404XXA (PH44)
2ATZF-PH8004XXA (PH80)
QR4WF5370M08 (Wi-Fi)
Z7H-EMB2538PA (Zigbee)
Version 1.0
Clearance No.: BRT#146
o o
C to +55 C
1
