1. INTROUDUCTION
SUNERGY USA WORKS LLC is a high-tech company engaged in development, research, production,
sales, and service of solar panels, and photovoltaic systems.
SUNERGY USA WORKS LLC supply products to more than 60 countries and regions on five
continents, such as Germany, Spain, Italy, America, Canada, Korea, Japan, and China and so on. Our
solar panels are widely used in commercial, residential and industrial solar power system
(on-grid&off-grid), PV power station and many other different regions.
SUNERGY USA WORKS LLC is located in 1330 St.Mary's Street, Ste.330, Raleign, NC, 27605,
WAKE, USA
1.1 POWER MODULE

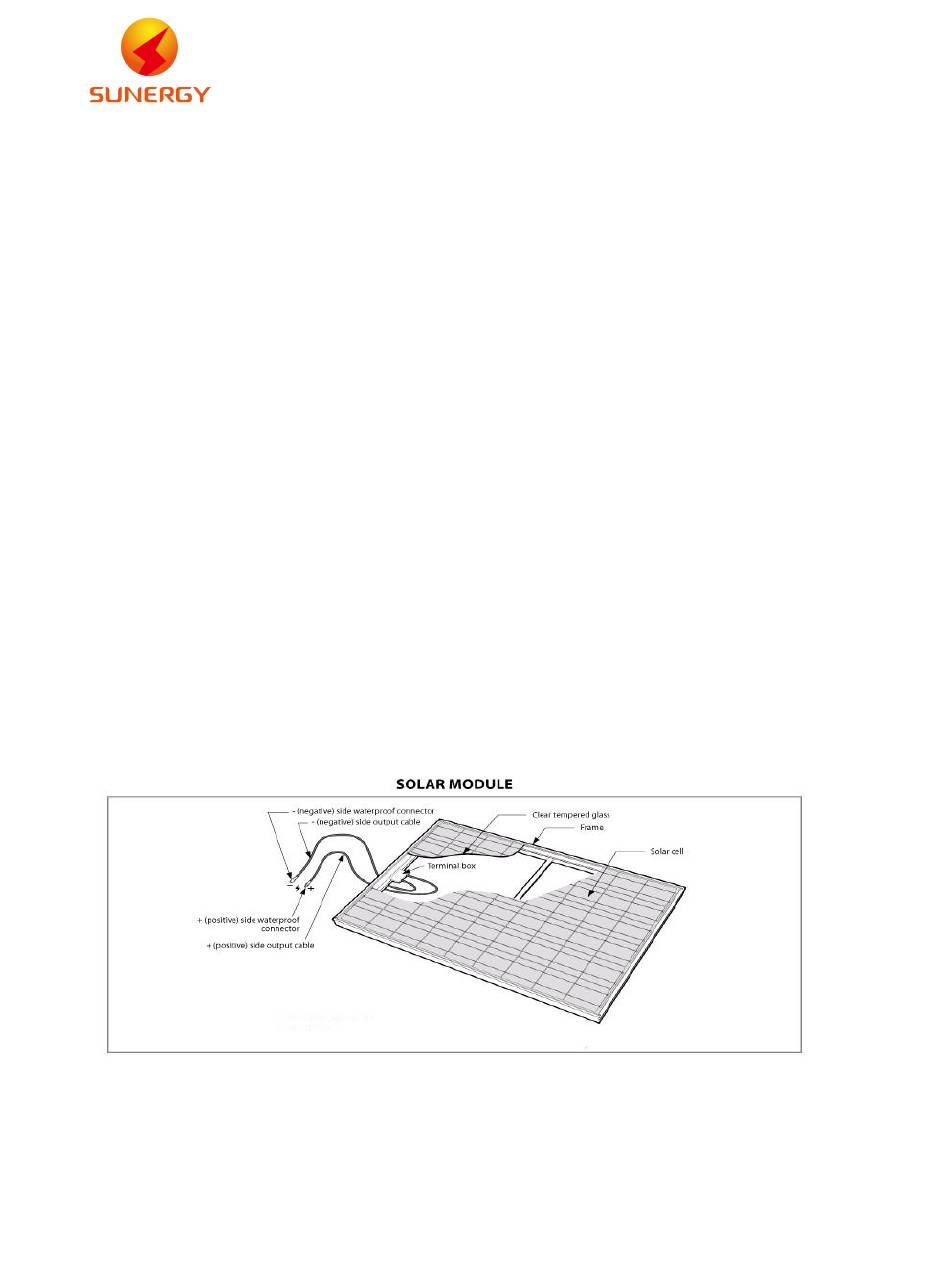

SUNERGY USA WORKS LLC Solar Photovoltaic modules consist of a series of electrically
interconnected crystalline silicon solar cells. Which are permanently encapsulated between a
tempered glass superstrate and substrate. The entire laminate is secured within an anodized
aluminum frame for structural strength; ease of installation and to protect the cells from the most
severe environmental conditions.
1.2 Label
Each module has a label on its rear side providing the following information: the product type, rated
power, rated current, rated voltage, open circuit voltage, short circuit current, all as measured
under standard test conditions, and weight, dimension, the maximum system voltage, maximum
fuse rating and so on.
Each module has only one bar code as shown below:
SUNERGY USA WORKS LLC
INSTALLATION INSTRUCTION MANUAL
CRYSTALLINE PV MODULE
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

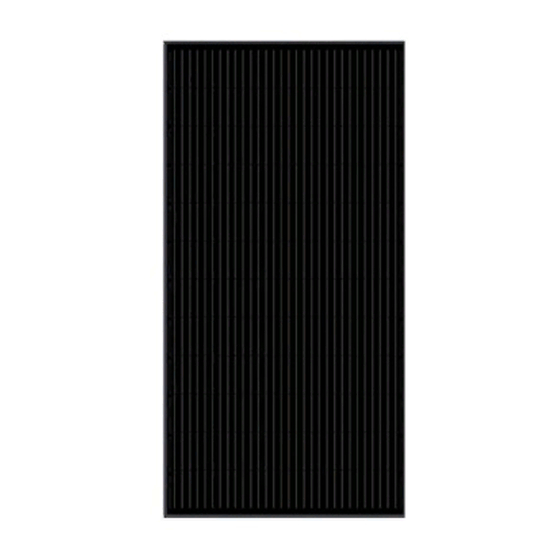

Summary of Contents for Sunergy SUN330-72M
- Page 1 SUNERGY USA WORKS LLC supply products to more than 60 countries and regions on five continents, such as Germany, Spain, Italy, America, Canada, Korea, Japan, and China and so on. Our solar panels are widely used in commercial, residential and industrial solar power system (on-grid&off-grid), PV power station and many other different regions.
-
Page 2: Climate Condition
1. APPLICATIONS SUNERGY Solar PV modules are a highly reliable, virtually maintenance-free direct current (DC) power source, designed to operate most efficiently in sunlight. SUNERGY series modules are ideal to power remote homes, recreational vehicles, water pumps, telecommunications systems and many other applications either with or without the use of storage batteries. -
Page 3: Required Information
SUNERGY USA WORKS LLC Installers must know the possible danger of death or serious bodily injury. Do not cut the connection wire under the loading. Do not modify solar panel, move any labels or other parts. Do not use chemicals on solar panel surfaces. - Page 4 The module frame must be attached to a supporting structure using M8 stainless steel hardware together with spring washers and flat washers in eight places symmetrical on the SUNERGY module. The applied torque is about 8 Newton-meters. The module can’t be installed using clamps.
-
Page 5: Installation Work
SUNERGY USA WORKS LLC conductor. The grounding conductor or strap may be copper, copper alloy, or other material acceptable for use as an electrical conductor per respective National Electrical Codes. The grounding conductor must then make a connection to earth using a suitable earth ground electrode. - Page 6 SUNERGY USA WORKS LLC 12.3 On the first solar panel, connect the positive home run cable to the positive array output cable, and connect the negative cable to the positive cable of the second solar panel. On the second solar panel, connect the negative cable to the positive cable of the third solar panel.
- Page 7 SUNERGY USA WORKS LLC Date sheet for all module types of the family Product Electrical Ratings: SUN330-72 SUN335-72 SUN340-72 SUN345-72 SUN350-72 SUN355-72 Module type Voc [V] /Tolerance 45.5±5% 45.90±5% 46.3±5% 46.9±5% 47.5±5% 47.7±5% 38.1 38.3 38.4 38.5 38.7 38.8 Vmp [V] Isc [Adc] /Tolerance 9.24±5%...
- Page 8 SUNERGY USA WORKS LLC SUN290-60 SUN295-60 SUN300-60 SUN305-60 SUN245-54 SUN250-54 Module type Voc [V] /Tolerance 39.2±5% 39.6±5% 39.8±5% 40.1±5% 34.9±5% 35.3±5% Vmp [V] 32.4 32.5 32.7 32.8 28.5 28.7 Isc [Adc] /Tolerance 9.58±5% 9.72±5% 9.78±5% 9.89±5% 9.14±5% 9.23±5% Imp [Adc] 8.95...
- Page 9 SUNERGY USA WORKS LLC Product Electrical Ratings: SUN315-72P Module type SUN330-72P SUN325-72P SUN320-72P SUN280-60P SUN275-60P Voc [V] /Tolerance 45.50±5% 44.90±5% 44.60±5% 44.30±5% 38.50±5% 38.00±5% 37.30 Vmp [V] 37.80 37.70 37.50 9.29 31.40 Isc [Adc] /Tolerance 9.22±5% 9.10±5% 9.03±5% 8.93±5% 31.60±5% 9.18±5%...
- Page 10 SUNERGY USA WORKS LLC Temperature cofefficient Temp. Cofe. Of Isc 0.048 % / °C Temp. Cofe. Of Voc -0.30 % / °C Temp. Cofe. Of Pmax -0.40 % / °C...
