Warnings
NOT FOR HOME USE OR 110V-220V APPLICATIONS
• ANY UNAUTHORIZED CHANGES OR MODIFICATIONS TO THIS EQUIPMENT MAY
VOID THE USER'S AUTHORITY TO OPERATE IT.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT INSTALL THE
UNIT IN A PLACE EXPOSED TO DIRECT SUNLIGHT OR EXCESSIVE HEAT OR
HUMIDITY. AVOID PLACES WITH TOO MUCH DUST OR THE POSSIBILITY OF
WATER SPLASHING OR GETTING WET.
• THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
• IN CERTAIN VEHICLES THE ADAPTER WILL DRAW POWER EVEN WHEN VEHICLE
IS TURNED OFF AND DEPENDING ON USAGE MAY DRAIN THE VEHICLE'S BATTERY.
Caution
• Use the proper power supply. This product is designed for operation with a neg-
ative grounded 12V DC battery system. If the product is used with the improper
system it may cause a fire or an accident.
• This product must be installed and used in accordance with this installation
instructions. Any alterations to this product that enables it to be used in any way
other than intended or designed could result in an accident causing injury or death.
Magnadyne Corporation disclaims any and all liability that may result from failure
to install and operate in any other manner in which this unit was intended.
• Do not disassemble, modify the unit or attempt to repair the product yourself. If
the product needs to be repaired, consult your dealer.
Installation
Faceplate
(Not Supplied)
Faceplate Screws
(Not Supplied)
© 2017 Copyright Magnadyne Corporation
Installation Instructions
Mounting Screws
(Not Supplied)
www.magnadyne.com
Models: WC-USB-B and WC-USB-W (Rev. B)
Template
2
/
3
4
Black Wire with Red Stripe
Connect to a 12V power source.

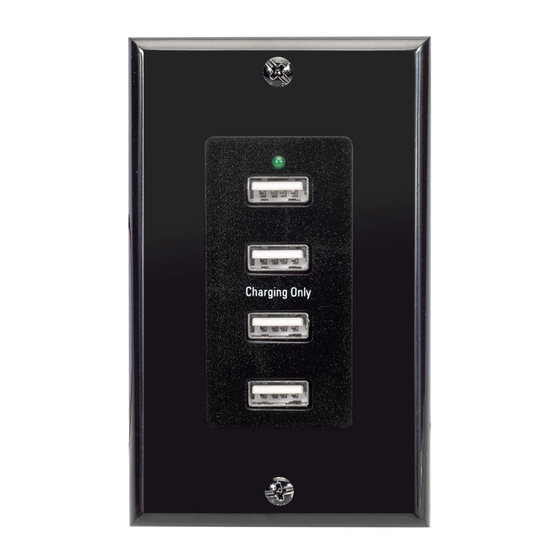

Wall Mount USB
1
/
"
1
4
"
Black Wire
Connect to chassis ground.
WC-USB-IMUM Rev. C 9-15-17
