Chamberlain COMMERCIAL PROTECTOR SYSTEM CPS-EI Manual

APPLICATION
This device is intended for use with LiftMaster Logic commercial
door operators and compatible 4-wire monitored sensing edges.
This is a stand-alone reversing system and is not intended to be
used in conjunction with any additional entrapment protection
devices. A junction box (not provided) is recommended to protect
exposed wiring.
INSTALL THE CPS-EI SYSTEM
IMPORTANT INFORMATION ABOUT THE ENTRAPMENT
PROTECTION DEVICES
Be sure power to the operator is disconnected.
When properly installed and connected, the system will detect an
obstacle in the path of the door sensing edge and reverse the
door if activated.
If an obstruction is detected while the door is closing, the door will
stop and reverse to the fully open position.
Install 4-Wire Sensing Edge as per manufacturer instructions.
Compatible Edges: 65-ME123 4, 65-ME113 4, 65-8203 2, 65-8204 4

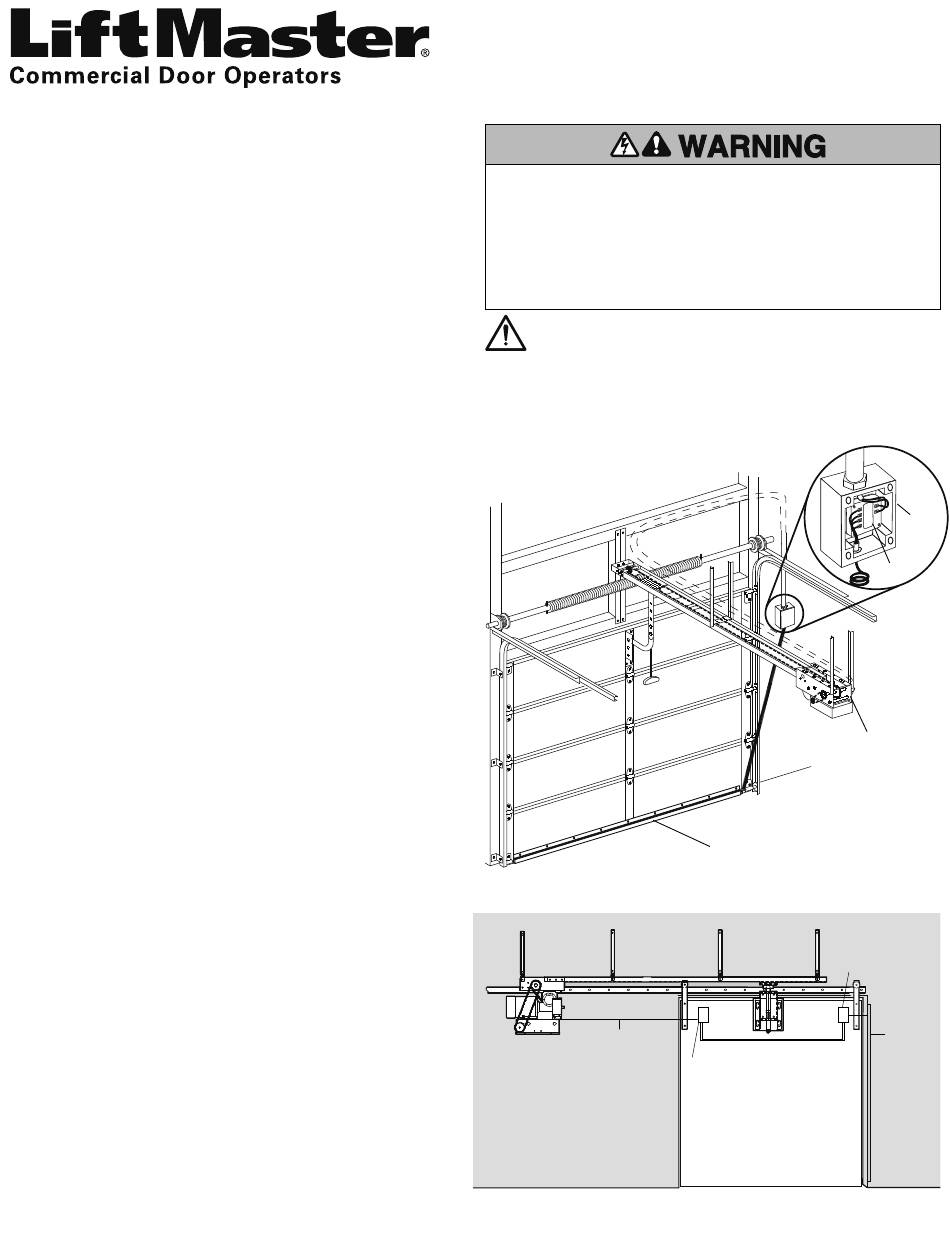

RECOMMENDED INSTALLATION
1. Disconnect power to the operator.
2. Mount junction box on the wall half way up the door opening.
3. Attach 4-wire coil cord from sensing edge to junction box and
secure in place with the strain relief provided. See wiring diagram
below for sensing edge connections.
4. Run 2 wires from the CPS-EI and connect to the operator as
shown in the wiring diagrams on the next page.
NOTE: Run all wires to the operator through conduit following all
local and National Electric Code. Do not run CPS-EI and power
wiring in the same conduit.
TEST SYSTEM
1. Reapply power to the operator. Green LED on CPS-EI should
light if properly attached and sensing edge is not activated.
2. Partially open door.
3. Activate sensing edge, green LED on CPS-EI should go out.
4. Close door. NOTE: Green LED will go out if sensing edge is
activated when door is fully closed.
5. Open door.
6. Begin closing. Activate sensing edge as door is closing.
Door should stop and reverse to the open position.
If any step fails, check connections.
COMMERCIAL PROTECTOR SYSTEM
To reduce the risk of SERIOUS INJURY or DEATH:
• This device is for use ONLY on LiftMaster
Operators.
• Disconnect power BEFORE installing the Commercial
Protector System
• Read and follow ALL instructions.
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
Coil Cord
1
EDGE INTERFACE
MODEL CPS-EI
Commercial Door
®
Edge Interface.
®
Sensing Edge
Electrical Junction Box
®
Junction
Box
CPS-EI
Connect wiring to
LMEP connections
on logic board.
CPS-EI
4-Wire
Sensing
Edge
