ASG PS-55AT User Manual

Note

• Please read this operation manual before using the power supply for correct and safe use
• The power supply shall be used with correct input of voltage
• The power supply shall be used in a place of good ventilation
• Please put the power supply in a clean and dry place, which is far away from oil, gas, noise and high voltage site
• Please make sure the power supply is grounded in use
• Please return to ASG for any repairs
• The power supply shall be put at a place where it is clearly seen, easy to move and convenient for maintenance

Product Specifications

ASG Number
Model Number
Size
Weight
Input Voltage
AC Plug Cord Length
Output Voltage

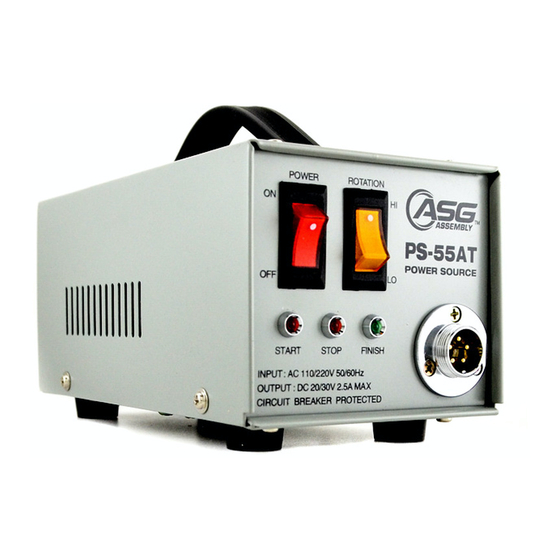

Front Panel

Power Switch
Signal State Indicator Light:
• Start light on while start
signal is applied
• Stop light on while stop
signal is applied
• Finish light on when
clutch has activated
ASG, Division of Jergens, Inc.
S. Waterloo Road | Cleveland, OH
15700
Phone: ( | Fax: (
888) 486-6163 216) 481-4519
Email: asginfo@asg-jergens.com | Web: www.asg-jergens.com
PS-55AT
User Manual
65707
PS-55AT
7 x 3.5 x 3.3 in. (180 x 90 x 85 mm)
6 lb. (2700 g)
AC 110V or 230V 50/60Hz
6 ft. (1.8 m)
DC 30/20V HI/LOW Max 2.5A
44110-3898
HI/LOW: rotary speed voltage
switch, may change output voltage
of the electric driver by 30V/20V
Electric Driver Power Cord Socket:
please use cord supplied with the
screwdriver
© 2017 Jergens, Inc. All Rights Reserved | Revision Date: 2/23/2017
Page 1 of 3
