Summary of Contents for iBox ILRHMF960

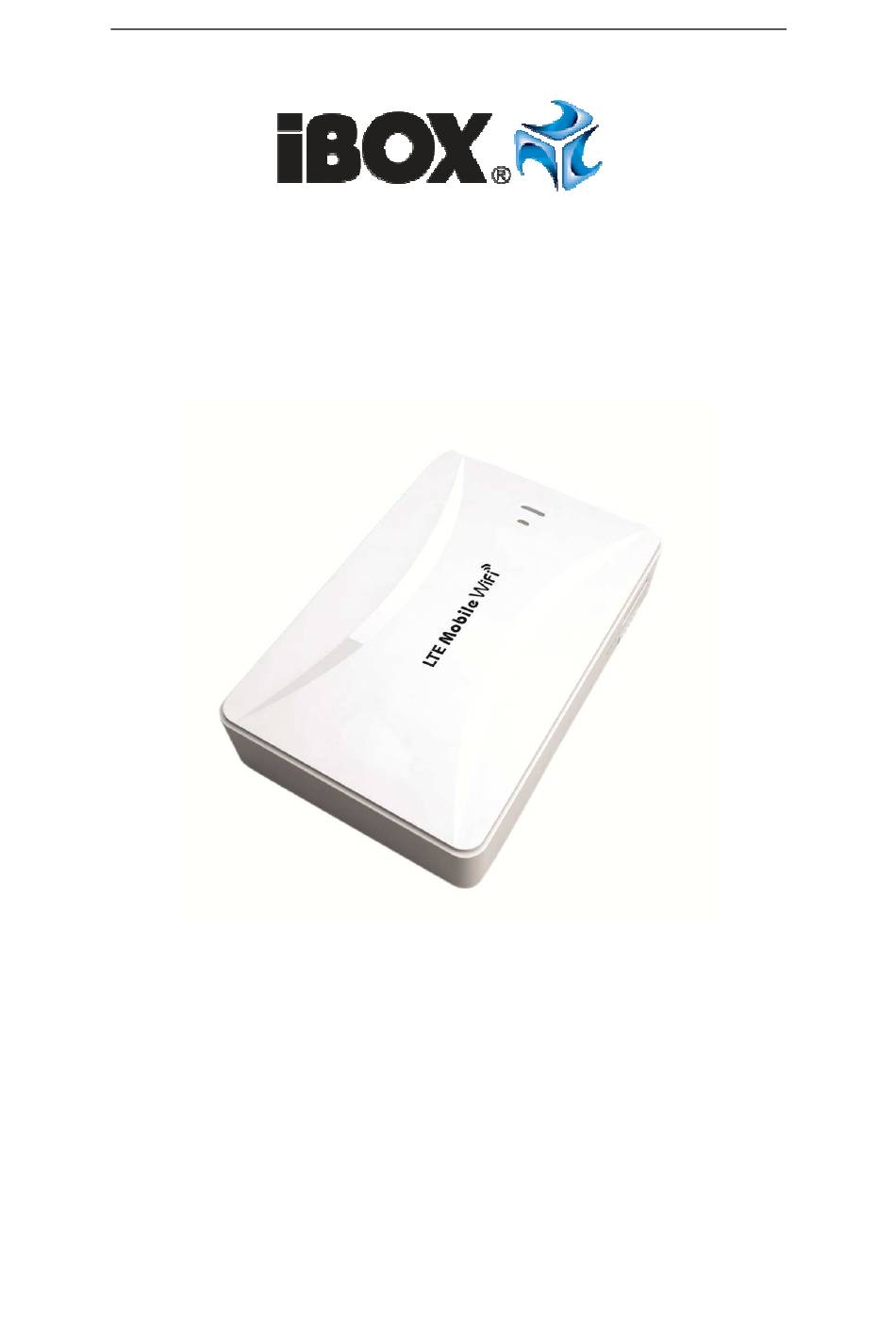

- Page 1 LTE Mobile Router User Guide LTE Mobile Router Installation Guide www.ibox.eu...
-
Page 2: Appearance Description
LTE Mobile Router User Guide Appearance Description 1.Power Switch ON-C-OFF 2. SIM Card Slot 3.WiFi Indicator 4. 3G/4G LTE Connection 5.External charging port 6. Reset hole 7. WAN/LAN 8.DC charging port 9.Charging indicator 10. Power indicator 11. Battery check button... - Page 3 LTE Mobile Router User Guide Description Name Status Function Description SIM Card For inserting SIM Card Slot start wireless router, switch to ON when access 3G, broadband wireless Power external charging mode. When charging the phone, it needs to...
-
Page 4: Led Status
LTE Mobile Router User Guide LED Status Item Name Status Description Function Introduction (1) the blue light is lit and the red is out, it means 3G or cable broadband has been connected to internet; One blue Router Working... - Page 5 LTE Mobile Router User Guide 2. Fixed broadband internet access Connect the router with ADSL modem, wired LAN or local area network or network cable to achieve broadband internet access. It will transfer broadband signal to WiFi signal. It is suitable for home and hotel broadband.
-
Page 6: Windows Setting
Router Connection by Wi-Fi Windows setting Click the icon at the lower right corner of desktop, connect to the iBOX hotspot, SSID: iBOX_XXXXXX The router has no encryption by default, double click it to connect. Users can modify password on web management page. -
Page 7: Android Setting
LTE Mobile Router User Guide Android setting Select “Settings”-> “WLAN”, switch on WLAN and connect to the router WIFI hotspot. SSID: iBOX_XXXXXX. Internet Setting 3G/4G internet access 1. Insert the SIM Card correctly 2. Turn on the router, it will connect 3G/4G automatically;... -
Page 8: Wireless Encryption
LTE Mobile Router User Guide 192.168.100.1 setting page, click “network>internet”, choose “ wired connection mode”, then choose “ PPPOE”, and enter the correct account and password. The router will restart. 4. Enter 192.168.100.1 again to check whether the broadband is connected successfully. - Page 9 Impet Computers Sp. z o.o. ul. Marywilska 34 03-228 Warszawa Hereby declare that the following product: iBOX Mobile router ILRHMF960 is compliant with the European Union Directive 2004/108/EC, 2006/95/EC and Electromagnetic Compatibility Directive (2004/109/EC). The following standards were applied: EN 301 489-1 V 2.2.1(2012-09) EN 301 489-17 V1.9.2(2011-09)
