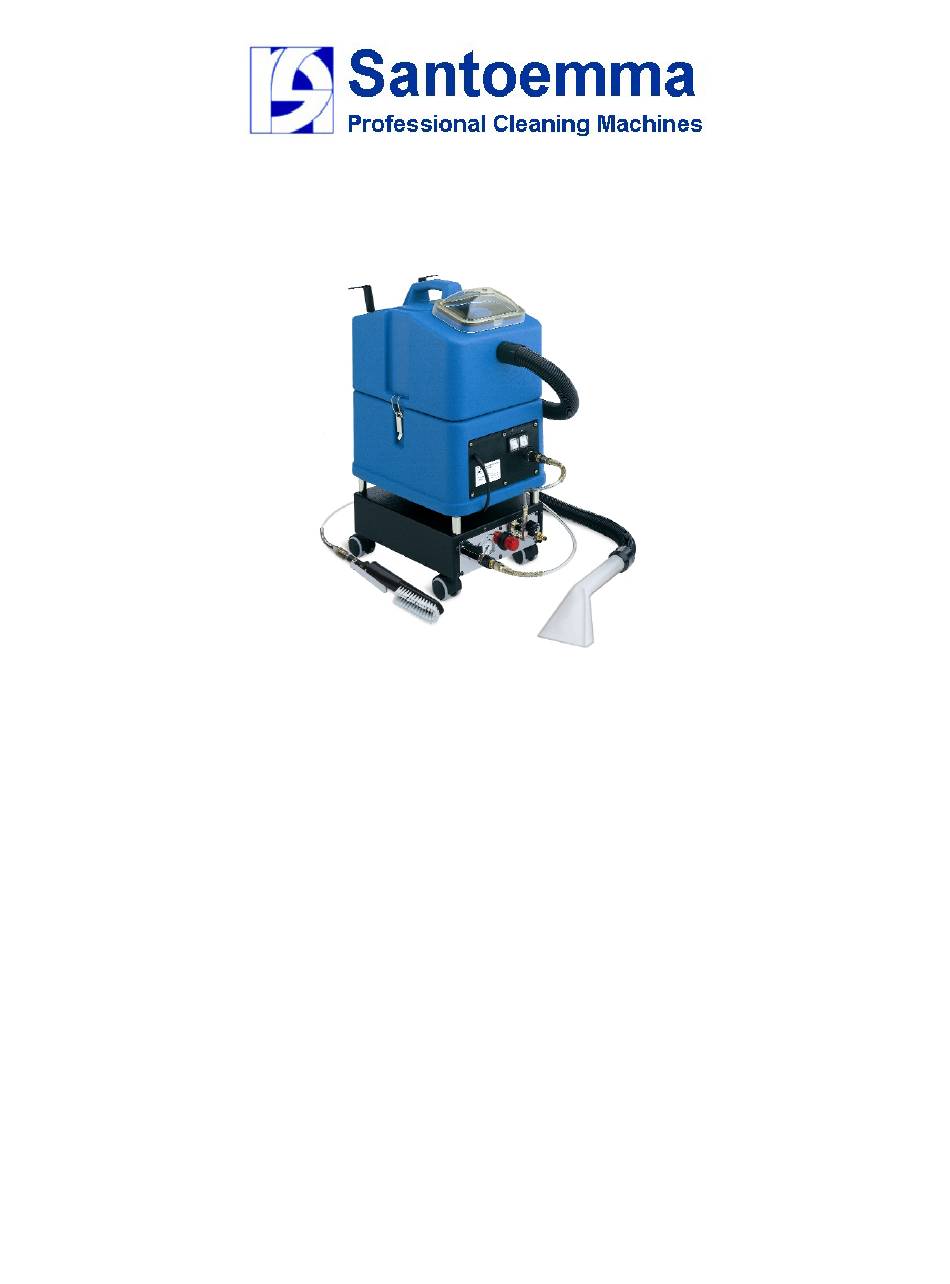

USING AND MAINTENANCE MANUAL FOR THE MACHINE

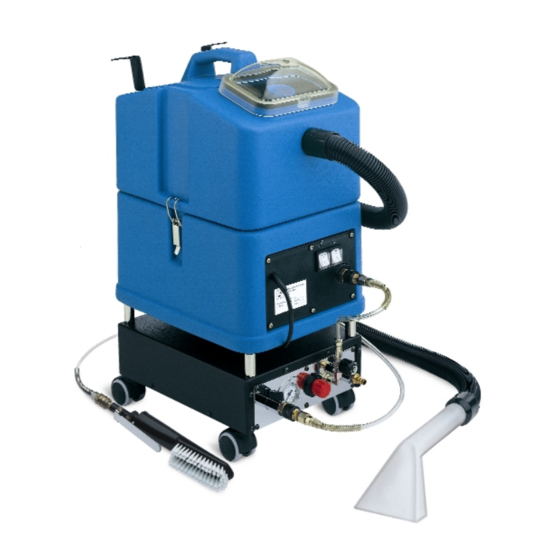

Sabrina-Foam-Light is a machine designed to clean upholstery, seats and other
padded textiles. This machine sprays a special foam on the surface to be
cleaned. This foam is obtained by mixing compressed air with a special
detergent, T-FOAM. Unlike a normal solution of water and detergent, this foam
does not penetrate in the depth of the textile, but acts only on the superficial
layer, just where the dirt is present. Therefore the result in terms of cleanliness
and of drying time is excellent. Compressed air must be supplied to the machine
from an external source. For this reason, it is necessary to have a compressor
which can be connected to the machine.
Advertisement
Table of Contents
Related Manuals for Santoemma Sabrina-Foam-Light
Summary of Contents for Santoemma Sabrina-Foam-Light
- Page 1 USING AND MAINTENANCE MANUAL FOR THE MACHINE Sabrina-Foam-Light is a machine designed to clean upholstery, seats and other padded textiles. This machine sprays a special foam on the surface to be cleaned. This foam is obtained by mixing compressed air with a special detergent, T-FOAM.
- Page 2 Structure of the machine Sabrina Foam Light is made by the following parts: • Machine body, • Accessory to spray foam, complete with its solution pipe for the connection to the machine body, • Vacuum plastic hand tool and vacuum hose for the connection to the machine body.
- Page 3 and then open the valve again. In this way, foam is allowed to be sprayed by the machine. 3. Connect the vacuum hose with the machine. 4. Connect the lance with the hose to spray foam and then the hand tool to the vacuum hose.
- Page 4 NOTE: The machine was studied to work correctly with the product T- FOAM. We cannot grant the correct working of the machine with different products. Therefore, we strictly recommend to use the product T-FOAM. 7. Re-connect the recovery tank to the solution tank, through the lateral hooks. 8.
- Page 5 Motor Pump Switch Interruttore Switch Pompa Pump outlet Control panel Air Input Regulation panel Foam Manometer Pressure outlet regulation...
- Page 6 Foam regulation control panel During the tests in Santoemma factory the machine is tuned in order to obtain a good quality of the generated foam. Nevertheless, by acting on the pressure of the air which mixes with the solution, it is possible to tune the machine in order to obtain a drier or wetter foam.
- Page 7 In order to obtain a drier foam, you must increase air pressure. On the contrary, in order to obtain a more humid foam you must reduce air pressure. Standard tuning of the air pressure The air pressure, which in the air tank is varying with the time, is regulated and kept at a steady value by a pressure regulator, which also allows to fix the value of the air pressure.
- Page 8 completely by letting the pump work and keeping the spray lever pressed. This operation is useful to clean the hydraulic circuit of the machine, including the pump, the couplings, the nozzle. 2. After each use, switch off the motor and the pump, then close the security valve of the air outlet.
