Your Guide to the Installation,
Care and maintenance of
PERFORMA
Electronic Self Closing
Fittings - Mains Powered
885-2 (343006)
887-2 (343012)
Electronic Eye (341105)
Pegler Limited, St Catherine's Avenue, Doncaster DN4 8DF
Telephone 01302 560560, Fax 01302 560109
Pegler Yorkshire Technical Office Tel 0870 1200285
Advertisement
Table of Contents
Summary of Contents for Pegler PERFORMA 885-2

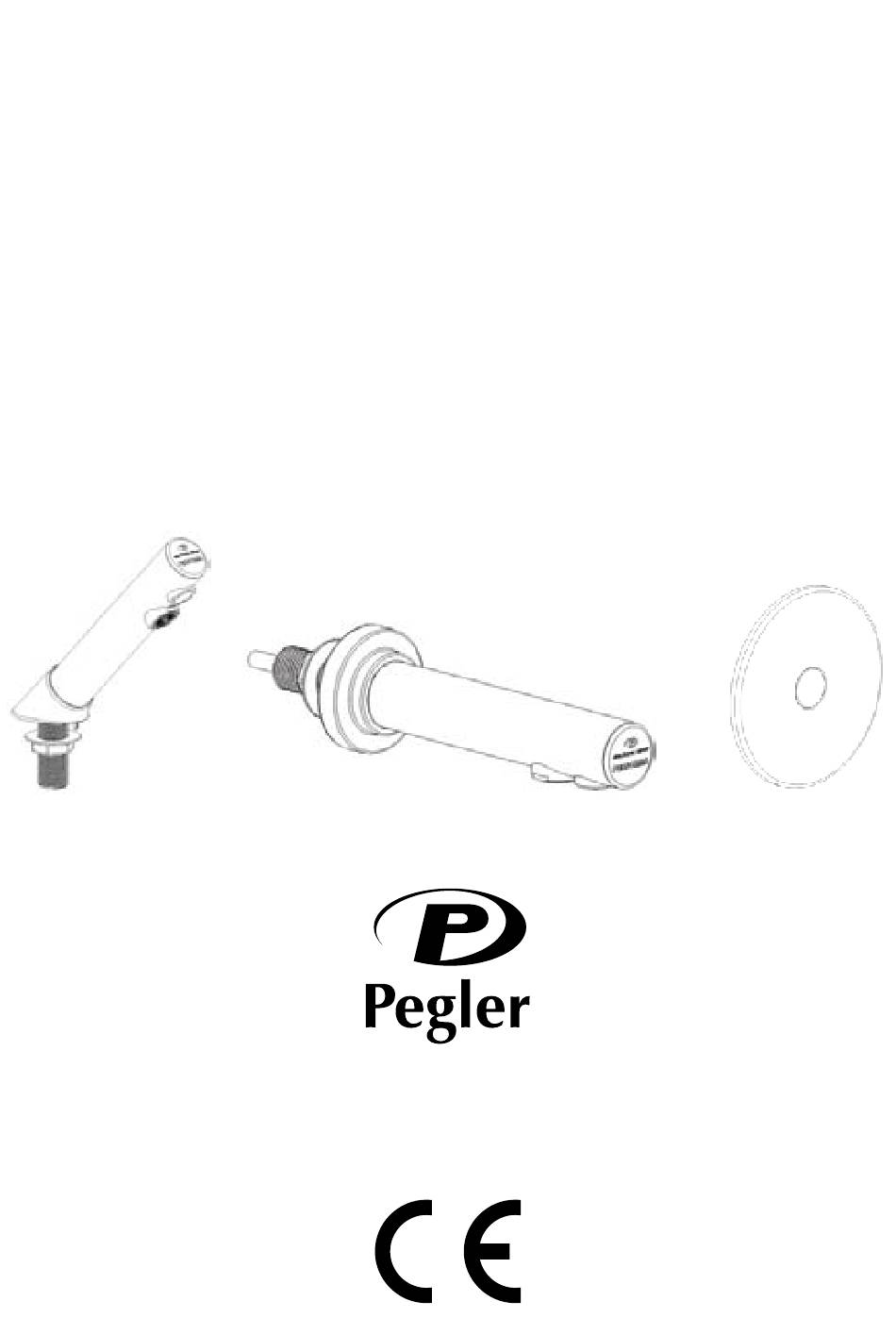

- Page 1 Care and maintenance of PERFORMA Electronic Self Closing Fittings - Mains Powered 885-2 (343006) 887-2 (343012) Electronic Eye (341105) Pegler Limited, St Catherine’s Avenue, Doncaster DN4 8DF Telephone 01302 560560, Fax 01302 560109 Pegler Yorkshire Technical Office Tel 0870 1200285...
- Page 2 When water usage is finished, move away and the flow of water will cease. Please Note: All Pegler Yorkshire electronic products are suitable for many types of applications but are also sensitive to high visibility jackets. Therefore areas where high visibility jackets are used can experience false high levels of sensor feedback.
-
Page 3: Electrical Specification
Water Regulations Requirements It is important to ensure that the water supplies to your PERFORMA self closing electronic products are connected in accordance with the water regulations (WRAS) requirements and good plumbing practice. These products have been designed to function on all types of water systems and from as little as 0.2 bar operation. -
Page 4: Pre-Installation Checks
Failure to do so will void warranty To reduce pressure to a more optimum level we also recommend the use of a Pegler Pressure Reducing Valve. For use on pressures between 1.1/2 bar to 5.1/2 bar - product code 5A2001 for ½”... -
Page 5: Installation
MUST be thoroughly flushed prior to installation. It is recommended that a service valve (Pegler 15mm 808 (523008)) is fitted in close proximity to the inlet of the solenoid valve to allow isolation of the water supply to the fitting should maintenance become necessary. - Page 6 It should be noted that surplus tube experienced depending on the solenoid / control module location, but Pegler Yorkshire advise that this tube has been cut to exacting requirements. And should therefore not be cut down / shortened due to the precise nature of the cut finish required.
- Page 7 The solenoid valve is marked with arrows, please ensure direction of flow is adhered to or valve will not operate. Screw inlet tube and connecting piece onto solenoid valve. Please Note: The inlet tube should not be bent sharply as this will cause it to kink and restrict water flow.
-
Page 8: Electrical Connection
Dip Switch #1 activates the ‘autoflush’ feature. By switching this on activates a countdown timer within the unit to flush every 8 hours. This feature ensures during long periods of the product not being used that the unit will switch itself on flushing through any stagnant water within the product out of the system. -
Page 9: Troubleshooting
Sensitivity To adjust the detection field, remove the control module box lid and adjust by turning the potentiometer with a small flat ended screwdriver. Turning clockwise will increase the distance, while anticlockwise will reduce. Shower sensitivity should be set to no greater than 300mm and tap application to approximately 100mm. - Page 10 63mA quick blow fuse and connecting cables. • CAUTION PLEASE ENSURE POWER SUPPLY IS SWITCHED OFF. Check cable continuity and is not damaged. • If non of the above solve the no flow problem please contact Pegler Yorkshire Technical Office on telephone 0870 1200285 Problem No Flow (Solenoid Test) Remedy • If above test is positive with glowing LED, next test solenoid using a...
- Page 11 Dry using soft cloth, never use abrasive cleaners or chemical household cleaners, avoid contact with concentrated bleach. Pegler products are manufactured to the highest standards and should require little or no maintenance. In the unlikely event of any spare part requirements, please visit our website: www.pegler.co.uk, contact you’re nearest stockist or the Pegler Yorkshire Technical Office...
- Page 12 This drawing is to scale and can be used as a template if necessary Pegler Limited, St Catherine’s Avenue, Doncaster DN4 8DF Telephone 01302 560560, Fax 01302 560109 Pegler Yorkshire Technical Office, Tel 0870 1200285...
