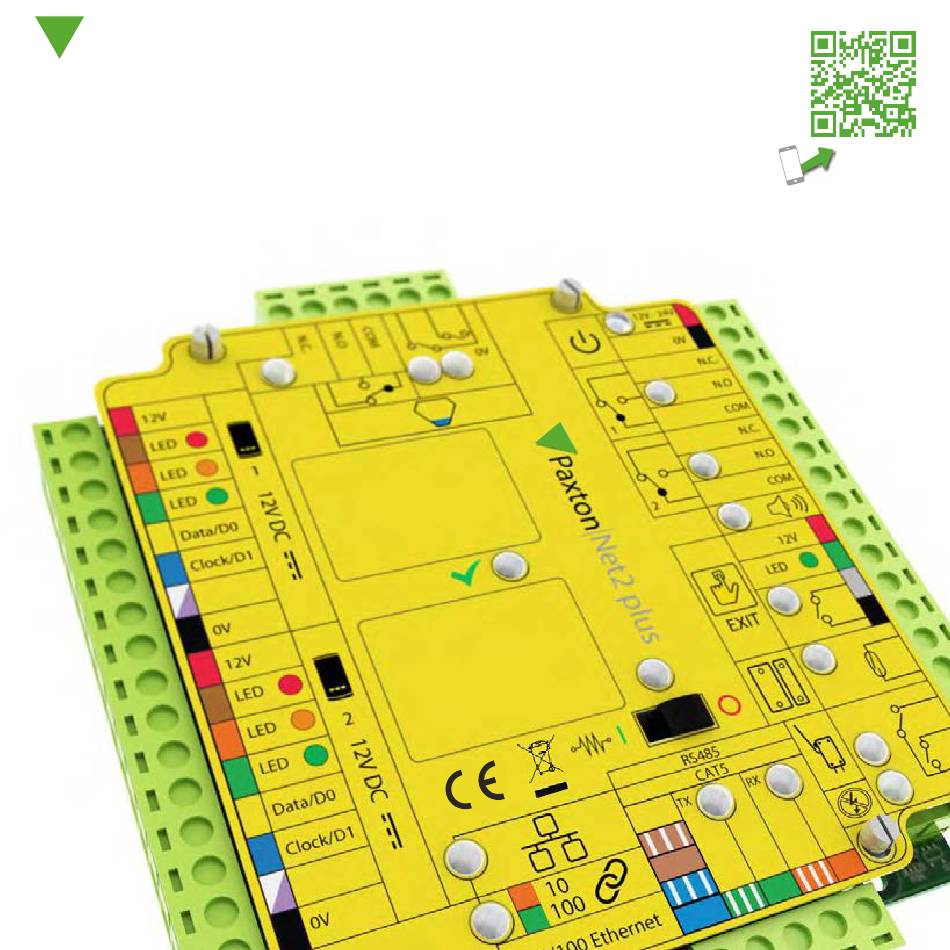

  • Page 1 Paxton ins-20606 Net2 Plus and Power supplies...
  • Page 2 Mounting...
  • Page 3 Note: This mounting process applies to all types of cabinet and housing regardless of size, material or power supply included. 1. Screws and wall plugs are provided in a parts kit. With reference to the diagram, mark up the hole positions as required and drill the holes suitable for No 8 wall plugs.
  • Page 4 Wiring Intruder alarm not evaluated by UL 12V - 24V 12V - 24V N.C. N.C. Data/D0 Clock/D1 12V - 24V N.C. EXIT EXIT N.C. Data/D0 Clock/D1 Data/D0 Media Detect Clock/D1 12V - 24V RS485 RS485 RS485 CAT5 CAT5 CAT5 N.C. EXIT EXIT 10/100 Ethernet...

  • Page 5: Led Indications

    The PC must be running for any ‘server based’ functions to operate. (Antipassback, Time and Attendance, etc) To see the installation options available and important information relating to the installation and con guration of the Net2 plus, please refer to the Application notes section on the website: paxton.info/1969...

  • Page 6: Door Contact

    Input/Output wiring Exit button When the Exit terminal is shorted to 0V, the Exit LED will illuminate and the ACU will operate Relay 1. The reader/exit button Green LED will ash during this period. More than one exit button can be wired in parallel. Relay 1 will remain transferred while the short to 0V remains. Door contact A NO switch may be tted so that it is held closed while the door is shut.
  • Page 7 A dedicated port for input and output signals is provided when integrating a Net2 plus ACU with an alarm system. Please see: AN1035 - Integrating Net2 with an intruder alarm system www.paxton.info/91 or call Technical Support for further information. Arm - Arm con rmation Push Button - Wire across 0V and Arm.

  • Page 8: Cable Type

    General Cable C0745A/ General Cable C0745A (24/18 AWG/10C/8C) An RS485 data line has a 1000 yds maximum. This distance can be increased with the use of Paxton high speed repeaters or by using shorter independent data lines using multiple LAN connections controlled from the same PC.

  • Page 9: Maintenance

    It is advisable to ensure that any third party backup power supplies or recovery procedures are checked regularly to ensure that the operation of the Paxton system is not compromised. 1 - Short circuiting, mutilation or incineration of the cells must be avoided to prevent one or more of the following occurrences; Release of toxic materials, release of hydrogen and/or oxygen gas, rise in surface temperature.
  • Page 10 12V DC PoE+ power supply in cabinet with Net2 plus +12V DC Outputs +12V DC This LED is on when the unit is operating in high 802.3at power mode Clock/D1 EXIT This LED is on when the input supply is healthy Combined data power from a PSE (Power...

  • Page 11: High Power Mode

    The PoE+ power supply can be used in the high power mode (see speci cation table) if the power source equipment can detect this request for additional power. This is achieved by the Paxton supply through a hardware indication (capacitance). It is not able to provide this con rmation through software (DLL classi cation).

  • Page 12: Installation

    Following the completed installation of this equipment, no further maintenance or testing is required. It is advisable to ensure that any third party backup power supplies or recovery procedures are checked regularly to ensure that the operation of the Paxton system is not compromised.
  • Page 13 24V AC/DC power supply with Net2 plus 13.8V DC Outputs 13.8V DC Data/D0 Clock/D1 +24V DC Outputs +24V DC Data/D0 Clock/D1 24V AC/DC 12V 7Ah Note: Must be powered by a UL 294 Listed, Power supply or UL 603 Listed, power limited, power supply capable of supplying 24VDC, 2.3 A.

  • Page 14: Input Connection

    Following the completed installation of this equipment, no further maintenance or testing is required. It is advisable to ensure that any third party backup power supplies or recovery procedures are checked regularly to ensure that the operation of the Paxton system is...

  • Page 15: Status Lights

    Status Lights 12V 7Ah 12V 7Ah Green This LED is on when the input supply is healthy. This LED is on when the input supply has failed - Power is being supplied by the battery.
  • Page 16 12V 7Ah SAFETY WARNING RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
  • Page 17 24V AC Power supply with trigger disconnect +12V DC +12V DC 12V - 24V 12V - 24V N.C. + 24V DC AUX+ N.C. Data/D0 Clock/D1 AUX- BAT- SW 1 Data/D0 Clock/D1 BAT+ 12V 7Ah 24 V DC 24V AC Note: Must be powered by a UL 294 Listed, Power limited, Power supply or UL 603 Listed, Power limited, Power supply capable of supplying 24V AC, 40 VA.
  • Page 18 Trigger Disconnect LOCK + 12V - 24V 12V - 24V N.C. COM - TRG1 Data/D0 N.C. AUX + TRG2 Clock/D1 AUX - BAT + Data/D0 Clock/D1 BAT - 12V 7Ah...
  • Page 19 Terminal Identi cation Terminal Legend Function/Description Low Voltage AC input TRG1 & TRG2 These input terminals are designed to connect to the normally closed outputs of an access control or fire alarm relay. These terminals control [LOCK+], and [STRIKE+], as well as AL177ULB output relay contacts [NC., NO.,C] LOCK+ This terminal provides DC output voltage when [TRG1] and [TRG2] are shorted together and are typically used to...
  • Page 20 Following the completed installation of this equipment, no further maintenance or testing is required. It is advisable to ensure that any third party backup power supplies or recovery procedures are checked regularly to ensure that the operation of the Paxton system is not compromised.

  • Page 21: Speci Cations

    Speci cations 802.3at Load output Load output Operating Moisture Input supply Carrier frequency current/power current/power Temperature* Resistance voltage (low power PoE+) (PoE+ High power) 857-600-US 32°F - +120°F 0°C - +49°C 32°F - +120°F 857-610-US 50/60Hz 24V AC/DC 0°C - +49°C 32°F - +120°F 857-630-US...
  • Page 22 UL 294 Performance Levels Line Security Model number Destructive attack Endurance Standby Power encryption 857-600-US 857-610-US 682-610-US 682-620-US 857-630-US 682-493-US 682-528-US 682-630-US Compatible UL listed Readers Model Number Description 345-220-US PROXIMITY P50 Mullion Reader 371-110-US TOUCHLOCK K75 Keypad 372-110-US TOUCHLOCK K75 Keypad, Stainless steel 375-110-US PROXIMITY KP75 Keypad 373-110-US...

  • Page 23: Technical Help

    Technical help 1 - RS485 Data line resistance check - ACU not responding or fails to be detected. First power down any data line converters and disconnect any ACU’s that do not have a ashing OK LED. Using a Multimeter, measure the resistance across the White/Green and Green pair at one end of the network.
  • Page 24 - If the OK LED is ashing steadily, there should be no reason to reset the unit - If the OK LED is not ashing, you need to clear the unit so that it can receive a rmware download from the PC - Any other ACU’s without OK LEDs must be taken o the line or powered down •...
  • Page 25 +31 (0)76 3333 999 +44 (0)1273 811011 877.438.7298 support@paxton.co.uk supportUS@paxton-access.com support@paxton-benelux.com paxton.support usapaxton.support paxton.benelux.support +32 (0) 78485147 +49 (0) 251 2080 6900 +33 (0)1 57 32 93 56 verkauf@paxton-gmbh.de support@paxtonaccess.fr support@paxton-benelux.com paxton.benelux.support paxton.gmbh.support paxton.support +27 (0) 21 4276691 +52 55 5351 3667 8000 3570 3783 support@paxtonaccess.co.za...
  • Page 26 North America:- Product Compliance and limitations To comply as a UL listed installation, the following conditions must apply:- Software features and functions have not been evaluated by UL. Server based functions (Antipassback, Time and Attendance, etc) have not been evaluated by UL and cannot be used for UL 294 installations. The use of Wiegand readers and the con guration software has not been evaluated by 'UL' Wiring: - Where an equivalent cable / wire is used it must be ' UL Listed ' All interconnecting devices must be UL Listed.
  • Page 27 Conformité et limitations du produit Pour que l'installation répond aux normes UL, les conditions suivantes sont applicables. Le pouvoir doit être fourni par une alimentation DC séparée. Un contrôle d’accès UL (ou alarme) classe 2, puissance limitée, source d’énergie capable de 4 heures en veille doit être utilisé. Ceci est branché sur les bornes 0V et 12/24V et le câble xé...
  • Page 28 Assembled in America. Comprised of US and UK manufactured components © Paxton Ltd 1.0.7 26/03/2020...
