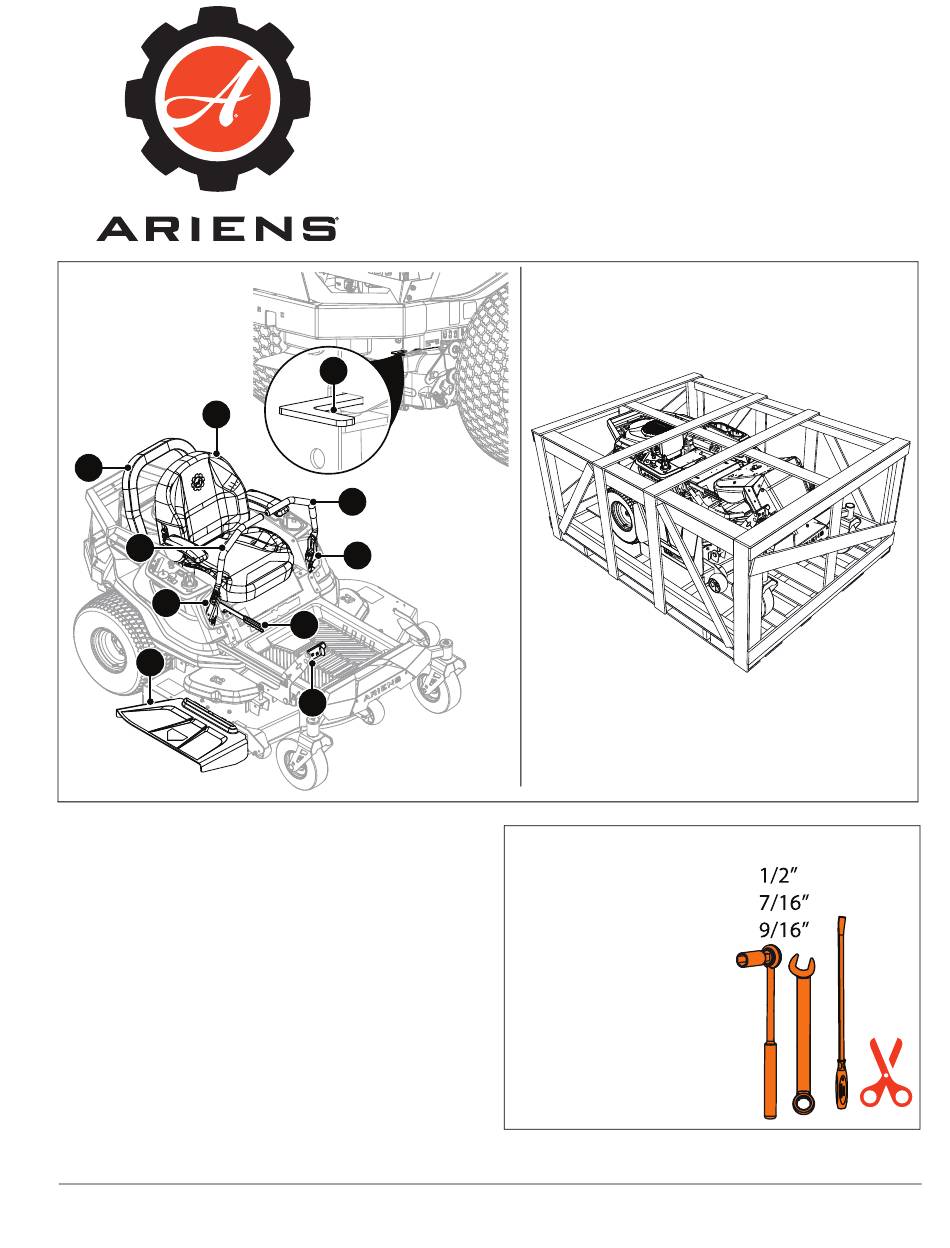

Assembled
1
10
3
5
7
IDENTIFICATION
1. Seat
2. Left Steering Control Lever
3. Right Steering Control Lever
4. Left Control Arm
5. Right Control Arm
6. Parking Brake
7. Discharge Chute
8. Transaxle Bypass Levers
9. Deck Lift Pedal
10. Engine Guard
© 2019 • AriensCo • Brillion, WI 54110
Lowe's Items 1461303, 1461304, 1461314,
1461315, 1475143, 1475144, 1475145
8
2
4
6
9
Ariens IKON-XD
Setup Instructions
As Shipped
Tools for Assembly:
• Pry Bar
• Cutting Tool
• 7/16" Wrench
• 9/16" Wrench
• 1/2" Wrench
• Socket Wrench
• 1/2" Socket
• 7/16" Socket
• 9/16" Socket
05278827 • Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ariens Ikon XD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lowe Ariens Ikon XD Series

  • Page 1 Ariens IKON-XD Lowe’s Items 1461303, 1461304, 1461314, 1461315, 1475143, 1475144, 1475145 Setup Instructions As Shipped Assembled IDENTIFICATION Tools for Assembly: 1. Seat 2. Left Steering Control Lever • Pry Bar 3. Right Steering Control Lever • Cutting Tool 4. Left Control Arm •...
  • Page 2 WARNING: AVOID INJURY. Read and understand the Safety section in the Operator’s Manual before proceeding. a. Pull transaxle bypass levers (item 8) out to DO NOT start engine until assembly is bypass transaxles. complete. IMPORTANT: Be sure to pull bypass levers on left and right side of unit.
  • Page 3 Slowly push unit off crate pallet. a. Push transaxle bypass levers in to engage transaxles. Discard pallet. IMPORTANT: Be sure to push bypass levers in on each side of unit. Engage parking brake. a. Cut cable ties from around discharge chute (item 7), height-of-cut link and seat (item 1) and discard.
  • Page 4 Cut cable tie from around left side of seat, deck a. Move seat forward until seat holes align with lift and through literature pack and discard. lower slots in seat plate. Remove hardware from front holes in seat plate. a. Reinstall hardware removed in step 9 through DO NOT discard hardware.
  • Page 5 Remove and retain tapping screws from left and a. Secure engine guard to rear fender plates using right rear fender plates. tapping screws removed in step 12. IMPORTANT: Be sure to only remove one tapping screw b. Tighten engine guard hardware. from each side of unit.
  • Page 6 Secure one seat tether end to seat plate with a. Route seat tether end toward battery tray. hardware removed in previous step. a. Secure open seat tether end to battery tray with Remove loose hardware from battery tray. DO hardware removed in step 17. NOT discard hardware.
  • Page 7 Clip wire harness to hole in battery tray. a. Secure negative battery cable to negative (open) battery terminal with hardware removed in previous step. Negative Battery Operator Presence Terminal Switch Wire Harness Remove hardware from negative (black) battery cable. a. Remove upper hardware from right control arm (item 5) and loosen lower hardware.
  • Page 8 Rotate right steering control lever (item 3) into a. Rotate left steering control lever (item 2) into the the operating position and reinstall hardware operating position and reinstall hardware removed in the previous step, but DO NOT fully removed in the previous step, but DO NOT fully tighten hardware.
  • Page 9 Rotate seat into the operating position. a. Tighten right steering control lever hardware. Return steering control levers to operating position and align left and right sides. a. Tighten left steering control lever hardware. Page 9 of 10...
  • Page 10 WARNING: AVOID INJURY. DO NOT proceed until operation and safety rules Remove hardware from deck lift pedal. DO NOT are fully understood. discard hardware. Read and understand Operator’s Manual before proceeding. Rotate deck lift pedal 180 degrees and secure to opposite side of deck lift arm using hardware removed in previous step.
