SureShot ATOMIZER Instructions Manual

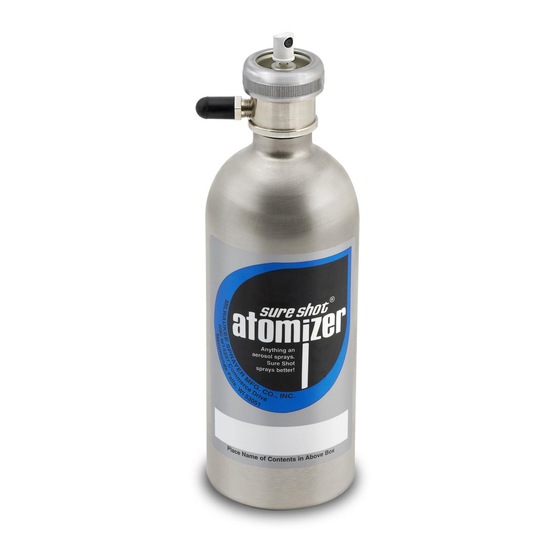

SURE SHOT ATOMIZER SPRAYERS
DIRECTIONS FOR OPERATING MODEL "B" SPRAYERS
1) ALWAYS DEPRESSURIZE SPRAYER BEFORE
REMOVING ANY PARTS. The pressure may be let
out of the sprayer one of the two following ways:
a) Tip the sprayer upside down and depress nozzle
until no pressure is left. If some liquid is left in
the sprayer when attempting this procedure
make sure you aim the nozzle at a place where
a little bit of liquid can be expelled.
b) Remove B13 black cap from filler assembly and
use small probe to depress the valve core until
all the pressure escapes. NOTE: Make sure the
sprayer is upright and the filler assembly is
pointed away from you when depressing the
valve core.
2) Remove the complete top assembly from the
canister once all the air has been let out of the
sprayer. Do this by grasping the body in one hand
and the canister in the other and unscrewing
counterclockwise completely.
3) Fill canister 2/3 full ( 7,8 or 16 ounce maximum
capacity) with light, clean liquid. Make sure the liquid
you are putting into the sprayer is CLEAN and FREE
OF FOREIGN PARTICLES. See ACCESSORIES on
page 3 for the liquid filling/measuring device.
4) Place complete top assembly on the canister and
firmly hand tighten.
SPRAYER NOT RECOMMENDED FOR USE WITH PAINTS
DO NOT PRESSURIZE SPRAYER WITHOUT B25
VALVE HEAD IN PLACE AND FIRMLY HAND TIGHTENED
INSTRUCTIONS
Refillable, Reusable. Extra Versatile.
Pressurized by Free Air.
MODEL B
16 oz.
8 oz.
7 oz.
5) Choose the nozzle you wish to use from the poly
bag in the carton. Once you have chosen the nozzle,
assemble it to the stem of the B15/B16 valve on top
of your sprayer. NOTE: Nozzle must be firmly
pushed into place.
6) Pressurize sprayer with compressed air by holding a
standard air chuck onto the filler assembly stem and
depress the valve core. Hold the air chuck in place
until you hear the line pressure equalize with the
pressure in the sprayer. Hold the sprayer upright
while pressurizing. Working pressure is 80 - 145 psi.
At least 80 psi is necessary to spray the full 7, 8 or
16 ounces without repressurizing. THE MAXIMUM
PRESSURE SHOULD NOT EXCEED 200 PSI.
7) The Model "B" sprayer is now ready to use.
8) For best results, the liquid to be sprayed should be
lighter then a No. 10 motor oil. (If liquid is too
heavy a pin stream will result). Dilute with a
suitable diluent until desired spray is obtained.
CAUTION: Never point the nozzle of sprayer towards
yourself or any other person. Always point the nozzle of
the sprayer away from yourself and toward the intended
target before depressing the nozzle.
NOTE: ALWAYS CHECK WITH THE CHEMICAL
SUPPLIER FOR CHEMICAL COMPATIBILITY WITH
O'RINGS, VALVES AND CANISTERS.
