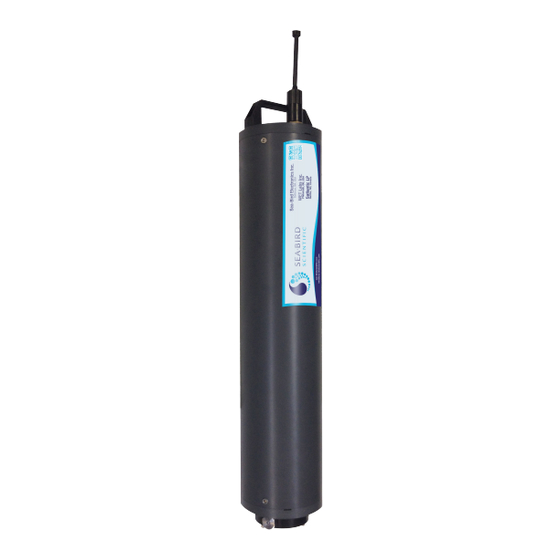

Sea-Bird Scientific SeaFET V2 User Manual

Ph and optional ctd and do sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SeaFET
Document No.
SeaFETV2SeapHOxV2
Release Date:
2020-10-05
Version:
A
Software:
UCI 2.03
™
V2 and SeapHOx
pH and optional CTD and DO sensor
425-643-9866
seabird.com
User manual
™
V2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SeaFET V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sea-Bird Scientific SeaFET V2

Summary of Contents for Sea-Bird Scientific SeaFET V2

  • Page 1 User manual ™ ™ SeaFET V2 and SeapHOx pH and optional CTD and DO sensor Document No. SeaFETV2SeapHOxV2 Release Date: 2020-10-05 Version: Software: UCI 2.03 425-643-9866 seabird.com...

  • Page 3: Table Of Contents

    Table of Contents Section 1 SeaFET V2 and SeapHOx V2 quick start guide ............3 Section 2 Specifications ........................5 2.1 Mechanical........................... 5 2.1.1 SeapHOx V2........................5 2.1.2 Bulkhead connectors......................5 2.1.2.1 SBE-37-SMP-ODO connector..................5 2.1.2.2 SeaFET V2 connector....................5 2.1.3 Illustrations..........................
  • Page 4 Table of Contents 7.9.1 CTD storage........................38 7.9.2 pH sensor storage......................38 7.10 Calibration..........................38 7.10.1 Manufacturer pH calibration.................... 38 7.10.2 Verify calibration......................39 Section 8 Reference ..........................41 8.1 Terminal program setup and use....................41 8.2 Terminal commands........................41 8.3 Polled data collection......................... 43 Section 9 Software reference ......................

  • Page 5: Section 1 Seafet V2 And Seaphox V2 Quick Start Guide

    The two sensors are integrated by the manufacturer. The SeaFET V2 acts as a controller for the SBE-37, which sends the data it collects to the SeaFET V2. Because the SBE-37 pump operates before each burst of data collection, the manufacturer recommends that the shortest data collection interval is every two minutes for the SeapHOx.
  • Page 6 Configure sensor with deployment wizard on page 20 for details.) 9. Verify that the boss seal on the SeaFET V2 is screwed in all the way. The sensor will flood if the plug is not screwed in all the way.

  • Page 7: Section 2 Specifications

    — 2.1.2 Bulkhead connectors 2.1.2.1 SBE-37-SMP-ODO connector Contact Function MCBH-4-MP Ground RS232 RX RS232 TX Voltage in 2.1.2.2 SeaFET V2 connector Contact Function MCBH-8-MP Voltage in Ground No connect CTD/pump V out (12 V, 650 mA, optional) TXD/D+ RXD/D- CTD TXD...

  • Page 8: Illustrations

    Specifications 2.1.3 Illustrations Figure 1 SeaFET V2 dimensions...
  • Page 9 Specifications Figure 2 "Y" cable for SeapHOx V2 Figure 3 Data I/O cable...

  • Page 10: Electrical

    Specifications Figure 4 SBE-37-SMP-ODO-only test cable 2.2 Electrical 2.2.1 SeaFET V2 Input 6–18 VDC Internal batteries 12 D-cell 1.5 V alkaline Main battery pack 12 V, 13420 mA-hours Isolated battery Real-time clock drift 2 ppm (0–40 °C) Communication interface RS232: 9600–115200 baud; Default: 19200 baud...

  • Page 11: Sbe-37-Smp-Odo

    12 AA-cell 3.6 or 3.9 V lithium Current draw, operation 0.29 watts Current draw, low power 30 µA Current draw, communication 4.3 mA 2.3 Analytical 2.3.1 SeaFET V2 Measurement range 6.5–9.0 pH Salinity range 20–40 psu Accuracy ±0.05 pH Precision 0.004 pH...
  • Page 12 Specifications...

  • Page 13: Section 3 Product Overview

    Section 3 Product overview N O T I C E When sensor is not in use, make sure that the wet cap is in place and is filled with clean seawater. Do not put the sensing elements in fresh water: it may cause data to be unstable and damage to the sensor.

  • Page 14: Ion-Sensitive Field Effect Transistor (Isfet)

    Product overview 3.1 Ion-sensitive field effect transistor (ISFET) ™ The primary sensor element of the SeaFET is the ISFET, a solid-state sensor that senses pH in marine environments. The ISFET has two reference electrodes: an internal reference and an external reference, that give separate reference potentials to the ISFET and show separate pH values (pH Internal and pH External).
  • Page 15 The main battery pack supplies power to the sensor and the isolated battery pack supplies power to the sensing element when the sensor is in a low power "standby" mode. SeapHOx: SBE-37-SMP-ODO integrated with SeaFET V2 SBE-37-SMP-ODO batteries The SBE-37-SMP-ODO attached to the SeaFET uses lithium batteries that ship separately and must be installed before use if the SeaFET is not set up to supply power to the SBE-37-SMP-ODO.
  • Page 16 Product overview...

  • Page 17: Section 4 Set Up Sensor And Verify Function

    Section 4 Set up sensor and verify function N O T I C E Make sure that the SeapHOx is submerged in water before operation to prevent damage to the pump. The pump always operates when the SeapHOx takes a measurement. Before a deployment, set the start time to occur after the sensor is submerged.

  • Page 18: Batteries

    Set up sensor and verify function • To move the data in any direction, push the "Ctrl" key on the PC keyboard and the left button of the mouse pointer at the same time. • To select a specific part of the data to zoom in on, pull the mouse pointer diagonally.
  • Page 19 Set up sensor and verify function 7. Use a 7/64" hex key to loosen the captured screw in the battery cover plate. 8. Remove the battery pack from the pressure housing. 9. Turn the yellow cover plate counterclockwise to remove it from the battery pack body. 10.
  • Page 20 Set up sensor and verify function 20. Examine the O-rings on the end flange. They must be pristine, with no lint or scratches or chips. ® • Apply a small quantity of Parker Super O Lube to any new O-rings. 21.

  • Page 21: Section 5 Deployment And Recovery

    1. The pump operates on command 2. The sensor makes one measurement 3. The pump stops 4. The sensor sends the data to the controller 5. The sensor goes into a low power mode until the next command to operate. SeaFET V2...

  • Page 22: Deployment Orientation

    Deployment and recovery The standalone SeaFET operates continuously user-selected intervals from 6 to 21600 seconds. Data is transmitted in engineering units. 5.1 Deployment orientation When deployed as a stand-alone sensor, the orientation of the SeaFET should be based on the deployment site conditions. Light exposure to the ISFET could cause errors in the data, so in high-sun areas, it is best to deploy the sensor with the wet cap pointed down.

  • Page 23: Remove Wet Cap

    Deployment and recovery 5.3 Remove wet cap Just before deployment, remove the wet cap and install the anti-fouling guard or the wet cap and flow cells. 1. If necessary, unplug the cable from the sensor. 2. Remove the two plastic plugs from the wet cap. Keep them for future use. 3.

  • Page 24: Save Real-Time Data

    Deployment and recovery 1. The Real Time display is continuously updated to show the most recent data collected by the sensor. 2. Look at the data in the Time Series graph. The user can look at data in real-time for each sensor that has power supplied, is connected and is in communication with the software.

  • Page 25: Recover Sensor From Deployment

    Deployment and recovery 5.5 Recover sensor from deployment N O T I C E Do not let the sensing elements get dry. If the sensor will not be deployed immediately, put the wet cap in place and fill with clean seawater. N O T I C E Do not leave the sensor in direct sun.
  • Page 26 Deployment and recovery...

  • Page 27: Section 6 Transmit And Process Data

    The default is a check in the boxes for "Display Data when Conversion Completed" and "Close this Dialog when Conversion Completed." 6.1 SeaFET V2 output formats Default output format OutputFormat=1 is data in decimal format, converted to engineering units. Order in which...

  • Page 28: Seaphox V2 Output Formats

    Transmit and process data Output format used by manufacturer OutputFormat=0 is raw data in decimal format. Order in which the parameters show in the output: FrameSync,timestamp, data error flag, temperature, Vrs_ext, Vrs_int, pH temperature, Vk, Ib, Ik, internal relative humidity Example output: SEAFET02001, 2020-08-12T10:37:34, 0000, 5508600, 5368310, 1934305, 5846369, 8380847, 8385742, 21600, 2784...

  • Page 29: Export Data To .Csv Or Ms Excel Format

    Transmit and process data 2. In the "SeaFET Binary Logged Data File" area, select a data file that was transmitted to the PC. It has a .sbsdat file type. 3. Select "Specify Temperature Salinity Data" to see the options for temperature and salinity.

  • Page 30: Show Data From The Sensor

    Transmit and process data 6. Push Next. Select the options for the file to export: a. Select either "Excel Workbook" or "Comma Separated Values" in Export File Format. b. Select the filters to apply to the data in Export Samples QAQC Filter (ECO V2 only.) c.

  • Page 31: Section 7 Maintenance

    Section 7 Maintenance N O T I C E When sensor is not in use, make sure that the wet cap is in place and is filled with clean seawater. Do not put the sensing elements in fresh water: it may cause data to be unstable and damage to the sensor.

  • Page 32: Clean Electrode Surfaces

    Maintenance 7.2 Clean electrode surfaces Clean the electrode surfaces after a deployment and before the sensor is put in storage. Clean both the external and internal reference electrodes. 1. Remove the wet cap or anti-fouling guard that is attached to the sensor. 2.

  • Page 33: Remove Or Attach Mounting Hardware

    Maintenance • 500 ml bottle of DI water • container for waste water • container for sensor. ® • De-ionized or distilled water. If unavailable, use fresh tap water, used with Triton X-100 or bleach. Do not use shipboard fresh water because it can have traces of oil in it.

  • Page 34: Remove And Replace Alkaline Batteries

    Maintenance 3. Use a 5/32" hex key to remove the three screws that secure the flow cells. 4. Remove the flow cells. 5. Carefully move the SeaFET out of the brackets. Make sure not to scratch the housing. 6. If it is necessary to move the bracket on the SBE-37-SMP-ODO to clean the conductivity cell, use a 3/16"...
  • Page 35 Maintenance 6. Press the locking tab on the white end flange connector to disconnect and gently pull it out. 7. Remove the desiccant packs and put them in a sealed bag. 8. Remove the two ¼" nuts that hold the battery plate: •...
  • Page 36 Maintenance • Change all of the batteries. Do not mix used and new cells. • Do not mix battery chemistries. The manufacturer recommends industrial 1.5V alkaline D-cells. 11. Examine, clean, and if necessary, lubricate the O-rings on the end flange. 12.

  • Page 37: Remove Or Replace Anti-Fouling Devices

    Maintenance 19. Connect the sensor to the software and turn on the internal batteries. The voltages in the sensor Dashboard for new batteries are 12V for the Main Battery Voltage and 6V for the Isolated Circuit Voltage. If they are not, open the sensor and correct the problem.

  • Page 38: Examine O-Rings

    Maintenance 3. Use a toothpick to lift each of the anti-fouling devices out of their cups. If necessary, use needle-nose pliers to carefully break up the device. 4. To prepare for deployment: a. Insert a new anti-fouling device into each cup. b.

  • Page 39: Clean Bulkhead Connectors

    Maintenance 7.8 Clean bulkhead connectors N O T I C E ® Do not use WD-40 or petroleum-based lubricants on bulkhead connectors. It will cause damage to the rubber. Damaged connectors can cause a loss of data and additional costs for service. Damaged connectors can cause damage to the sensor and make it unserviceable.

  • Page 40: Prepare Sensor For Storage

    Maintenance Use a finger to put a small quantity (approximately 1 cm in diameter) of silicone grease on the socket end of the connector and push as much of the lubricant as possible into each socket. 7. Connect the connectors. 8.

  • Page 41: Verify Calibration

    Maintenance Calibration coefficients are stored in the sensor and are used with an on-board temperature measurement and the user-selectable salinity constant to calculate pH from the cell voltage potentials. The calculated pH value shows in each data frame sent from the sensor.
  • Page 42 Maintenance...

  • Page 43: Section 8 Reference

    Section 8 Reference 8.1 Terminal program setup and use If necessary, use a terminal program to set up and operate the sensor. 1. Use the test cable to connect the sensor to the PC and a 12V power supply. ® 2.
  • Page 44 Reference TxRealTime=x x=Y: send real-time data during autonomous operation or in serial line sync mode. x=N: do not send puts sensor in low power ("quiescent") state. Sensor continues to take measurements and store data. OutputFormat=x x=0: send raw decimal data. x=1: send converted decimal data. Initlogging resets the memory pointer to sample number 0.

  • Page 45: Polled Data Collection

    Reference phcaldate= sensor sends command to DO sensor and gets response set K0 coefficient set K2 coefficient ReferenceSalinity= set the salinity value to be used in calculations tdfcaldate= DuraFET temperature calibration date, dd-mm-yy tdfa0= set DuraFET thermistor temperature coefficient, A0 tdfa1= set DuraFET thermistor temperature coefficient, A1 tdfa2=...
  • Page 46 Reference...

  • Page 47: Section 9 Software Reference

    Section 9 Software reference 9.1 Sensor dashboards The Dashboard is the main area from which to control and communicate with the sensor. Information about the status of the sensor is contained in the upper part of the window and is updated each time the sensor is connected to the software. Common settings •...

  • Page 48: Display Tab

    Software reference • "Default Data Directory" lets the user enter the location on the PC in which to save data from the sensor. If there is a check in the "Prompt at startup" box, the user can change the directory in which the data is stored every time the software starts. 9.2.2 Display tab Note: The software operates faster if the user selects less data and only one or two graphs.

  • Page 49: Message Tab

    Software reference 9.2.3 Message tab The software automatically saves files that have information about sensor use, data collection, and software operation over time. This information helps the user and Customer Support find problems and do troubleshooting. When the "Display Dialog for Error Level Messages" box has a check in it, the software saves one of five levels of error messages.
  • Page 50 Software reference...

  • Page 51: Section 10 General Information

    Section 10 General information Revised editions of this user manual are on the manufacturer's website. 10.1 Warranty Refer to the manufacturer's website for warranty information (seabird.com/warranty). 10.2 AF24173 anti-foulant device AF24173 Anti-Foulant Devices supplied for user replacement are supplied in polyethylene bags displaying the following label:...
  • Page 52 General information AF24173 ANTI-FOULANT DEVICE FOR USE ONLY WITH SEA-BIRD ELECTRONICS' CONDUCTIVITY SENSORS TO CONTROL THE GROWTH OF AQUATIC ORGANISMS WITHIN ELECTRONIC CONDUCTIVITY SENSORS. ACTIVE INGREDIENT: Bis(tributyltin) oxide ..52.1% OTHER INGREDIENTS: ....47.9% TOTAL .

  • Page 53: Service And Support

    General information USER SAFETY RECOMMENDATIONS Users should: • Remove clothing immediately if pesticide gets inside. Then wash thoroughly and put on clean clothing. • Follow the manufacturer's instructions for cleaning and maintaining PPE. If no such instructions for washables, use detergent and hot water.

  • Page 54: Waste Electrical And Electronic Equipment

    General information 5. Write the RMA number on the outside of the shipping case and on the packing list. 6. Use 3rd-day air to ship the sensor back to the manufacturer. Do not use ground shipping. 7. The manufacturer will supply all replacement parts and labor and pay to send the sensor back to the user via 3rd-day air shipping.
  • Page 56 Sea-Bird Electronics 13431 NE 20th Street Bellevue WA 98005 U.S.A. (425) 643-9866 © Sea-Bird Electronics, Inc., 2020. All rights reserved. Printed in U.S.A. *SeaFETV2SeapHOxV2*...
