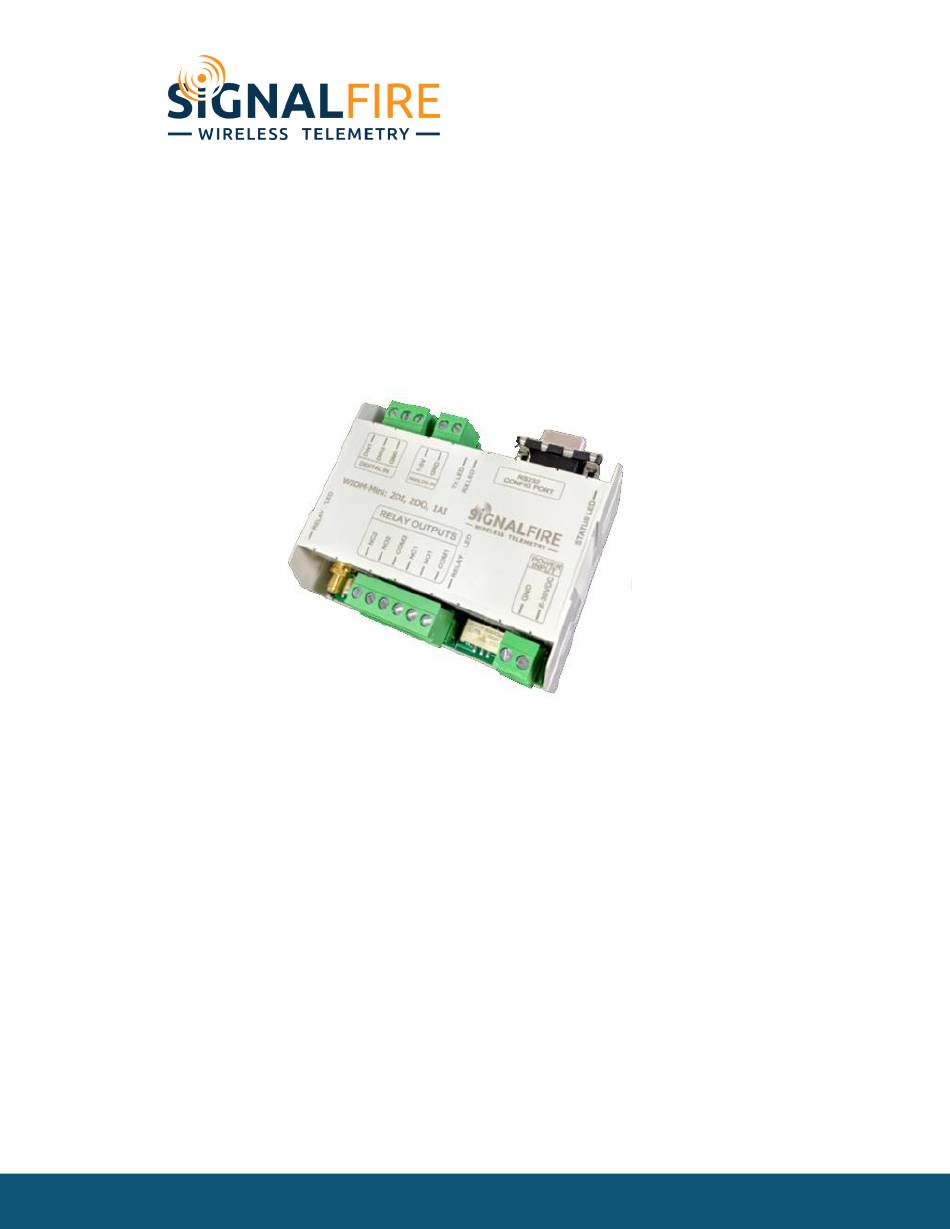

Wireless I/O Module Mini
SignalFire Number: WIOM-MINI-IOMIX1-xxxx
The SignalFire Wireless I/O Module Mini can send analog and digital I/O to a SignalFire Gateway or
mirror the digital I/O wirelessly another Wireless I/O Mini Module, acting as a wire replacement.
The SignalFire Wireless I/O Module Mini has the following features:
-
1 Analog input (1-5V)
-
2 Digital inputs
-
2 Relay outputs (2 SPDT)
-
Wide range DC power input, 6-36 VDC
-
Low power consumption
-
DIN rail mount with pluggable screw terminal blocks
-
Status LEDs
Rev 1.5
Interface Manual
SignalFire Telemetry
1
Advertisement
Table of Contents
Related Manuals for SignalFire Wireless I/O Module Mini
Summary of Contents for SignalFire Wireless I/O Module Mini
- Page 1 Wireless I/O Module Mini SignalFire Number: WIOM-MINI-IOMIX1-xxxx The SignalFire Wireless I/O Module Mini can send analog and digital I/O to a SignalFire Gateway or mirror the digital I/O wirelessly another Wireless I/O Mini Module, acting as a wire replacement. The SignalFire Wireless I/O Module Mini has the following features:...
-
Page 2: Specifications
Radio Frequency 902-928MHz ISM Band, FHSS radio, RP-SMA connector FCC and IC Certified. Contains FCC ID: W8V-SFTS500, IC: 8373A-SFTS500 Compliance Certified for use in Class I, Division 2, Groups A, B, C, D. Temperature Code T5 Dimensions Rev 1.5 SignalFire Telemetry... - Page 3 AVERTISSEMENT - Le module IO sans fil doit être installé dans une enceinte appropriée pour l'environnement prévu WARNING – All wiring methods must be in accordance with the NEC AVERTISSEMENT - Toutes les méthodes de Essorez doivent être en conformité avec la Rev 1.5 SignalFire Telemetry...
-
Page 4: Connections And Components
Antenna The antenna port is standard RP-SMA connector. Connect this port to a suitable 900MHz antenna. SignalFire can supply a variety of antennas for use with the modules. Analog Input The analog input operates as a passive voltage input (1-5V). - Page 5 3 seconds. 3 Blinks Strong Signal 2 Blinks Good Signal 1 Blink Weak Signal Each relay output also has a green LED which turns on while the relay is energized. Rev 1.5 SignalFire Telemetry...
-
Page 6: Modes Of Operation
Modes of Operation The Wireless I/O Module Mini can be run in two software settable “system modes”: Node, and Point-to-Point. The ToolKit has a Radio Mode dropdown that can be set to either Node or Gateway. For the WIOM Minis to operate in Node mode, all WIOM Minis on the network must be set to Node and they will communicate with a SignalFire Gateway. - Page 7 Point-to-Point Mode. Inputs from one module are mirrored as outputs on the other When set to Point-to-Point mode, the WIOM Minis will not be viewable through a SignalFire Gateway as they will be on their own network. The module that is set to Gateway will be locked to Slave ID 1.
- Page 8 Network Settings The network is set using the SignalFire Toolkit. To join a SignalFire network in Node mode, all Wireless I/O Module Minis must have the same Radio Network, Radio Network Group, and Corporate ID/Encryption Key as the Gateway. For two Wireless I/O Module Minis to communicate in Point-to- Point mode, they must share the same Radio Network, Radio Network Group, and Corporate ID/Encryption but not share those settings with any other SignalFire network.
-
Page 9: Advanced Settings
Message Failsafe Timer – This is similar to the previous timer, but this indicates the time since a valid Modbus coil write message has been sent from the Modbus master through the SignalFire Gateway. If used, this timeout must be set higher than the Modbus coil write frequency of the Modbus master device. - Page 10 DI2: Instantaneous Frequency (Hz x 10) 03, 04 Read Only 1116 41117 DI1: Counts per minute (x 10) 03, 04 Read Only Technical Support and Contact Information SignalFire Telemetry 140 Locke Dr, Suite B Marlborough, MA, 01752 (978) 212-2868 support@signal-fire.com Revision History Revision Date Changes/Updates...
