Add-On Device Quick Start Guide
Mini Outdoor
Full HD Camera
Add-on Device
Quickstart Guide
Model No. IPC2203

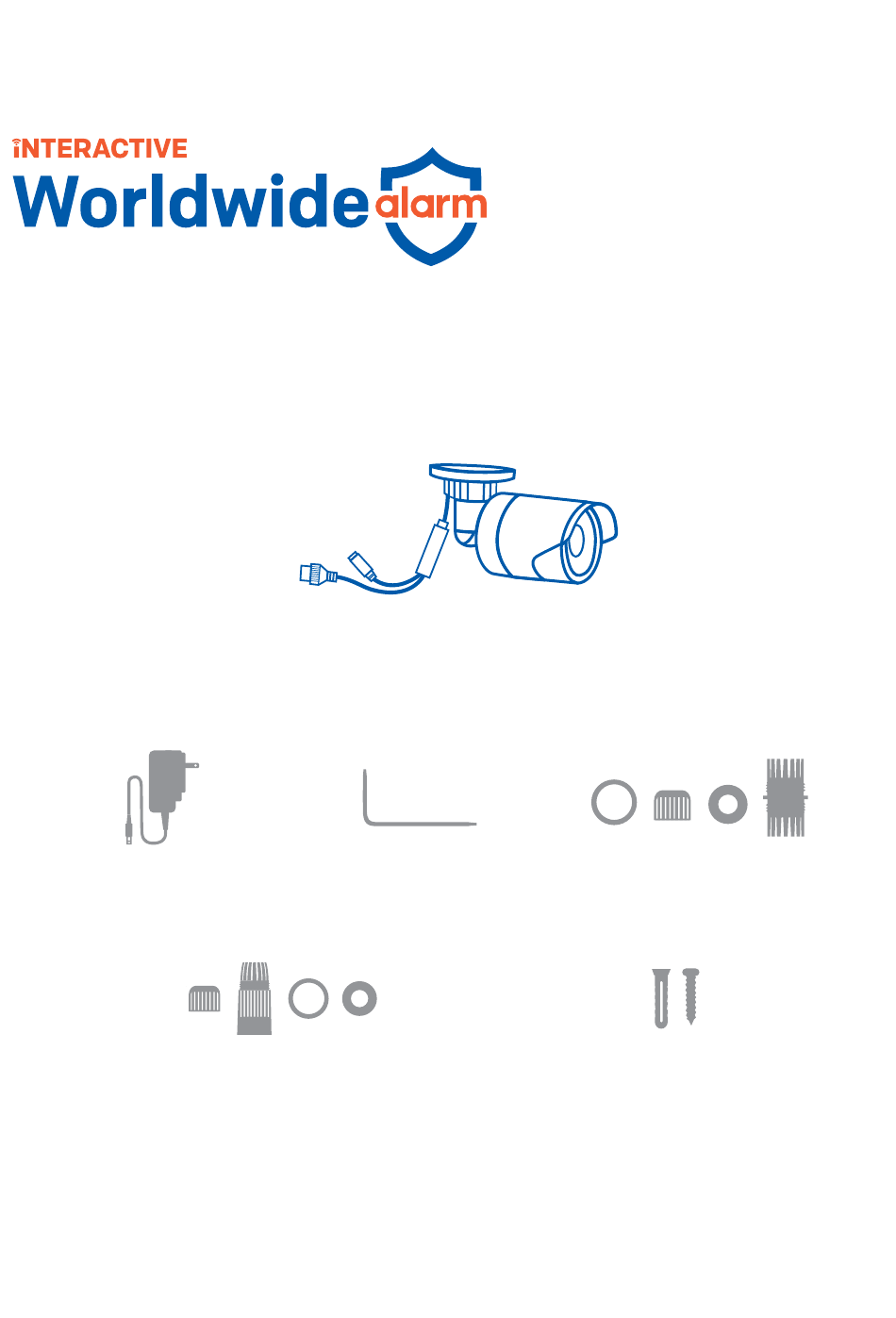

What's inside:
1x Mini Outdoor Full HD Camera
1x Power Adapter
1x Wrench
Power Waterproof Cases
Mounting
Cable Waterproof Cases
Accessories
All WWAlarm add-on devices have to work with WWAlarm systems
Advertisement
Table of Contents
Related Manuals for WWAlarm IPC2203
Summary of Contents for WWAlarm IPC2203
- Page 1 Full HD Camera Add-on Device Quickstart Guide Model No. IPC2203 What’s inside: 1x Mini Outdoor Full HD Camera 1x Power Adapter 1x Wrench Power Waterproof Cases Mounting Cable Waterproof Cases Accessories All WWAlarm add-on devices have to work with WWAlarm systems...
- Page 2 Step 1: Assemble your device and accessories 1 . Unpack your camera and accessories. 2. Pair the device with the Security Shuttle within 1-10 feet to make sure the connection is working well. Power supply interface Ethernet interface * Ethernet cable is not included. 1-10 ft...
- Page 3 Step 2: Power on the Camera and connect it to the system 1 . Insert the microSD* card into the Camera Card Slot before powering up the Camera. You can also purchase a microSD Card at a later time. WPS/RESET microSD Card Slot * NOTE - microSD Card not included.
- Page 4 Option 1: Wireless Connect the included power adapter to the Camera’s power supply interface. Network data Electrical Power Router Option 2: Wired Connect the PoE Injector to your home router with an Ethernet cable. Using the other Ethernet cable, connect the PoE Injector to the Camera's Ethernet interface.
- Page 5 Add-On Device Quick Start Guide Step 3: Add a device 1 . Open the WWAlarm app, tap on the the menu button " " and select “Device Management”. 2. Press the add button ‘+’ next to Camera List. 3. Follow the app instructions to scan the QR code located on the device.
- Page 6 Camera to the place where you want it to be mounted and plug it in. 2. Wait until you see live streaming video from the WWAlarm app before mounting. Step 5: Installation Both wall mounting and ceiling mounting are suitable for the Camera.
- Page 7 2. Route the corresponding cables. 3. Secure the camera to the wall with the supplied screws. Secure the Camera to the Wall 4. Adjust the surveillance angle. •Loosen the adjusting nut. •Adjust the pan direction [0° to 360°]. •Adjust the tilt direction [0° to 90°]. •Rotate the camera [0°...
- Page 8 Troubleshooting Tips If you’re having trouble adding your device, you may need to reset it. • Use the wrench to open the cover which is located on the bottom of the camera. • Make sure the camera is powered off first. Press down and hold the RESET button for around 10 seconds until the IR LED goes off, and then power on the camera.
