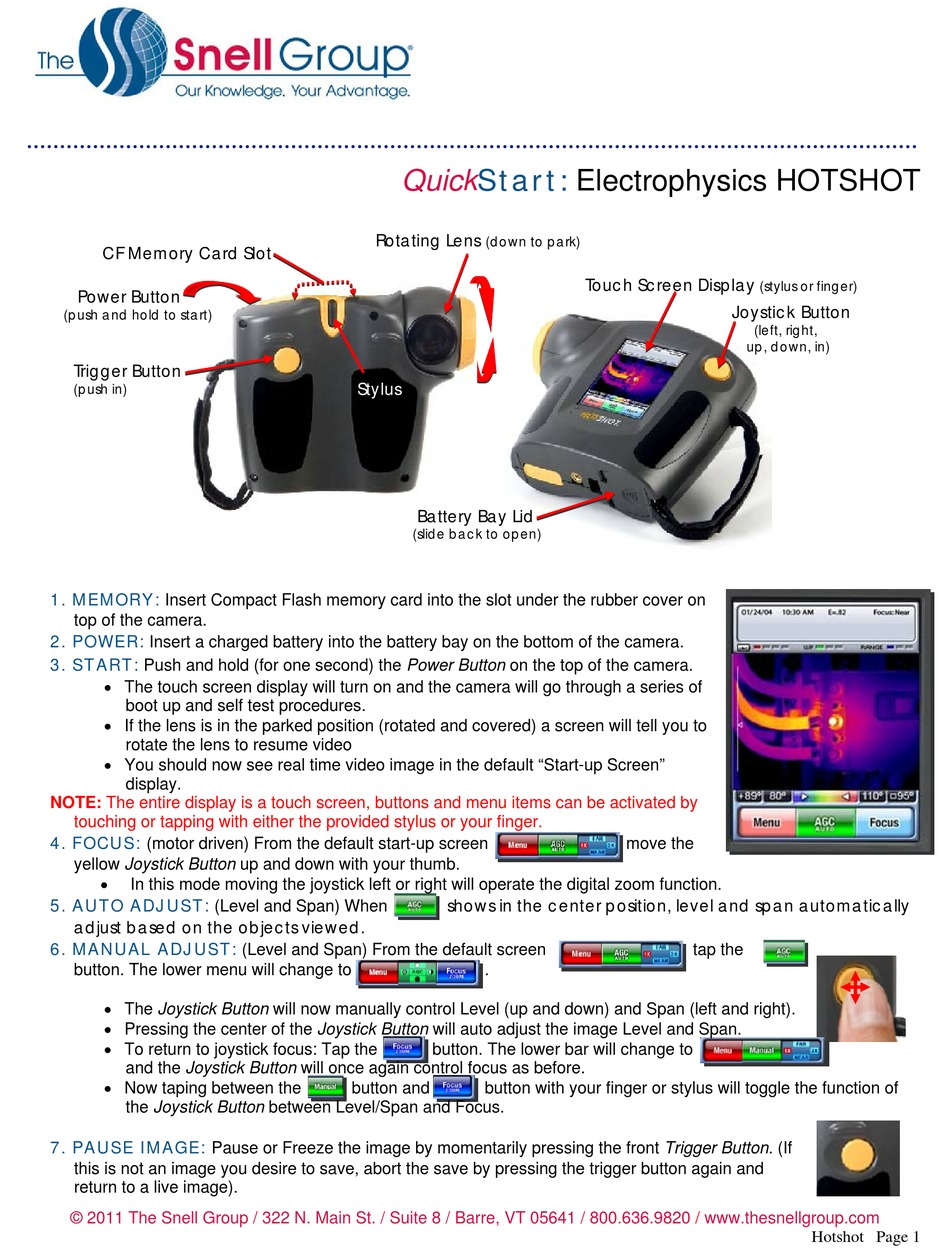

Electrophysics HOTSHOT Series Quick Start

CF Memory Card Slot
Power Button
(push and hold to start)
Trigger Button
(push in)

1. MEMORY:

Insert Compact Flash memory card into the slot under the rubber cover on
top of the camera.

2. POWER:

Insert a charged battery into the battery bay on the bottom of the camera.

3. START:

Push and hold (for one second) the Power Button on the top of the camera.
 The touch screen display will turn on and the camera will go through a series of
boot up and self test procedures.
 If the lens is in the parked position (rotated and covered) a screen will tell you to
rotate the lens to resume video
 You should now see real time video image in the default "Start-up Screen"
display.
NOTE: The entire display is a touch screen, buttons and menu items can be activated by
touching or tapping with either the provided stylus or your finger.

4. FOCUS:

(motor driven) From the default start-up screen
yellow Joystick Button up and down with your thumb.

In this mode moving the joystick left or right will operate the digital zoom function.

5. AUTO ADJUST:

(Level and Span) When
adjust based on the objects viewed.

6. MANUAL ADJUST:

button. The lower menu will change to
 The Joystick Button will now manually control Level (up and down) and Span (left and right).
 Pressing the center of the Joystick Button will auto adjust the image Level and Span.
 To return to joystick focus: Tap the
and the Joystick Button will once again control focus as before.
 Now taping between the
the Joystick Button between Level/Span and Focus.

7. PAUSE IMAGE:

Pause or Freeze the image by momentarily pressing the front Trigger Button. (If
this is not an image you desire to save, abort the save by pressing the trigger button again and
return to a live image).
© 2011 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT 05641 / 800.636.9820
QuickStart:
Rotating Lens
Stylus
Battery Bay Lid
(slide back to open)
(Level and Span) From the default screen
button and
Electrophysics HOTSHOT
(down to park)
Touch Screen Display
shows in the center position, level and span automatically
.
button. The lower bar will change to
button with your finger or stylus will toggle the function of
(stylus or finger)
Joystick Button
(left, right,
up, down, in)
move the
tap the
/ www.thesnellgroup.com
Hotshot Page 1
