GHIELMETTI GMS 3164 Dante Manual

Audio monitoring device for display, listen and observe audio over ip signals from a dante network
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dante Monitoring System
GMS 3164 Dante
Manual
Edition 02/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMS 3164 Dante and is the answer not in the manual?

Questions and answers

Summary of Contents for GHIELMETTI GMS 3164 Dante

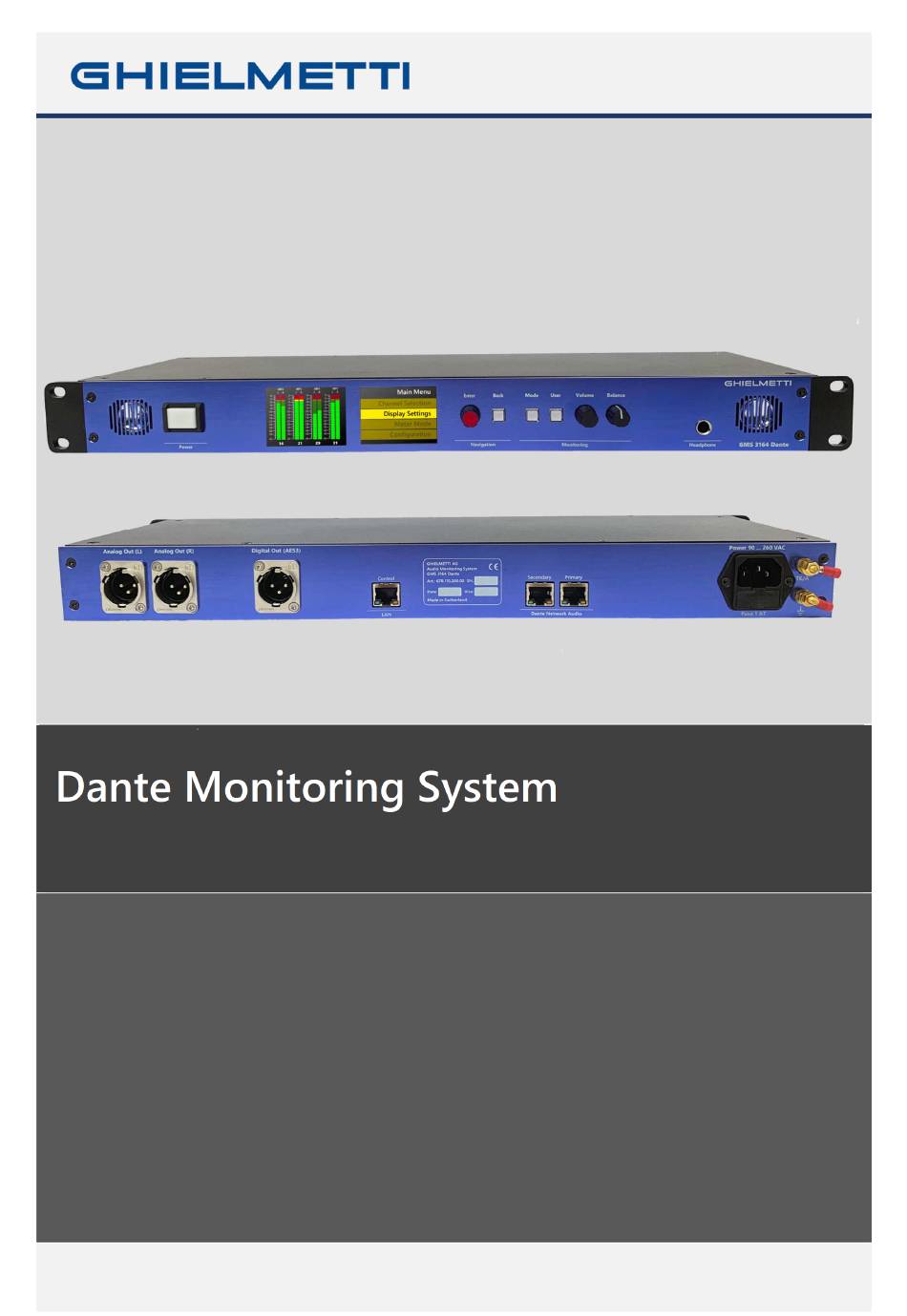

  • Page 1 Dante Monitoring System GMS 3164 Dante Manual Edition 02/2020...

  • Page 3: Table Of Contents

    Radio buttons (1 off n) with value ............................26 6 Remote manual ....................................27 6.1 Open web browser ................................27 6.2 Remote dialog ..................................27 6.2.1 Monitoring dialog ....................................28 GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 3 of 37...
  • Page 4 6.3 SW Update ....................................31 6.4 Dante Firmware Update ..............................33 7 Standards and approvals ................................35 7.1 CE Declaration ..................................35 7.2 Standards....................................35 8 Technical data ....................................36 GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 4 of 37...

  • Page 5: Introduction

    1 Introduction GMS 3164 Dante is a monitoring and metering device that can display up to 64 AoIP channels from the Dante network. GMS 3164 Dante can be operated with its front elements on the device («Local-GUI » with display and buttons) and remotely through a WEB browser («Web-GUI») for monitoring meters.

  • Page 6: General Description

    Dante-Controller. 2.1 Front Side GMS 3164 Dante is a 19”, 1RU device with steel and aluminium body. Assembly depth is 150 mm. 2.2 Back side GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020...

  • Page 7: Gms 3164 Dante - System

    3 GMS 3164 Dante - System « GMS 3164 Dante -System» includes the GMS 3164 Dante - Hardware (Embedded Hardware), GMS 3164 Dante - Firmware (Embedded Software) and GMS 3164 DANTE-Web-GUI-Software (Internet- Browser-Web pages). System overview GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020...

  • Page 8: Installation And Start-Up

    Dante network and all active channels will be displayed. GMS 3164 Dante can be used locally (Cap. 6) or remotely over the web browser (for best performance with Google Chrome). Main supply Technical 90 …...

  • Page 9: Manual Operation On Device

    „back“ button you can skip the boot screen. On the bottom of the start-up screen, there is a progress bar, which shows the progress of start-up procedures. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 9 of 37...

  • Page 10: Controls

    With push function to select the output (intern speaker / headphone, analog out, digital out) Balance knob 5.2.3 (intern speaker / headphone, analog out, digital out) User button 5.2.4 Standard function: mute. Optional programable for other functions. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 10 of 37...

  • Page 11: Mode Button

     Push (normal)  1 step back in settings  Leave the actual screen  Push (>2 sec)  From any screen/menu  back to the channel view GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 11 of 37...

  • Page 12: Audio Monitoring

     Speakers and headphone (Int)  Analog Out (Aout)  Digital Out (Dout) Balance - knob  Turn  Balance for the active output GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 12 of 37...

  • Page 13: Meter Mode

    For the metering of either 16, 32 or 64 channel both screens are in use. In case you call-up the settings menu of the device, this will be shown on the right screen while the left screen is still in use for monitoring. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 13 of 37...

  • Page 14: Status Information

    Dante Network Primary / Secondary (grey: no communication with Brooklyn Module, green: active, red: inactive)  GMS3164-xxyyzz: Device name from GMS 3164 Dante Monitor (xxyyzz: last 3 Bytes from MAC-Address)  nn %: Actual value of the volume (Int, Aout, Dout). Active output can be chosen by pressing the volume knob.

  • Page 15: Channel Selection

    Failure, no channel connection Blue: Channel is connected to the mixer 5.5.2.1 Detail information To display the detail information about the selected channel(s), press the Enter button GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 15 of 37...
  • Page 16 In Audio Meter Info window, following information is listed: Name of the input channel Name of the connection: in the format channel@device Status: of the connection Format: sample rate / decoding GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 16 of 37...

  • Page 17: Menu Setup

    5.6 Menu Setup Setup Structure 5.6.1 The user interface is made from different windows, which depends on the selected function or the status GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 17 of 37...

  • Page 18: Main Menu

    Fix. Dante Channel: selected channel will be played (Channel 1,2, … or 64) Mixer: selected mixer will be played (mixer 1,2, … or 16) GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 18 of 37...

  • Page 19: Analog Out

    (groups in the view). Mode: Configuration of the level meter mode (Peak Hold or Peak only) Scale: display of the level meter unit: dBFS, BBC, nordic GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 19 of 37...

  • Page 20: Layout - Display Number Of Channels

    Show Dante input channel on left meter. Show mixer channel on left meter. Show Dante input channel on right meter. Show mixer channel on right meter. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 20 of 37...

  • Page 21: Mode

    Nordic Start red [dBFS]: start value [in dBFS], where the segment turns red Start yellow [dBFS]: start value [in dBFS], where the segment turns yellow GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 21 of 37...

  • Page 22: Mixing

    Search for new devices in Dante Network 5.6.2.4.3 Connection management Connect or disconnect an input channel from GMS 3164 Dante to an Output channel on a device from Dante Network. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020...
  • Page 23 Every action must be confirmed in a dialog window. In case the action is not as desired, you can break it up by pushing the Back button. Display for „Disconnect all' GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 23 of 37...

  • Page 24: Info

    Entry of IP Address (includes system reset). Language: Change of language Reset to factory default: Reset to factory defaults. Exhibition mode: Exhibition mode (audio meters will simulate a random signal) GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 24 of 37...

  • Page 25: Dialogue

    If a value can be set, this happens normally in a separate screen (except for checkboxes and radio buttons). 5.6.4.1 Numeric value For fixing or take over a value press Enter By pressing Back you may lose the value. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 25 of 37...

  • Page 26: Ip Address

    Select Mix1 by pressing Enter once. Press Enter a second time to change the assigned mixer. Select desired signal for Speaker – Left and confirm with Enter. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 26 of 37...

  • Page 27: Remote Manual

    The initial screen is always the Monitor View. The Monitor and Setting tabs can be used to switch the view. With 'about' the info view is opened. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 27 of 37...

  • Page 28: Monitoring Dialog

    Alternative to the slide, one can press the „z“ key on the keyboard and then the cursor key “UP” for greater and “DOWN” for smaller view. The windows partition can be changed by moving the separator with the mouse. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 28 of 37...

  • Page 29: Settings Dialog

    Creating meter connections with Dante devices must be done on the GMS 3164 Dante device. Furthermore, the memory depth in minutes (0 to 10 minutes) for the timeline display can also be set.

  • Page 30: Mixer List

    Number of input channel, which are summed-up on the mixer displays all the channels of the selected mixer Group name: All mixers with the same name (chosen freely) will be grouped in the same cluster. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 30 of 37...

  • Page 31: About Dialog

    (Bootloader, Application, Web pages or a combination), however, normally a complete SW package will be loaded. Connect your device via a web browser Select ‘firmware update’ to activate the bootloader of the unit. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 31 of 37...
  • Page 32 Once the update is completed, confirmation is given that the update was done successfully and an overview page with the new version of the firmware is displayed. Please restart your device after a firmware update to activate your GMS 3164 Dante with the new software.

  • Page 33: Dante Firmware Update

    For this purpose, 'Dante Updater' must be selected in the Dante Controller. If a new Dante firmware is available for the GMS 3164 Dante, this will be indicated under 'UPDATE(S) AVAILABLE'. Several GMS 3164 Dante can be updated at the same time.
  • Page 34 Update is in progress. Do not switch off the device! Update is complete. Then switch GMS 3164 Dante off and on again. Device is now up to date. GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 34 of 37...

  • Page 35: Standards And Approvals

    7 Standards and approvals 7.1 CE Declaration 7.2 Standards The GSM 3164 Dante complies with the following standards: EN 55103-1:13 (Emission) EN 55103.2:10 (Immission) GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 35 of 37...

  • Page 36: Technical Data

    -20 °C … 55 °C Housing 19" (482.6 mm), 1 RU (44.1 mm), depth 150 mm Housing made of steel, front and back panel made of aluminium Weight 2.9 kg GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 36 of 37...
  • Page 37 +41 32 671 13 13 (Phone) +49 3371 402 754 (Phone) +41 32 671 13 14 (Fax) +49 3371 610 548 (Fax) info@ghielmetti.ch deutschland@ghielmetti.ch www.ghielmetti.ch www.ghielmetti.ch GHIELMETTI offices GHIELMETTI AG – GMS 3164 Dante - Technische Dokumentation SCH/03.02.2020 Page 37 of 37...
