USER MANUAL
MR Light RGB
RGB studio lamp
(Rev. 1.2 ENG)
axeltechnology.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR Light RGB and is the answer not in the manual?

Questions and answers

Summary of Contents for AxelTech MR Light RGB

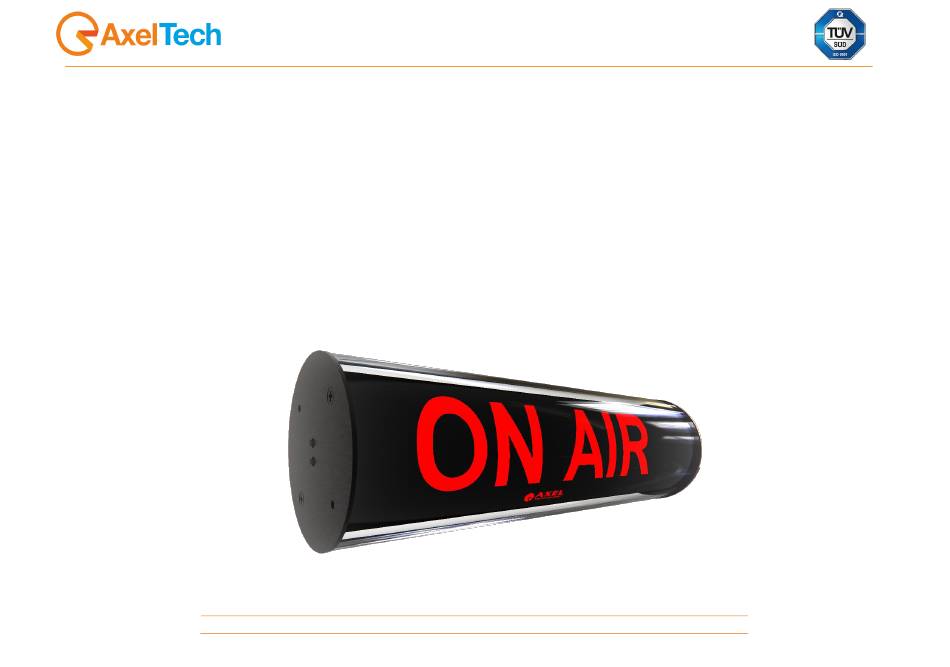

  • Page 1 USER MANUAL MR Light RGB RGB studio lamp (Rev. 1.2 ENG) axeltechnology.com...

  • Page 2: Table Of Contents

    1.1.2 WALL POSITION POWER CONNECTIONS TECHNICAL SPECS WEEE DIRECTIVE – INFORMATIVA RAEE WARRANTY DECLARATION OF CONFORMITY DICHIARAZIONE DI CONFORMITÀ MR Light RGB Flag position | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.

  • Page 3: Product Overview

    Easy setting for colour, switching mode and brightness High availability and low power consumption Power protection 12V DC power supply MR Light RGB Flag position | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.

  • Page 4: How To Mount The Mrlight Rgb

    Remove the 2 screw of external cover: Remove other 2 screw in the second cover: Remove the cylinder in plexiglass: MR Light RGB Flag position | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.
  • Page 5 Remove the opposite cover: Place the MR Light RGB in the finel position on the wall for mark the position of 3 holes( 2 for screw and 1 for cable): MR Light RGB Flag position | Errore. Per applicare Caption al testo da visualizzare in questo punto,...
  • Page 6 Re-insert the black film and the plexiglass tube in correct position: Finally insert the externa cover and lock it with 2 screw: Not used in this case MR Light RGB Flag position | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.

  • Page 7: Ceiling Position

    Place the external cover in the finel position at the ceiling for mark the position of 2 holes: Drill the ceiling and fix the cover with 2 wall plug and screw. MR Light RGB Flag position | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.

  • Page 8: Wall Position

    Remove the 2 screw of external cover: Place the external cover in the finel position at the wall for mark the position of 2 holes: MR Light RGB | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.
  • Page 9 MR Light RGB · User Guide · ENG Drill the wall and fix the cover with 2 wall plug and screw. Re-mount the MRlight RGB with 2 screw: MR Light RGB | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.
  • Page 10 Press and hold the P2 button for 3 secunds to set the MR Light RGB in show mode. SHOW MODE it will set all colours and lighting mode in loop. MR Light RGB | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.

  • Page 11: Power Connections

    2. POWER CONNECTIONS MR Light RGB have three way to connect to the power surce. The item is comeing with two power connectors ( X6, X7) type 5.5mm, and one connector ( X5 ) type 2pin terminal connector. From any stable 12v can feeds it by one of three ways and that to gave more confortable.

  • Page 12: Technical Specs

    Attention: That can not use more than one power source simultaneously! MR Light RGB can works as stand alone or can control it by 2 GPI port optocouplers (X3, X4). To active the GPI control mode, connect the comand cable to X3 or X4 by 2pin terminal connector and release the stand alone jumper.

  • Page 13: Weee Directive - Informativa Raee

    I henhold til EU-direktiv 2002/96/EF om affald af elektrisk og elektronisk udstyr (WEEE) må dette udstyr ikke bortskaffes som usorteret husholdningsaffald. Bortskaf dette produkt ved at returnere det til salgsstedet eller til det lokale indsamlingssted, så det kan genbruges. MR Light RGB | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.

  • Page 14: Warranty

    The manufacturer is not liable for damages of any kind arising from, or in connection with, the use of the wrong product. MR Light RGB | Errore. Per applicare Caption al testo da visualizzare in questo punto, utilizzare la scheda Home.

  • Page 15: Declaration Of Conformity

    DECLARATION OF CONFORMITY Manufacturer: AXEL TECHNOLOGY S.r.l. Company title: VIA C. DI SABBIUNO 6/F - 40011 ANZOLA EMILIA - BOLOGNA ITALY DECLARES UNDER ITS OWN RESPONSIBILITY THAT THE FOLLOWING EQUIPMENT MODEL: MRLIGHT RGB DESCRIPTION: Lamp, multi-coloured RGB leds IS COMPLIANT To the requirements and all characteristics enacted from Community Directive: 2014/30/UE “EMC”...

  • Page 16: Dichiarazione Di Conformità

    Ragione Sociale: VIA C. DI SABBIUNO 6/F - 40011 ANZOLA EMILIA - BOLOGNA ITALY DICHIARA SOTTO LA PROPRIA RESPONSABILITÀ CHE IL PRODOTTO MODELLO: MRLIGHT RGB DESCRIZIONE: Mr Light RGB On-Air lampada, multicolore RGB a leds RISPETTA i requisiti essenziali e tutte le caratteristiche richiamate dalla Direttiva comunitaria: 2014/30/UE “EMC”...
