Winegard TR-2000 Installation Instructions

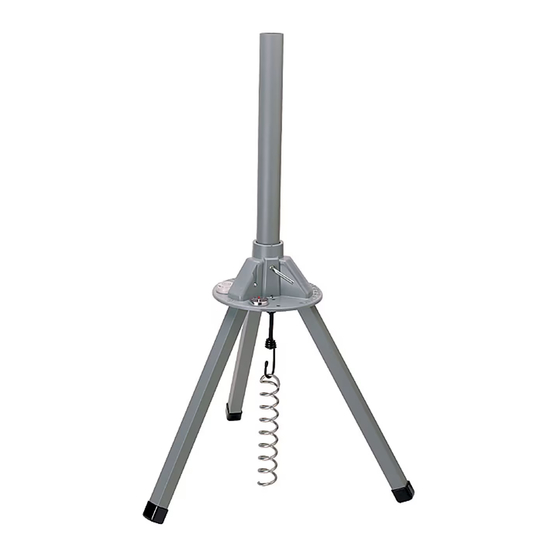

Model TR-2000/2077 Tripod/Base Mount
CAUTION: Winegard Company does not warrant this product if a mount pipe longer that 18" is used.
NOT DESIGNED FOR USE WITH RD-9046 OR PM-2000 PORTABLE SATELLITE SYSTEMS.
STEP 1: FOR FIRST TIME USE. To attach adjustment knob using 5/16-18 square nut and nut clamp,
put pole into base. Turn upside down.Place nut inside nut clamp, and drop into slot on bottom of base, making
sure the open side of the nut clamp is toward the flat side of the base, Figure 1 and 1A. Screw in adjustment
knob. For travel/storage, remove pipe.
STEP 2: To store compass when not in use, attach compass to base using velcro provided, Figure 2.
STEP 3: Secure level to base using double-sided tape (provided), Figure 2.
STEP 4: Insert spring clips into the support legs until locked in place, Figure 2.
STEP 5: Slide legs into base until locked in place.
STEP 6: After tripod is assembled, go to Operation, page 2.

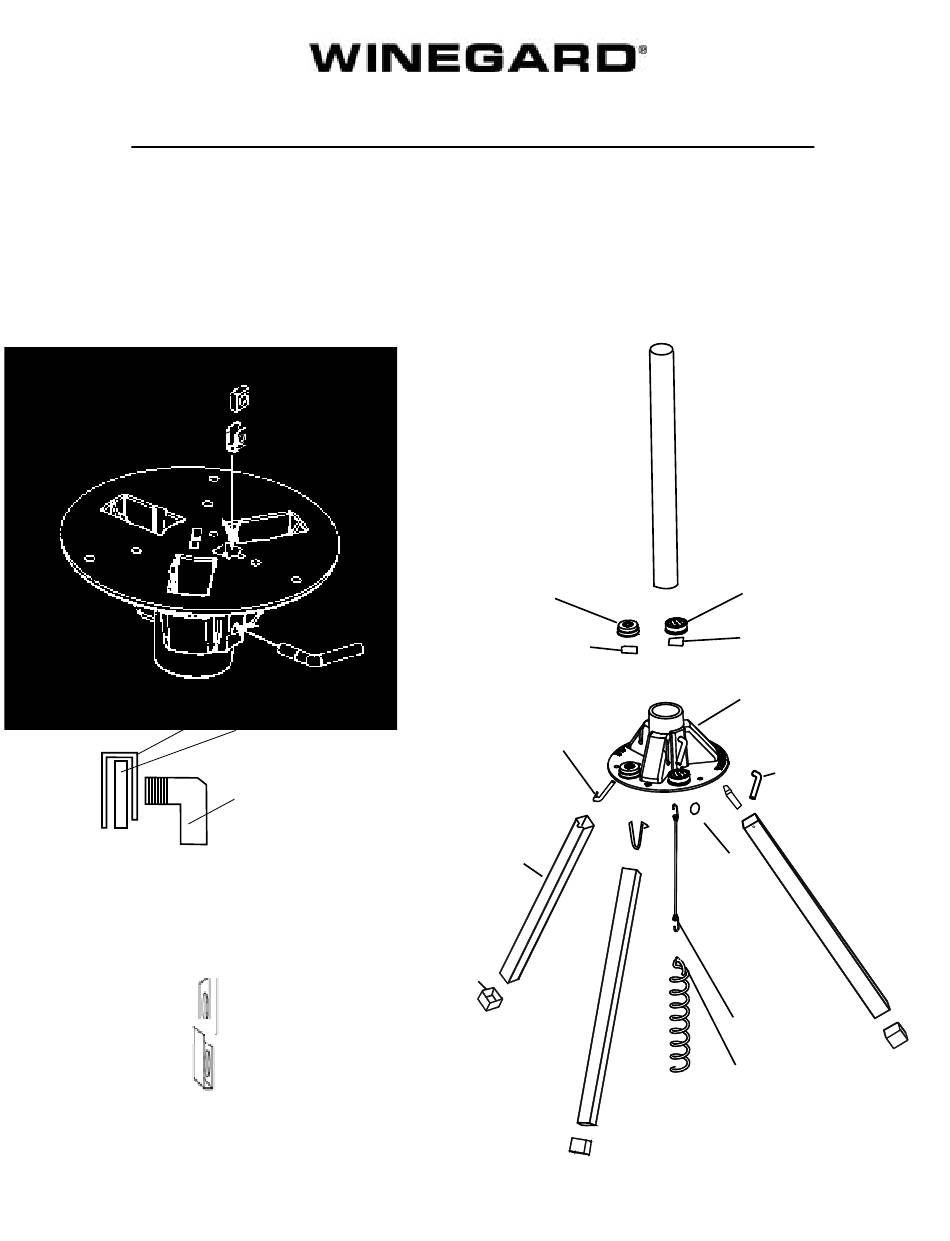

Figure 1
Nut Clamp
PN 2160336
Figure 1A
Nut Clamp
PN 2160336
5/16-18
Square Nut
PN 2160286
Adjustment
Knob
PN 2200090
Nut and Clamp detail
Winegard Company • 3000 Kirkwood Street • Burlington, Iowa 52601-2000 Printed in U.S.A. © Winegard Company, 2001 2451385 Rev2 2/12
5/16-18
Square Nut
PN 2160286
Adjustment
Knob
PN 2200090
(3) Support Leg
PN 2745602
(Does not include
rubber foot)
3) Rubber Foot
PN 2240017
18" Pipe
PN 2745603
Bubble Level
PN 2780258
Double Sided Tape
PN 2190102
(3) Spring Clip
PN 2160335
Figure 2
Compass
PN 2780259
Velcro 1"
PN 2240050
Base
PN 2200270
Adjustment Knob
PN 2200090
5/16-18
Square Nut
PN 2160286
Nut Clamp
PN 2160336
Elastic Cord
PN 2190083
Anchor Screw
PN 2162010
