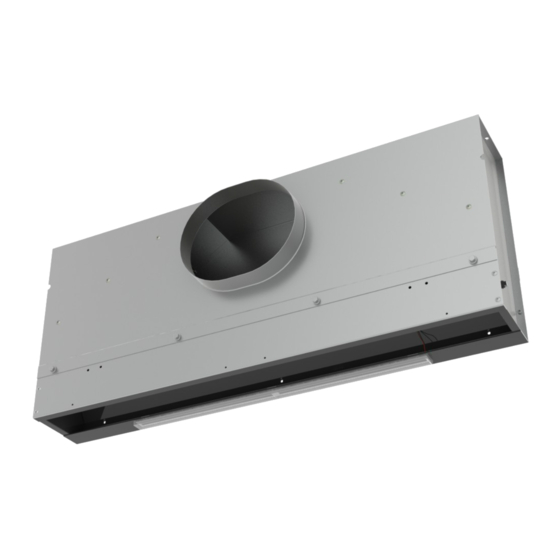

EOS/EOS-NT Startup Procedure
The EOS comes in 2 different configurations: Primary(ST) and Secondary (DR). Primary Units are designed
for stand-alone applications, but can also be used to control a Secondary Unit.
Primary Units have a wire harness connector. Secondary Units have a wire harness pigtail and can only
operate when connected to a Primary Unit.
1. Unpacking - Remove foam inserts from
face of diffuser for proper operation.
Do not move pattern controller by hand.
Damage to actuator mechanism may occur.
Titus terms and conditions apply. All prices are F.O.B. factory. Standard shipping and handling charges will be added.
All rights reserved. No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage retrieval system without permission in writing from Air Distribution Technologies.
Installation Startup Procedure
2. Caution - Do not place diffuser on the ground or
the floor with the solar cell facing down. Damage to
solar cell or holder may occur.
731793 rev E
9-30-19
Advertisement
Table of Contents
Related Manuals for Titus EOS
Summary of Contents for Titus EOS
- Page 1 Damage to actuator mechanism may occur. Titus terms and conditions apply. All prices are F.O.B. factory. Standard shipping and handling charges will be added. All rights reserved. No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage retrieval system without permission in writing from Air Distribution Technologies.
- Page 2 3 days. 6. When an operating charge has been achieved, the EOS will check temperature every 10 minutes. Once the pattern controller moves to the heating or cooling position, it cannot change again for a minimum of 30 minutes.
