Important safety instructions! Please read before connection!
DANGER! (Electrical shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the device.
Inside the unit there are components which are under high electrical voltage.
Before each use, check the device for damage or the absence of components, protective
devices or housing parts. If this is the case, the device must not be used!
Leave maintenance and repair work to a qualified service workshop or contact your
dealer. In the case of a malfunction of the device, operation must also be stopped
immediately until the device has been repaired by a specialist!
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is damaged, it
must be replaced immediately with an original spare part from the manufacturer.
Always make sure that the grounding of the device is maintained. Only use the supplied
power cables and always maintain the earthed protective contacts on the side. Make sure
that the sockets used have a properly functioning protective earth.
Failure to do so may result in fire or death due to electric shock!
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be kept out
of the reach of babies and children due to the risk of suffocation.
Ensure that children never use the appliance unattended! In addition, make sure that
children do not remove (small) parts from the device, as they could suffocate by swallowing
parts!
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a well-ventilated location away from direct heat sources,
naked flames, combustible materials, and liquids. A minimum distance of 1 m is required.
Do not tape or cover the ventilation slots of the unit, or insert objects into the unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FAME CM1

  • Page 1 ENGLISH Important safety instructions! Please read before connection! DANGER! (Electrical shock due to high voltages in the device) The housing must not be removed! There are no parts to be maintained in the device. Inside the unit there are components which are under high electrical voltage. Before each use, check the device for damage or the absence of components, protective devices or housing parts.
  • Page 2 ENGLISH Hint! (Operating conditions) Due to its structural characteristics, the device is designed for indoor operation (IP20). Never expose the unit to rain, moisture or liquids as this may cause damage. Vibrations, dust or sunlight can also cause damage, avoid them! Hint! (Power supply) This large diaphragm condenser microphone is operated with phantom power.
  • Page 3 ENGLISH Symbols on device and packaging: The lightning flash symbol warns the user of uninsulated voltages and the risk of electric shock The exclamation mark symbol draws the user’s attention to important maintains and operating instructions in the manual The lightning warns you of dangerous voltage accessible from the outside. A connection to any terminal marked with this symbol may only be made with a ready-made cable that complies with the manufacturer's recommendations or with cables installed by qualified personnel...
  • Page 4: Intended Use

    Intended use: The product FAME Audio Studio CM1 was designed for use as a microphone. The device may only be used for this purpose and in accordance with the operating instructions. Other purposes as well as operation under other operating conditions are expressly not intended and can lead to damage to property or personal injury! No liability is assumed for damage resulting from improper use.
  • Page 5: Installation

    Equipment and use: This large diaphragm condenser microphone has a three-pin XLR connector and comes with a matching bracket. Due to its characteristics, the FAME Audio CM1 is used for miking vocals, speech, guitar and percussion. Commissioning: All connections of the device should be made before switching on.
  • Page 6: Directional Characteristics

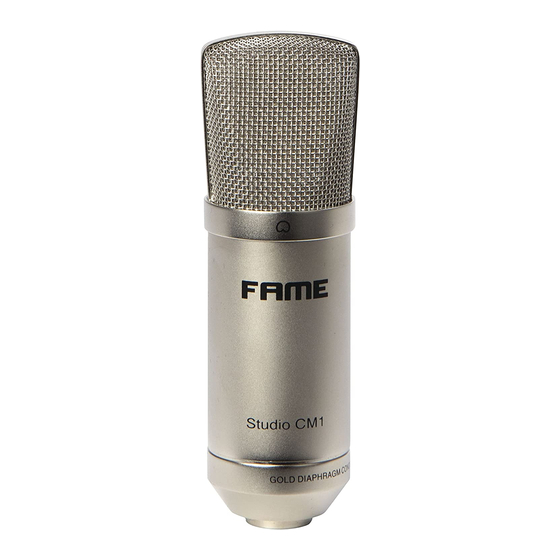

    FAME Studio CM1 - Cardioid characteristic: The FAME Studio CM1 features a cardioid characteristic that effectively cancels out or attenuates sound coming from the rear (below or 180°). This microphone is ideal for recording vocals, speech, guitar and percussion.
  • Page 7: Specifications

    ENGLISH Specifications: Model Studio CM1 Converter type Condenser Directional characteristics Cardioid characteristic Frequency range 20 Hz – 20.000 Hz Power supply Phantom power +48 V Connection XLR 3 pin Inherent noise 24 dB (A-weighted) Dimensions 50,5 x 151 mm Troubleshooting: The following overview serves as an aid for quick troubleshooting.
  • Page 8 ENGLISH Cleaning: Regular cleaning of the device from dirt and dust increases the shelf life of the product. Always disconnect the device from the power supply before cleaning it! Never clean the appliance wet! A dry microfibre cloth is best. Ventilation grilles and openings should always be cleaned of dust and dirt.
  • Page 9 ENGLISH Notes MS ID: REC0004714-000 02/2019...
