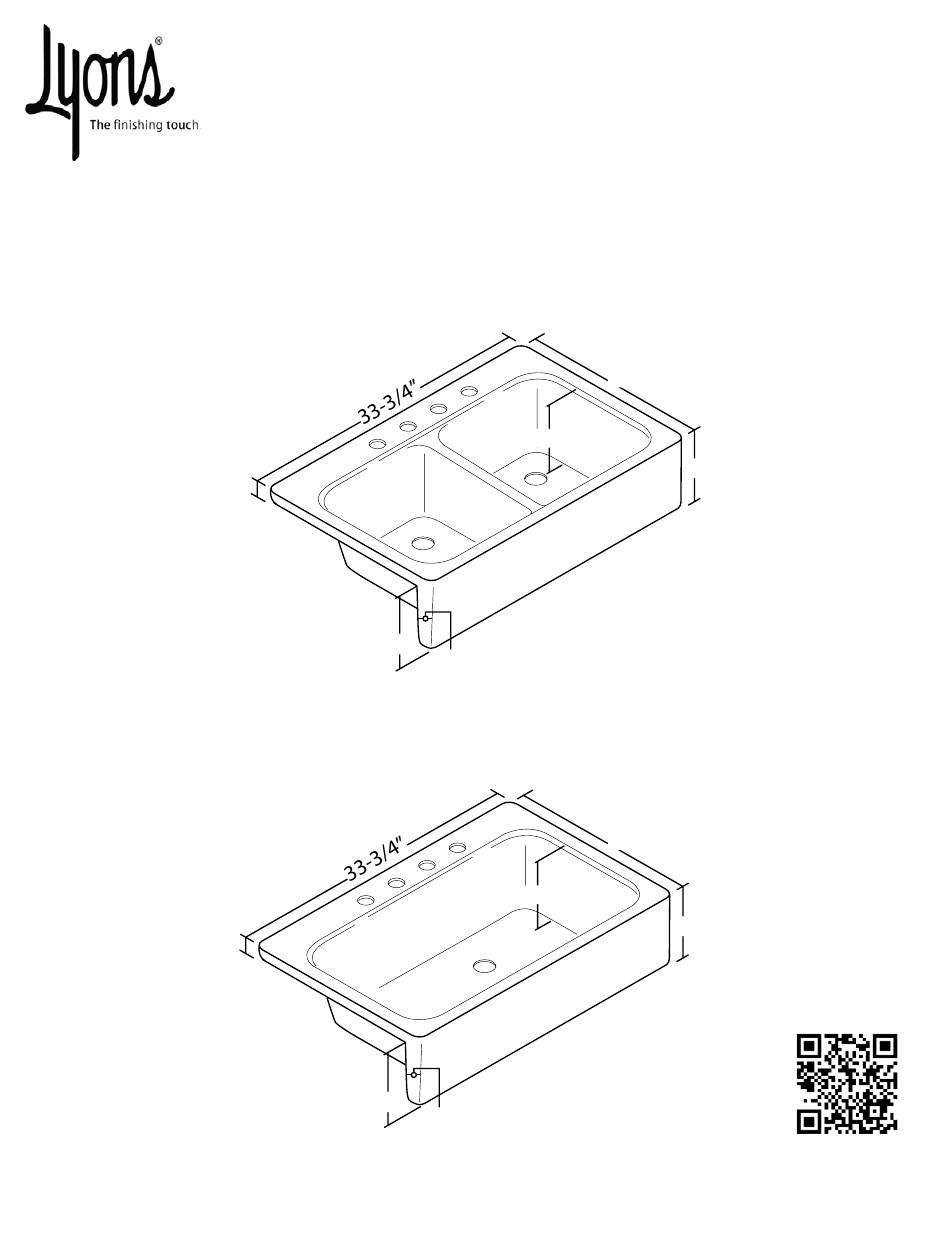

Apron Sink*
5/8"
7-3/4"
1/2"
7-3/4"
*Number of faucet holes may vary by sink style.
Subject to manufacturing tolerance of [+] or [-] 1/8"
KSxxAP
33-3/4" x 23"
10"
1-1/2"
KSxxSM
33-3/4" x 23"
10"
1-1/2"
Page 1
23"
8-1/4" Apron
23"
8-1/4" Apron
Scan code for installation video
or visit www.lyonsindustries.com
and select "How To Videos"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Lyons Apron Sink KS AP Series
- Page 1 DO NOT RETURN PRODUCT OR CONTACT STORE! FOR QUESTIONS OR CONCERNS 1-800-458-9036 lyonssupport@lyonsindustries.com Apron Sink* KSxxAP 33-3/4” x 23” 23” 10” 8-1/4” Apron 5/8” 7-3/4” 1-1/2” KSxxSM 33-3/4” x 23” 23” 10” 8-1/4” Apron 1/2” 7-3/4” 1-1/2” Scan code for installation video *Number of faucet holes may vary by sink style.
- Page 2 Countertop Cutout 32-7/16 in. 20-7/16 in. Cut notch from front of cabinet to Front of Cabinet front of countertop 5/8 in. 5/8 in. Front of Countertop 33-3/4 in. COMPLIANCE CERTIFICATIONS: TOOLS YOU WILL NEED: Tape Measure Jig Saw or Saber Saw (Fine Tooth Blade) ANSI Z124.6 AND CAN/CSA-B45.5 Carpenter’s Square Masking Tape (3")
- Page 3 Tape the countertop surface to be cut to prevent chipping and scratching. On the tape, mark the position of the cutout for the sink on your counter top using the dimensions Top View of Counter shown. The front of your cabinet (not the counter top) to the back of the cutout must be 20-7/16 in.
- Page 4 Trial fit your sink into the cutout by placing the sink at an angle. Push down on the front of the sink while holding the faucet side against the counter top. Push down firmly to make sure the sink sits flush on the counter top. Make adjustments to the cutout if needed.
- Page 5 Place the sink in the hole at an angle, faucet side first. Make sure clips on the faucet deck are angled as shown. While holding the faucet side against the counter top, push down on the front of the sink (opposite faucet holes) .
- Page 6 Apply a high grade of color-matched silicone. Apply the silicone around the sink, including the front apron. Warning: Do not use plumber’s putty. It will cause product failure and void warranty. Use a high grade silicone for all necessary locations. Connect hot and cold faucet supply, drain pipes, garbage disposal and trap assembly.
- Page 7 4 or More Years - Should the unit be otherwise than warranted, Lyons Industries, Inc will pay 10% of the sink value toward repair or exchange of a defective unit. The exchange of a unit will be limited to supplying a replacement unit or component part of comparable size and style, and does not include any cost of removal, installation or transportation.
- Page 8 2000 grit. 6. Now use 3M® rubbing compound on a soft, damp cloth. Polish using considerable pressure to produce a smooth, shinny finish. LYONS INDUSTRIES, INC. 30000 M-62 West, Dowagiac, MI 49047 phone (800) 458-9036 fax (269) 782-5159 lyonsindustries.com...
