6-67122-01 Rev B, February 2013

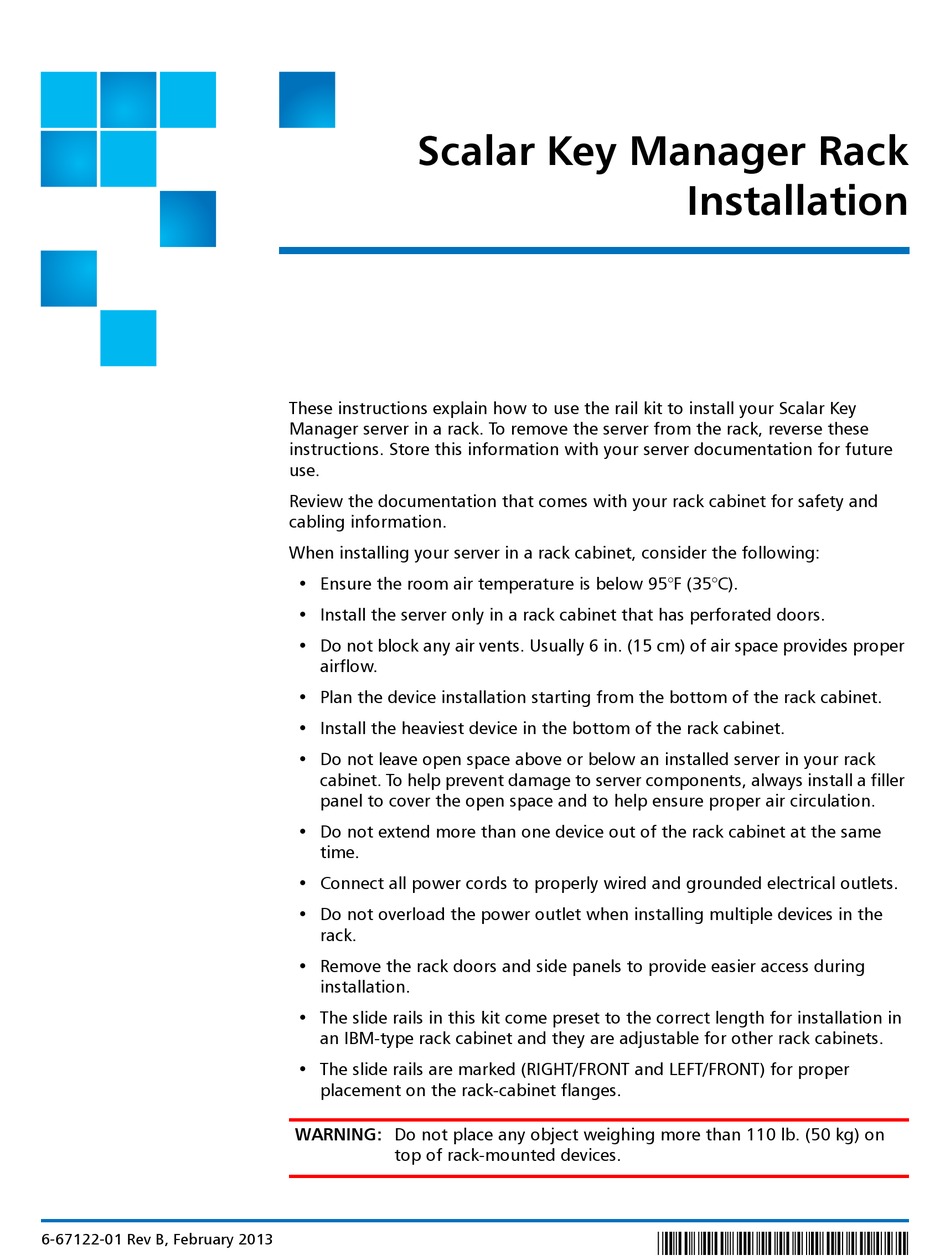

Scalar Key Manager Rack
These instructions explain how to use the rail kit to install your Scalar Key
Manager server in a rack. To remove the server from the rack, reverse these
instructions. Store this information with your server documentation for future
use.
Review the documentation that comes with your rack cabinet for safety and
cabling information.
When installing your server in a rack cabinet, consider the following:
• Ensure the room air temperature is below 95°F (35°C).
• Install the server only in a rack cabinet that has perforated doors.
• Do not block any air vents. Usually 6 in. (15 cm) of air space provides proper
airflow.
• Plan the device installation starting from the bottom of the rack cabinet.
• Install the heaviest device in the bottom of the rack cabinet.
• Do not leave open space above or below an installed server in your rack
cabinet. To help prevent damage to server components, always install a filler
panel to cover the open space and to help ensure proper air circulation.
• Do not extend more than one device out of the rack cabinet at the same
time.
• Connect all power cords to properly wired and grounded electrical outlets.
• Do not overload the power outlet when installing multiple devices in the
rack.
• Remove the rack doors and side panels to provide easier access during
installation.
• The slide rails in this kit come preset to the correct length for installation in
an IBM-type rack cabinet and they are adjustable for other rack cabinets.
• The slide rails are marked (RIGHT/FRONT and LEFT/FRONT) for proper
placement on the rack-cabinet flanges.
WARNING: Do not place any object weighing more than 110 lb. (50 kg) on
top of rack-mounted devices.
Installation
*6-67122-01 B*
Advertisement
Table of Contents
Summary of Contents for Scalar Key Manager
- Page 1 Scalar Key Manager Rack Installation These instructions explain how to use the rail kit to install your Scalar Key Manager server in a rack. To remove the server from the rack, reverse these instructions. Store this information with your server documentation for future use.
-
Page 2: Required Tools
Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 Note: If you are installing the server on a rack with threaded holes, you must use the appropriate screws (not supplied) for the rack. Note: The illustrations in this document might differ slightly from your hardware. -
Page 3: Installation Instructions
Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 Installation Instructions 1 Press on the rail-adjustment bracket on the rear of the slide rail to prevent the bracket from moving. Then, press on tab 1 and tab 2 and slide the rail- locking carrier toward the front of the slide rail until it snaps into place. - Page 4 Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 2 Securing the slide rail to the rear rack mounting flange. If you need to adjust the slide-rail length, lift the release tab and fully extend the rail- adjustment bracket from the rear of the slide rail until it snaps into place.
- Page 5 Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 3 Securing the slide rail to the front rack mounting flange. • Threaded holes: If you are installing the slide rails on a rack with threaded holes, ensure that the rail-locking carrier is open (the pins do not touch the rack mounting flange).
- Page 6 Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 4 Installing slide rails on a rack with threaded holes. If your rack does not have threaded-holes, skip this step and go to Step Install the appropriate screw for your rack (not a hex M6 screw) in both the top hole and the lower hole of the front slide rail mounting bracket to attach it to the front of the rack cabinet.
- Page 7 Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 5 Installing slide rails on a rack with non-threaded holes. If your rack does not have non-threaded holes, skip this step and go to Step Secure the slide rails to the rack by installing the M6 screws on the front and rear of each slide rail mounting bracket.
- Page 8 Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 If you do not plan to Transporting the rack cabinet with the server installed. transport the rack cabinet to another location with the server installed, skip this step. If you plan to transport the rack cabinet to another location with the server installed, remove the large screw and discard it.
- Page 9 Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 7 Align the server on the slide rails and push the server fully into the rack cabinet. Secure the server to the front mounting flanges with the captive thumbscrews. See...
- Page 10 Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 Only remove the shipping brackets if they Removing the shipping brackets. impede the server from sliding fully into the rack cabinet. Otherwise, skip this step. Press on the release tab as indicated on the shipping bracket, and remove the shipping bracket from the slide rail.
- Page 11 Scalar Key Manager Rack Installation 6-67122-01 Rev B February 2013 9 Attach cables to the rear of the server. Route the cables to the left corner of the server (as viewed from the rear) and use the cable straps to secure the cables to the slide rails.
-
Page 12: Copyright Statement
TRADEMARK STATEMENT Quantum, the Quantum logo, DLT, DLTtape, the DLTtape logo, SuperLoader, Scalar, StorNext, and DXi are registered trademarks of Quantum Corporation, registered in the U.S. and other countries. Preserving the World's Most Important Data.
