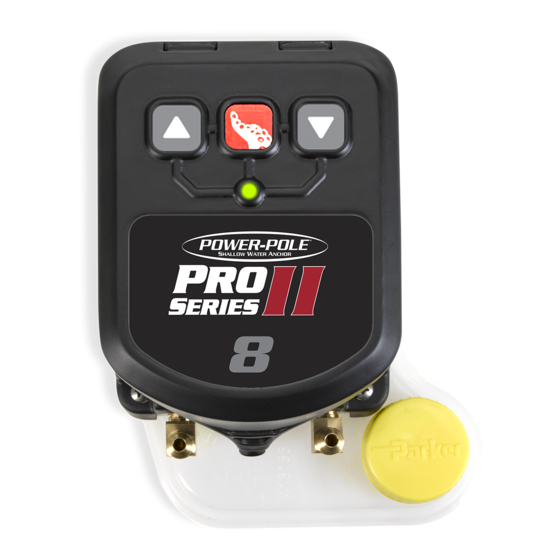

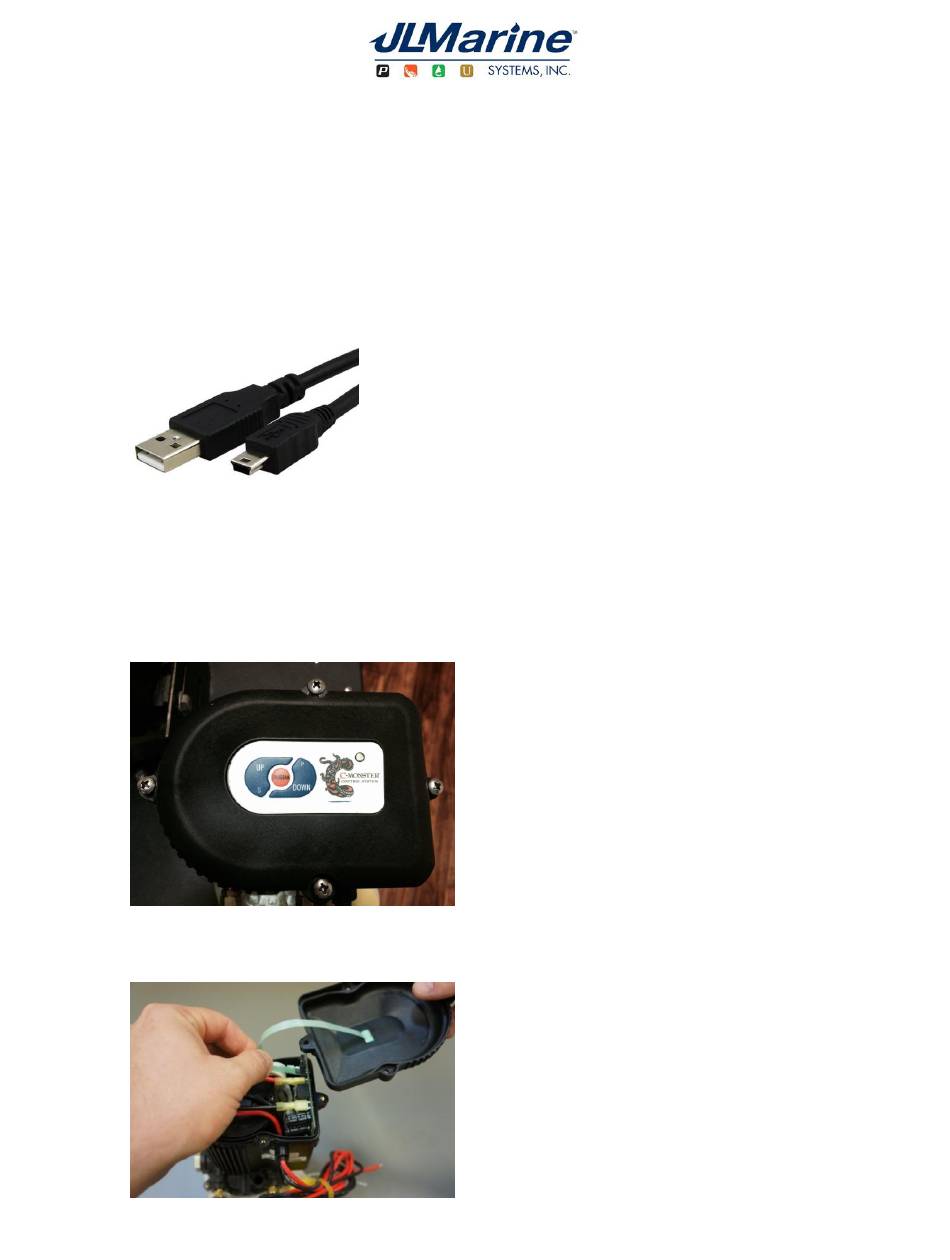

iOS Module Instructions - Power-Pole C-Monster Pumps

What you will need

1. Laptop running Windows XP or newer.
2. Philips head Screw driver.
3. Access to your pump with power.
4. A Mini USB cable (not provided with your system)

iOS module upgrade procedures

1. Download and install the iOS module update from the Power-Pole website.
2. Open the setup.exe file and go through the set up process.
3. Run the Driver Setup; Start --> All Programs --> JL Marine --> iOS--> Driver Setup
4. Remove the (4) Phillips head bolts that hold the cover on the C-Monster motor assembly.
5. With the cover removed, disconnect the membrane switch ribbon wire from the circuit board by
gently pulling on it.
