ASTRUM INSPINA SLIM Quick Installation Manual

QUICK INSTALLATION GUIDE
INSPINIA TOUCH PANELS
Version INS-QI02-201911
www.inspinia.eu
SLIM VITRE
7" 10" 7" 10"
MOBILE APP
SETTINGS
6.1.4
VERSION:
192.168.2.100
IP ADDRESS:
255.255.255.0
SUBNET:
Download INSPINIA mobile app from Press add button and scan
App Store or Google Play to your QR-code on your mobile app.
mobile device.
Define a name and save your
Make sure that INSPINIA is connected settings. You are ready!
to the network and has internet
access.
Unique device ID and QR-code will be
generated on settings page.
Inspinia Inspinia
1
4
Menu Bar
1
• Dashboard
• Smart Home
GRAND
• Scenarios
• Intercom
10" • Security
• Concierge
• Camera
• Settings
FEATURES & FUNCTIONALITY
Web
Programming
IP Intercom
Network Switch
Security Console / IP Camera
IP Phone
Bell
Valve Motion
Sensor

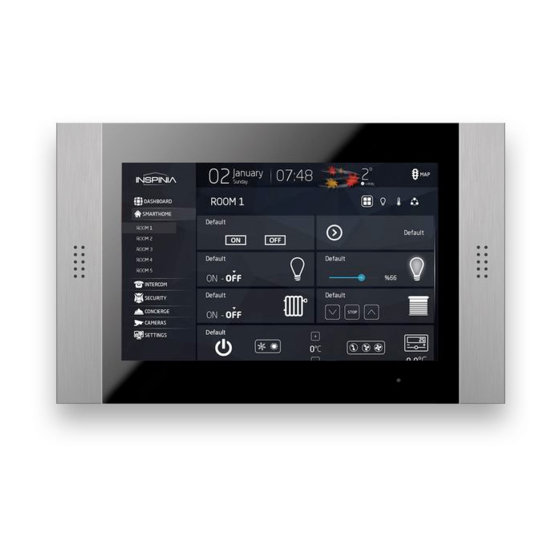

PRODUCT OVERVIEW
2
4
3
5
Information Bar Speakers
2 4
• Date
Microphone
5
• Time
• Traffic
• Weather
Dashboard
3
• News
• Messages
• Shortcuts
• Dashboard Logo
• Ambient Temperature
Actuator
PORT 2
LAN
KNX/SCS/NIO
Shutter
Thermostat Switch
PORT 1
DIGITAL I/O
VRV/VRF
Outdoor
Unit
Indoor Indoor Indoor
Fire
Unit Unit Unit
Sensor
DIMENSIONS
10" 194,6
mm
7" 149
mm
10" 307 7" 243
mm mm
10" 61
mm
7" 61
mm
10" 287 7" 223
mm mm
FLUSH MOUNTED BOX
10" 174,6
mm
7" 129
mm
10" 287 7" 223
mm mm
FLUSH-MOUNTING
Adjust slot for
the wall vertically
perfect fit
Thickness
3.8mm
wall
FRONT
SIDE
BACK
Box must align
panel box wall
