Bluetooth module for hörbert - Installation instructions
Dear customer,
with this additional module you can use hörbert together with headphones and use it as a loudspeaker e.g. for
streaming content via mobile phone. With a little manual skill, you can do the conversion yourself. Please follow the
steps listed here exactly and make sure not to damage any surrounding parts of your hörbert.
Your work surface should be soft enough not to scratch hörbert; and thick enough not to damage your table when
retooling. Make sure there is enough light to make your work easier.
Please read this manual through first to avoid surprises.
If you have any questions or difficulties, our service team will be happy to help you:
Via the contact form at
www.hoerbert.com/service
By email to
service@winzki.de
By phone at +49(0)7022 506420
A video installation guide can be found at
The conversion consists of 2 parts:
1. Removal of the existing on/off switch
2. Installation of the Bluetooth module instead of the previous switch
You need as a tool:
1x coin
1x string/thread
1x nut spanner or key SW14
1x tweezers, best with curved tip
1x cardboard washer as scratch protection for the nut of the on/off switch (included)
1x Bluetooth module incl. spacer with adhesive strip to peel off (included)

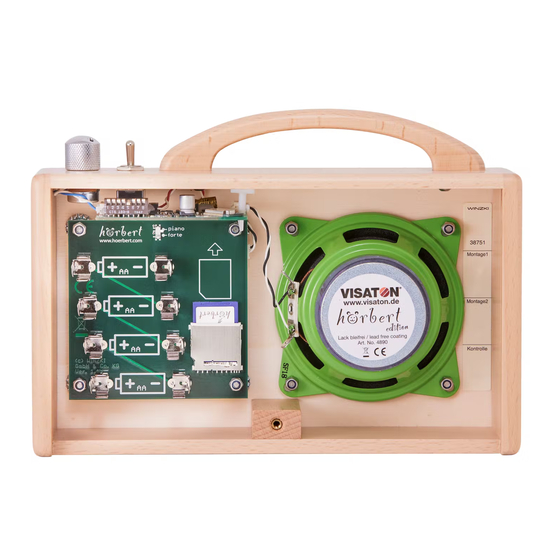

Removal of the existing on/off switch:

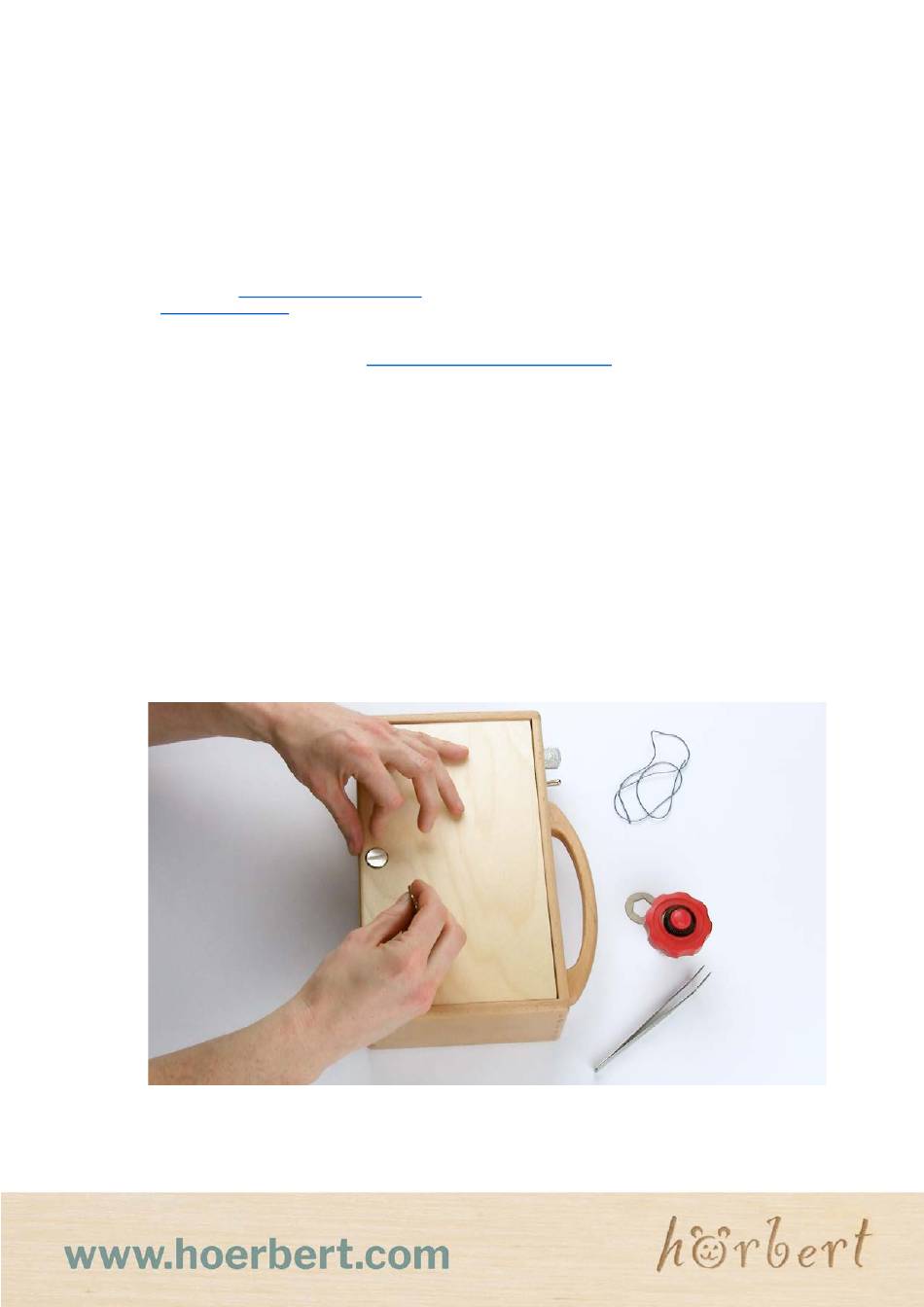

1. Open the sliding cover and put it aside. To loosen the screw you can use a coin. Turn the coin to the left to
open the screw.
https://www.hoerbert.com/videos
page 1/7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for hörbert Bluetooth module
- Page 1 1x tweezers, best with curved tip 1x cardboard washer as scratch protection for the nut of the on/off switch (included) 1x Bluetooth module incl. spacer with adhesive strip to peel off (included) Removal of the existing on/off switch: 1. Open the sliding cover and put it aside. To loosen the screw you can use a coin. Turn the coin to the left to...
- Page 2 Bluetooth module for hörbert - Installation instructions page 2/7 2. VERY IMPORTANT! Remove all batteries so that you do not accidentally destroy your hearing by a short circuit (from tools or jewellery). The thread that you run under a battery serves as an aid, in order to then pull it out.
- Page 3 Bluetooth module for hörbert - Installation instructions page 3/7 4. The switch can now be pulled out inwards. By turning it 90 degrees you can get it past hörberts electronics more easily. 5. Pull the red cable of the switch out of the hörbert electronics. It provides some resistance until the plug clicks out.
- Page 4 8. Twist the blue-white and the black-white cable by holding the plugs and twisting the slightly tensioned cable a few times. Then place the cables in the housing so that they are not in your way during installation. The cables from the Bluetooth module are already twisted at the factory.
- Page 5 (4) Then plug the blue-white cable of the volume control on the left into the Bluetooth module. The best way is to place the cable in the free space to the left of the volume control.
- Page 6 Bluetooth module for hörbert - Installation instructions page 6/7 3. Now install the module by pushing the on/off switch through the hole and carefully threading the module past the screw of the board. Make sure that you do not pinch any cable between the housing and the platinum/module.
- Page 7 Bluetooth module for hörbert - Installation instructions page 7/7 6. The installation of the Bluetooth module is finished. Now you can set the desired playing time/switch-off time with the little white switches (see operating instructions). Close hörbert again after inserting the batteries.
