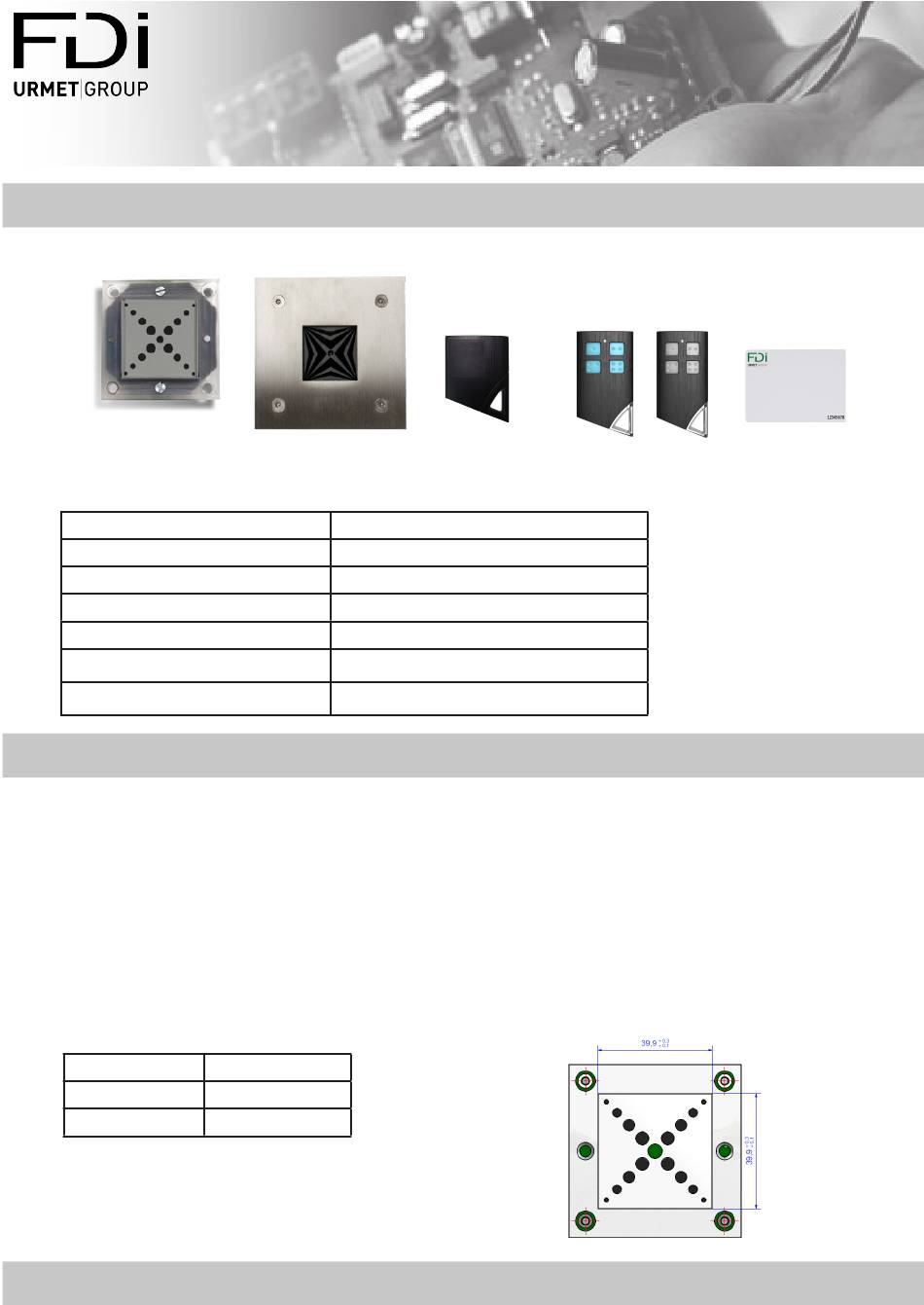

FDI MATELEC FD-020-016 Quick Start Manual

OEM READER 40X40 13.56 MHZ - 2 WIRES
PRESENTATION
This Mifare reader (13.56 MHz) is designed to be integrated into a square frame stainless steel 2.5mm.
It is compatible with IPassan controllers and Easy Door Controller.
It displays a red LED on stanbymode and a green led when the badge is authorized.
Frame dimensions
Wiring
Operating temperature
Power supply
Frequency
Reading range
Protection
INSTALLATION
Embedded version (réf : FD-020-016)
• Part number FD-020-016 includes a 316L stainless steel front frame and a backbox for the embedding of the
whole unit.
• Frame dimensions (H x L): 110mmx110mm
• Back box dimensions (H x L x P) : 94mmx94mmx30mm
Fixation by vandal proof screw
IP53 certified
Wiring
The reader is connected to the controller through 2 wires 6/10 (or Awg 24) (100 meters max).
Reader
D+
D-
DOC.50-001-685.A
Reader
40 x 40 mm
2 wires 100m 6/10 (AWG24)
-20° to + 60°
12 Vcc /50mA (provided by the controller)
13.56 MHZ
up to 2 cm (depending on the key)
Diode and transil
Controller
D+
D-
FDI MATELEC SA Route de St Symphorien 85130 Les landes Génusson - France
ACCESSORIES
Remote control
Key
Iso card
www.fdimatelec.com 1
