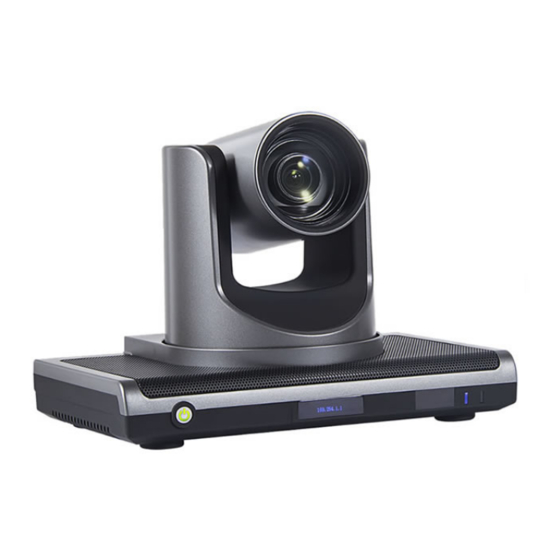

EzCam® VCS-C9
Quick Installation Guide
Dichiarazione di conformità
Il fabbricante: Ezdirect srl a unico socio
Via Nerino Garbuio (SS1 Aurelia) 54038 Montignoso (Massa Carrara)
Dichiara che i prodotti con denominazione: EzCam VCS-C9, C9S-SDI, CS9-HDMI
Sono conformi alle seguenti disposizioni legislative e direttiva EMC EU 2014/30/EU
•
•
•
•
Montignoso (Ms) 25-05-2019
videoconferenza all in one
Test standard: EN55022: 2010+AC:2011
EN61000-3-2: 2014
EN61000-3-3: 2013
EN55024: 2010+A1::2015
Advertisement
Table of Contents
Summary of Contents for Ezdirect EzCam VCS-C9
- Page 1 Dichiarazione di conformità Il fabbricante: Ezdirect srl a unico socio Via Nerino Garbuio (SS1 Aurelia) 54038 Montignoso (Massa Carrara) Dichiara che i prodotti con denominazione: EzCam VCS-C9, C9S-SDI, CS9-HDMI Sono conformi alle seguenti disposizioni legislative e direttiva EMC EU 2014/30/EU •...
-
Page 2: Copyright Statement
Copyright Statement All rights reserved by Ezdirect srl No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods. The product specifications and related information are subject to update without further notice. - Page 3 The terminal is available for mutual transmissions between audio and video, which can save conference time and cost, improve work Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it...
- Page 4 USB1 Connection to external USB devices such as USB drive, mouse and keyboard, etc. for upgrades and controls. USB2 Connection to external USB devices such as USB drive, Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it...
- Page 5 0℃～40℃ Humidity 10%～80% Environment Ambient Noise Less than 46dBA SPL Requirement Standby or Power off Status Temperature -40℃～70℃ Humidity 0%～95% Dimensions 239.4mm(W) × 148.4mm(H) × 157mm(D) Physical Features Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it...
-
Page 6: Installation
Note: mounting brackets are not included in the packing list. Fig.1 How to mount the terminal on TV sets Fig.2 How to mount the terminal on room walls Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it... -
Page 7: Cable Connections
Please get to know the rear interface details before connecting cables. Please simply take the following cable layouts for your reference and connect cables based on real conditions. Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it... - Page 8 ⚫ Audio Output: connect an external display device to HDMI OUT1 by using a HDMI cable or connect a speaker to AUDIO OUT by using a 3.5mm audio cable. Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it...
- Page 9 Green power indicator always lit Work in progress Orange power indicator always lit System turned off but power supply still on Power indicator off Power supply cut off Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it...
-
Page 10: Basic Info
2．Select “Ethernet Settings” Parameters Descriptions Network Type Manual Setup: enter the IP, mask and gateway address distributed by network administrator. IP address DHCP: Acquire IP automatically Mask Mask address Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it... - Page 11 1． Select “Settings” in the main menu and select “Account” for account setup. Select “H.323 account” and confirm for further setup. Parameters Descriptions Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it...
- Page 12 Set up SIP parameters and SIP address for remote interactions through registered numbers. 1. Select “Settings” in the main menu and select “Account” for setup. 2. Select “SIP Account” and confirm for further setup. Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it...
- Page 13 Save setups and return to setting menu The terminal can only register SIP server when SIP is active; otherwise the terminal will not be registered or log off from SIP server. Ezdirect srl a socio unico via Garbuio snc Montignoso (Ms) 0585821163 www.ezdirect.it...
