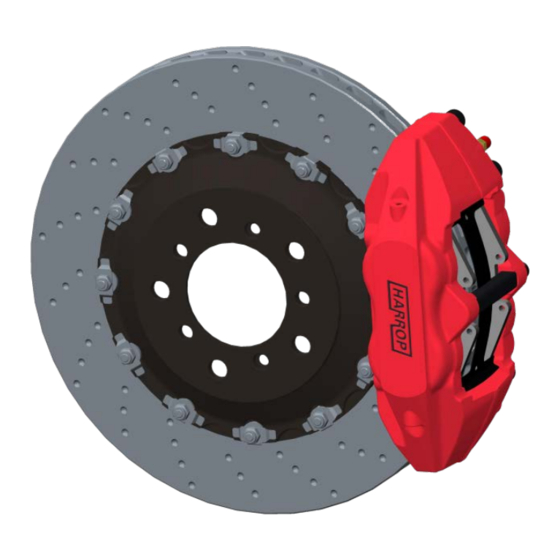

Summary of Contents for Harrop Bendix DB439

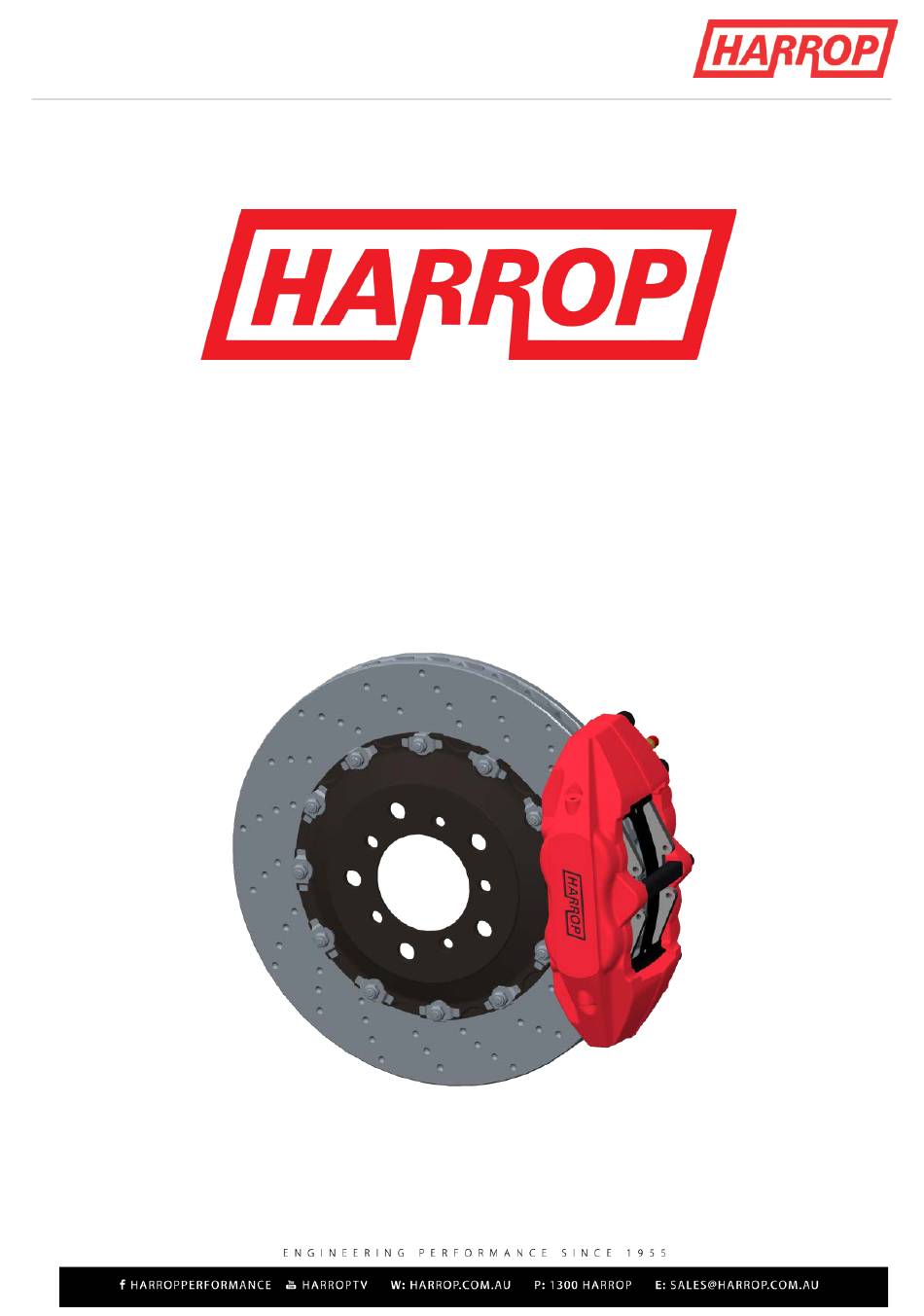

- Page 1 BMW E46 M3 FRONT BRAKE UPGRADE INSTALLATION GUIDE Installation Guide BMW E46 M3 Front Brake Upgrade Kit Page | 1 Issue: 0, Jul 2019...
- Page 2 It is the owner’s/driver’s responsibility to accept any consequences and liabilities of using the enhanced vehicle and any subsequent effect it may have. Harrop Engineering is to be held harmless and shall not be liable for any direct and/or indirect/consequential losses, costs, damages, expenses, injuries or liabilities whatsoever incurred by the owner/driver of the vehicle or other parties arising from this product, its installation and/or its operation.
- Page 3 BMW E46 M3 FRONT BRAKE UPGRADE INSTALLATION GUIDE Front Brakes 1. Remove the flexible brake hose at the end of the hard brake hose line and let the brake fluid drain into a container. 2. Remove the two caliper mounting bolts that secure the standard caliper to the front upright, slide the caliper off the rotor and set aside.
- Page 4 BMW E46 M3 FRONT BRAKE UPGRADE INSTALLATION GUIDE Caliper mounting bolt and washer Rotor Caliper Pad Retaining Bolt Anti-rattle Clip Brake Pad Brake Pads Retainer Assembled caliper with pads, anti-rattle clip and pad retaining bolt correctly seated. Note: Brake pad retainer and anti-rattle clip as shown below. Page | 4 Issue: 0, Jul 2019...
- Page 5 The new brake system should be bed-in per standard practices. • The friction material supplied with Harrop brake hardware is a ‘best fit’ in terms of brake performance, pad and rotor life with noise, vibration and harshness minimisation. Bedding New Pads and Discs •...
