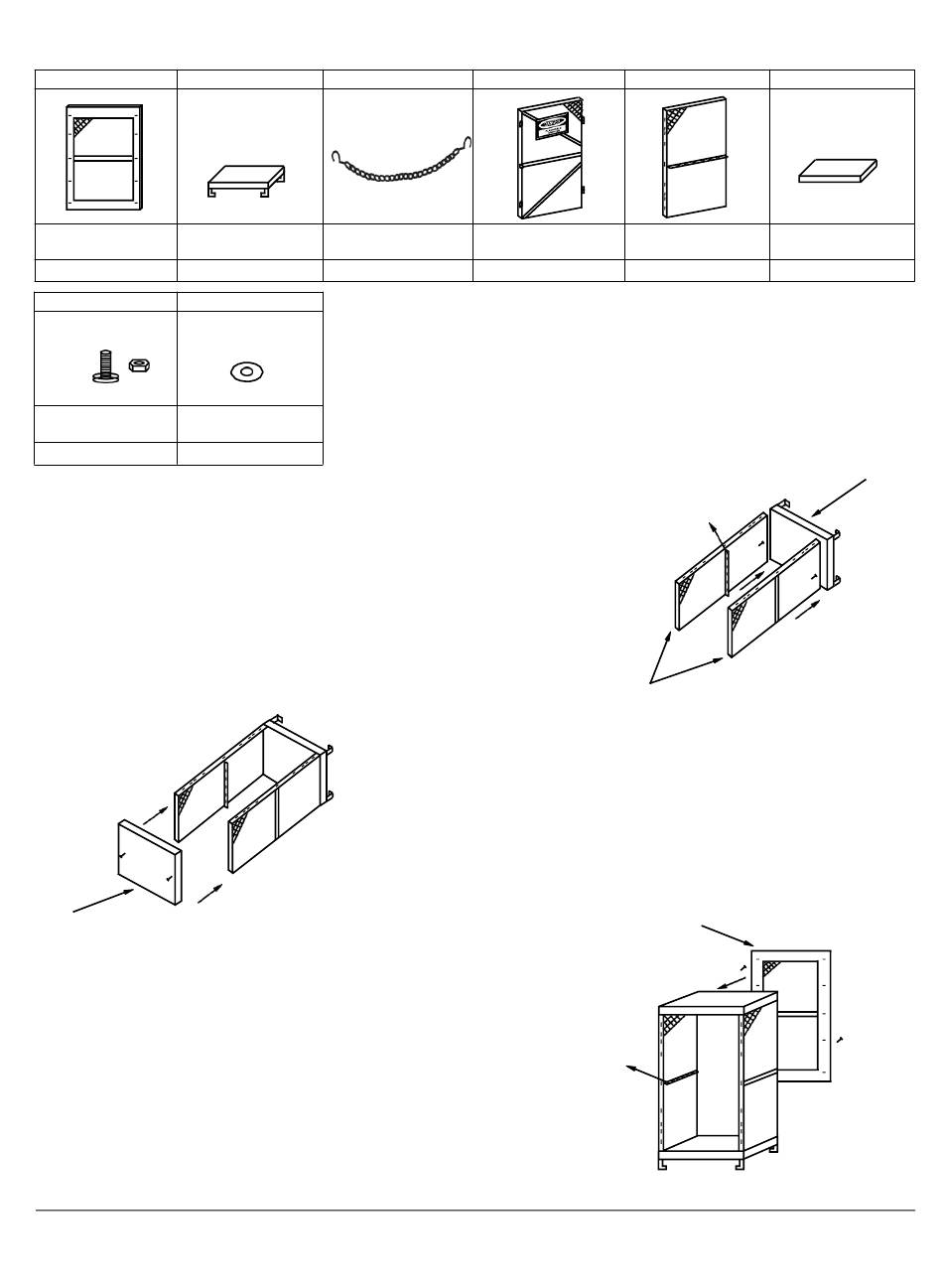

Assembly Instructions
A
Back panel
1 PC
G
1/4 " × 3/4 "
Bolt and nut
26 Pairs
*Caution: Two person assembly is recommended.
1. In an open assembly area free of obstructions, place the base (B) upright as
shown. Assemble each side panel (E) by hand-tightening the bolts, washers, and
nuts provided (G &H). Side panels should be mounted such that the flat part of the
shelf support rail will face upward.
F
3. Connect the back panel (A) to side panels (E) using bolts, washers, and nuts
provided (G & H). Ensure the unit remains square and firmly tighten the nuts.
Note: out of square assembly will prevent the door from closing properly.
DR. SAFE
"For A safe Environment!"
B
C
Base
Chain
1 PC
2 PCS
H
Washer
26 PCS

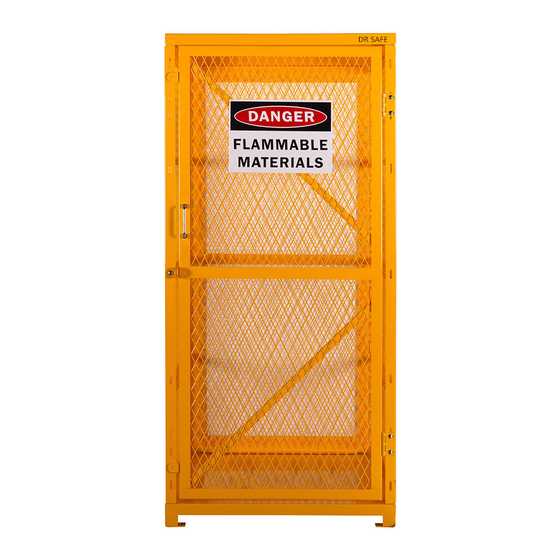

CYLINDER STORAGE CABINET
D
.
.
.
Door
1 PC
Flat edge of rail facing upward
2. Assemble the top panel (F) to the side panels (D). Hand-tighten the bolts,
washers, and nuts provided (G & H). Ensure the unit is square and firmly tighten
the bolts connecting the side panels to the base. Tighten the bolts connecting the
side panels to the top panel. Set unit upright.
Flat edge of rail facing upward
MODEL: CCV009
E
Side panel
2 PCS
E
A
F
Top panel
1 PC
B
Advertisement
Table of Contents
Summary of Contents for DR. SAFE CCV009
- Page 1 CYLINDER STORAGE CABINET Assembly Instructions MODEL: CCV009 Door Back panel Base Chain Side panel Top panel 1 PC 1 PC 2 PCS 1 PC 2 PCS 1 PC 1/4 " × 3/4 " Washer Bolt and nut 26 Pairs 26 PCS *Caution: Two person assembly is recommended.
- Page 2 CYLINDER STORAGE CABINET Assembly Instructions MODEL: CCV009 4. Attach the door (D) to the assembly using bolts, washers, and nuts provided (G & H). Note: that the hinges are configured for a left-hand swing, but mounting hardware can be removed and reversed to a right-hand swing if desired. Hand-tighten nuts, adjust the door's position such that an even gap is maintained on all sides.
